8U wall mounting patch bracket, 372x505x250 mm adjustable depth, stackable, grey (RAL 7035)
- adjustable depth
- stackable (fixing brackets included)
- Flat-pack delivery (folded)
- extensible with top-/base chassis (available seperately)
- rear side with cut-outs for cabling

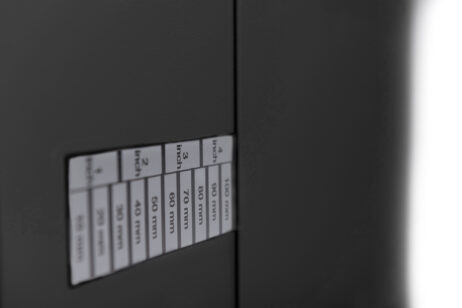

- height and depth indicators
The Wall Mounting Patch Brackets for 483 mm (19”) installations are used for open mountings of 483 mm (19”) components. They are available in several height units to suit to your individual needs of space. The brackets are adjustable in depth (from 225 mm up to 399 mm) which makes the installation of larger components possible. The rear side has a big cut-out area that can be used to guide cables which come directly from the wall.
Technical Details
- for installation of 483 mm (19”) components
- 1.1 – 1.5 strong sheet steel, powder coated
- adjustable depth (min. 225 mm; max. 399 mm)
- with four holes for wall mounting
- rear side with cut-out e.g. for cabling
- Color: light grey, RAL 7035
- Units: 8
- Load capacity: 15 kg
- Mounted: no
