4 porta 2.5 Gigabit switch, 4 PoE 10GBeth. SFP+ – Mokerlink POE-2G04210GSMX

45.300 kr.

4 x 2.5G PoE ports + 1 x 10G RJ45 port + 1 x 10G SFP port, PoE port support IEEE802.3af/at, Max 30w for one port, total 65W poe power. Support web managed and unmanaged mode, L2 function, VLAN, QoS, security, multicast, diagnosis, etc. Easy to maintain and widely used.

Ekki á lager

Vöruflokkar: , , , Merki: , , , , Framleiðandi:
Láttu aðra vita

Lýsing

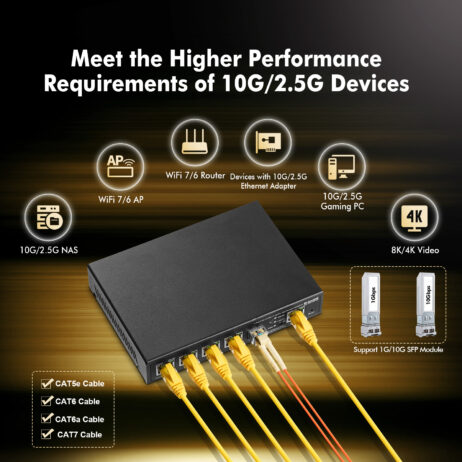

MokerLink 4 Port 2.5G PoE Managed Switch with 1 Port 10G Ethernet Port, 1 Port 10G SFP+ Slot, IEEE8023af/at PoE 65W, Metal Web Managed Fanless Small Network Switch

  • 2.5G/10G Ports: The network switch has 4 x 2.5Gigabit Ethernet Ports, compliant IEEE802.3bz (2.5G) standard, support 10/100/1000M/2.5G adaptive. 1x 10G Ethernet Ports(compatible 1G/2.5G/5G Ethernet), 1 x 10G SFP Port(compatible 1G/2.5G Module, not include SFP Module). 60Gbps backplane bandwidth, excellent data forwarding performance
  • 4 PoE Ports: Port 1 support IEEE802.3af/at/bt PoE, max 60W, port 2-4 support IEEE802.3af/at PoE, max 30W; built-in power supply makes installation easier, whole Power 65W. *Please note: not support passive 24V PoE.*
  • Web GUI management: Supports unmanaged and Web management modes, controlled by dip switches. When open the management mode, support device/port status query and various configurations: such as PoE config, VLAN, QoS, security, multicast, MAC address table, diagnosis, etc.
  • Metal Fanless: With durable metal casing, fanless design lowers energy consumption, quiet no noise and stable operation
  • Easy to Maintain：Power and port led indicator light, clearly display the running status and port rate status, installation and maintenance are very simple
  • Widely Used: Mini small size, desktop/wall-mounting design, well-suited for various environments, such as home entrainment and office, 4K video, gaming PC, NAS, PCIe Adapter, Server, WiFi 6 AP and more.

Ethernet Switch Hardware Specifications
Product Model POE-2G04210GSMX
Product Name 4-Port 2.5G PoE + 1-Port 10GE +1-Port 10G SFP+ Web Managed PoE Switch
Ethernet Port 4*10/100/1000/2500Base-TX PoE port + 1*1000/2.5G/10G SFP + 1*100/1000/2.5G/5G/10G uplink RJ45 port
Switching Capacity 50Gbps
Throughput 44.64Mpps
Packet Buffer 8.1 Mbit
MAC Address 4K
Jumbo Frame 12Kbyte
Transfer Mode Store and forward
VLANs 4096
Network protocol IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab(Gigabit Ethernet), IEEE 802.3bz(5G Ethernet), IEEE 802.3z(Gigabit Ethernet), IEEE 802.3ae(10G Ethernet), IEEE802.3x (Flow control)
PoE Protocol 1 port supports IEEE802.3af/at/bt, max 90W/port PoE out, 2-4 port supports IEEE802.3af/at, max 30W/port, PoE out
PoE Pin Af/at/bt: 12+ 45+, 36- 78- Af/at: 12+ 36-
PoE Power Budget Max. 65W
Industry Standard EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
Network Medium Multi-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Fiber Medium Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
Lighting Protection Common mode 6KV;Differential mode 2KV;ESD: Air 8KV, Contact 6KV
Working Environment Operating temperature: -10～+55°C；5%～90% RH Non coagulation, Storage temperature: -40～+75°C；5%～95% RH Non coagulation
LED Indicator PWR: Power LED/SYS LED, 1-4 Ports: Link/Act LED, 1G speed LED, 2.5G speed LED, Port 5: Link/Act LED, 2.5G speed LED, 10G speed LED, Port 6: Link/Act LED, 2.5G/5G speed LED, 10G speed LED, POE: POE on LED
Structure Size Product size: 160mm*112mm*30mm Package size: 265mm*220mm*68mm Product weight: 0.55kg Packing weight: 1.1kg
Installation Desktop/Wall Mount
Shell Black Color, Metal Shell
Power Voltage External power DC 52V1.25A, Max 65W (100-240Vac 50/60Hz 0.9A)
Package List Switch 1pcs, Specification 1pcs, Power adapter 1pcs
Software Function L2 Software Function
