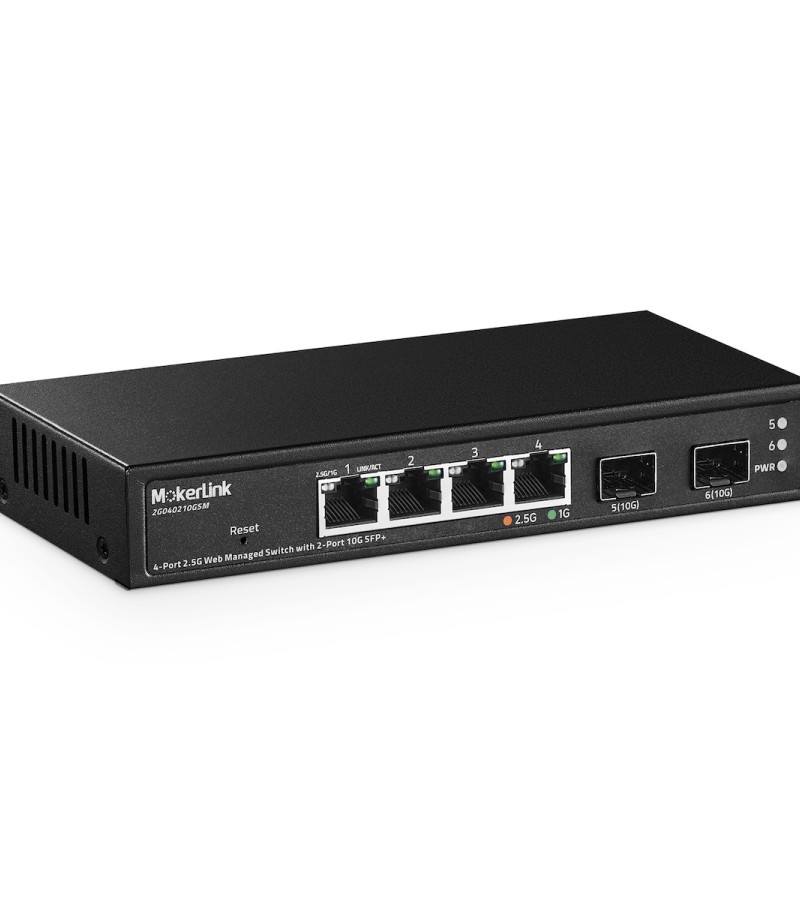

MokerLink 4 Port 2.5G Managed Switch with 2 Port 10G SFP+ Slot, 4 x 2.5Gigabit Base-T Ports Compatible with 10/100/1000Mbps, Mini Size Metal Web Managed Fanless Network Switch
6 Port 10G uplink 2.5G web managed Ethernet Switch, using high quality and high speed network chip solution, this product completely solves the problem of loud noise of small switches deployed in the office environment through the fanless silent design. This switch has 4* 100/1000/2500M RJ45 ports and 2* 10G SFP+ port, providing seamless connection to 100/1000/2500M Ethernet for easy management and maintenance. This switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.
[Main Features]

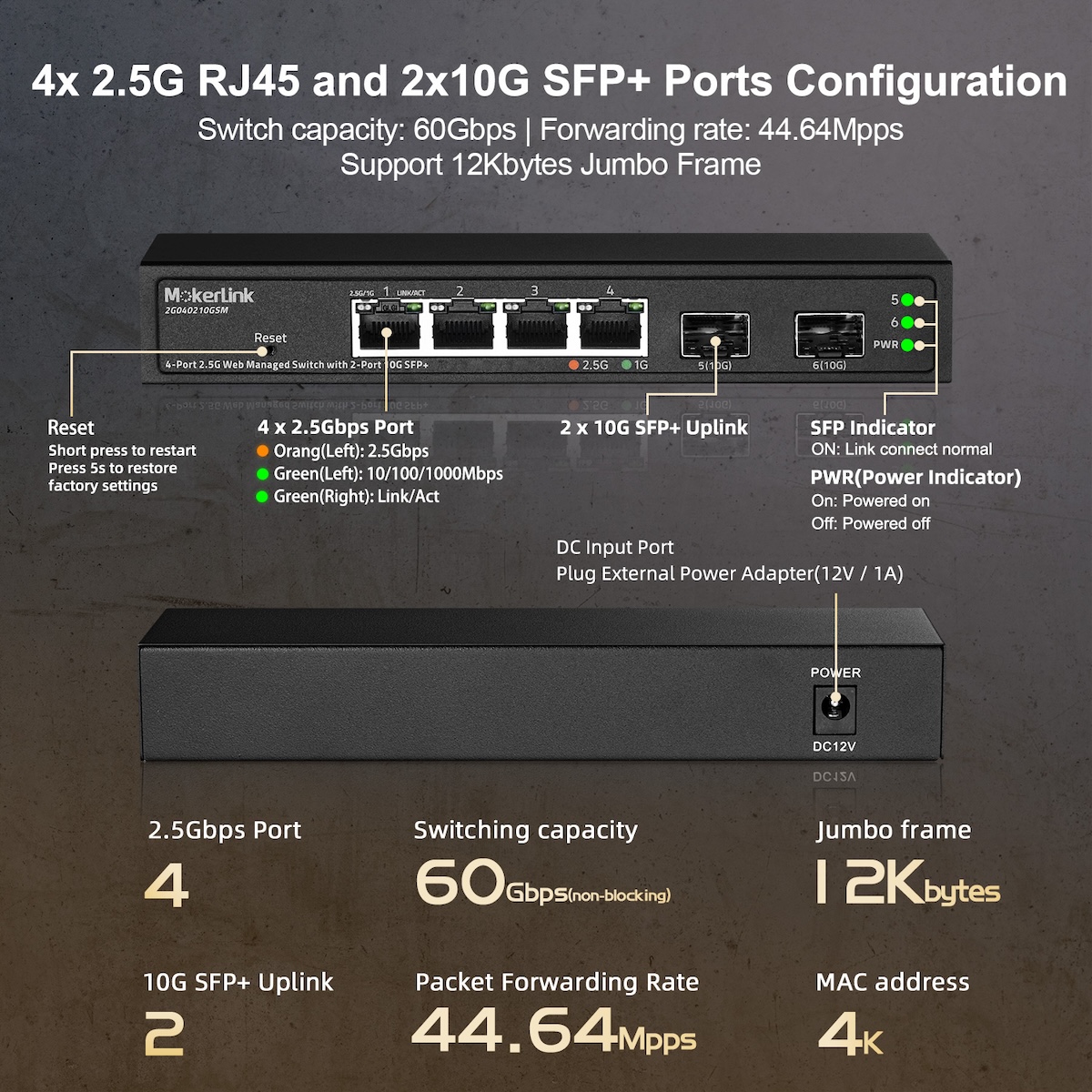

- 4* 100/1000/2500M RJ45 ports+2* 10G SFP+ port;
- Comply with IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x;
- Ethernet ports support 100/1000/2500M self-adaptive;
- Support port Auto MDI/MDIX;
- Panel indicator lights monitor working status and help failure analysis;
- Support QoS data priority;
- Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Back-pressure standard;
- Support surge protection: common mode 6KV; differential mode 2KV; ESD Air 8KV, contact 6KV;
[Application Environment]
- Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
- Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
- Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.
- Real-time monitoring: Simultaneous transmission of real-time control signals, images and data.
| Ethernet Switch Hardware Specifications | |
| Product Model | 2G040210GSM |
| Product Name | 4-Port 2.5G Web Managed Switch with 2-Port 10G SFP+ |
| Ethernet Port | 4*10/100/1000/2500Base-TX RJ45 port + 2*100/1000/2.5G/5G/10G uplink SFP+ port |
| Switching Capacity | 60Gbps |
| Throughput | 44.64Mpps |
| Packet Buffer | 8.1 Mbit |
| MAC Address | 4K |
| Jumbo Frame | 12Kbyte |
| Transfer Mode | Store and forward |
| Network protocol | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab(Gigabit Ethernet), IEEE 802.3bz(5G Ethernet), IEEE 802.3z(Gigabit Ethernet), IEEE 802.3ae(10G Ethernet), IEEE802.3x (Flow control) |
| Network Medium | Multi-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Fiber Medium | Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Lighting Protection | Common mode 6KV;Differential mode 2KV;ESD: Air 8KV, Contact 6KV |
| Working Environment | Operating temperature: -10～+55°C；5%～90% RH Non coagulation, Storage temperature: -40～+75°C；5%～95% RH Non coagulation |
| LED Indicator | PWR，SYS，Link/ACT LED,seep LED |
| Structure Size | Product size: 175mm*73mm*28mm Product weight: 0.32kg |
| Installation | Desktop/Wall Mount |
| Shell | Black Color, Metal Shell |
| Power Voltage | External power DC 12V1A, Max 12W (100-240Vac 50/60Hz) |
| Package List | Switch 1pcs, Specification 1pcs, Power adapter 1pcs |
| Software Function | L2 Features, VLAN, QoS, IGMP, Trunk, etc |
