(7) GbE PoE+ output ports
(1) GbE PoE++ input port*
— 42W PoE availability with PoE++ input
Lýsing
Compact Networking Solution

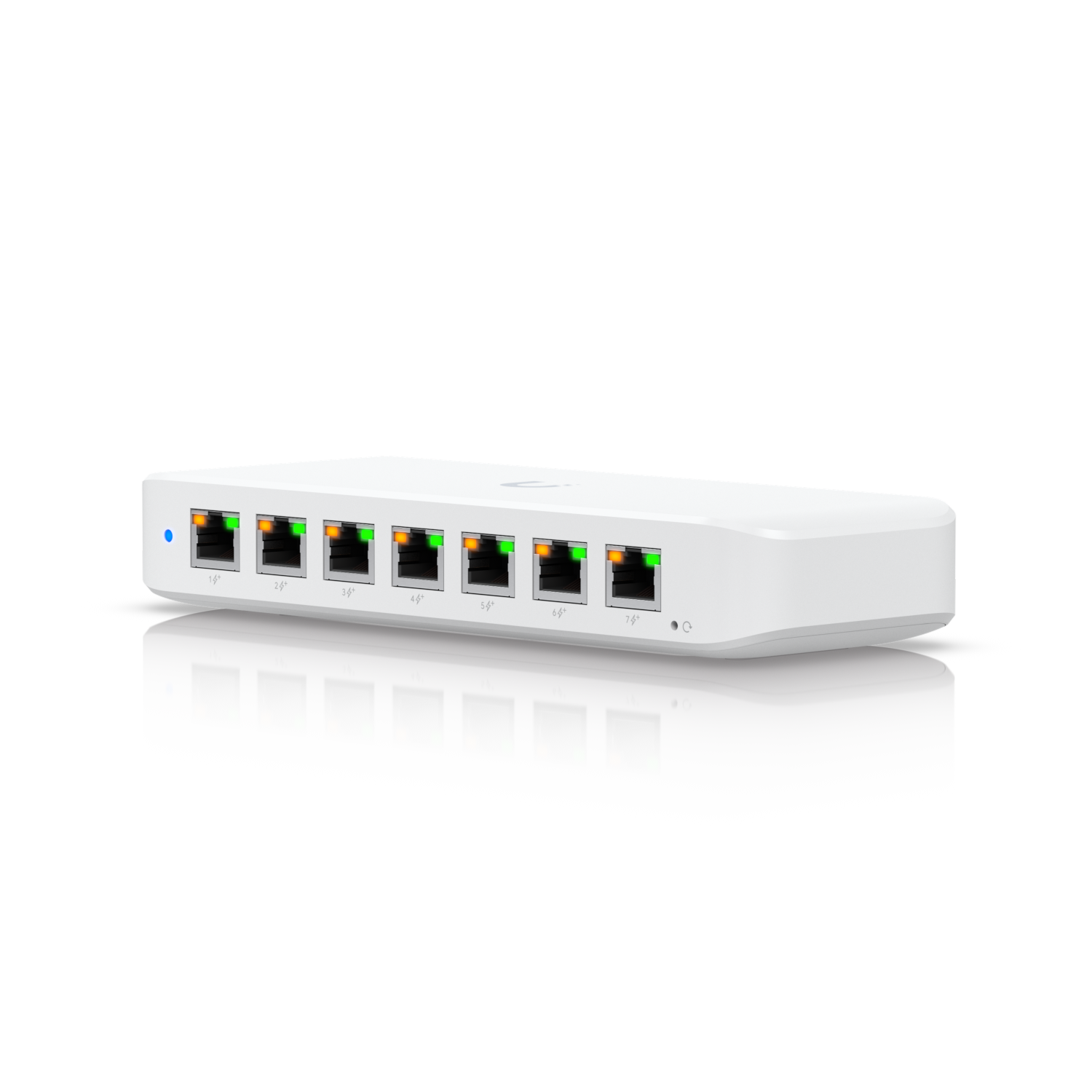

Experience the pinnacle of network performance in a compact form factor with the Ubiquiti USW-Ultra, an 8-port, Layer 2 Gigabit PoE switch. USW-Ultra is the ideal solution for small businesses, home offices, and other environments where space is limited and reliable PoE connectivity is essential. Its compact design, powerful PoE capabilities, and advanced features make it an ideal choice for powering and managing your connected devices.
Key features
Seven GbE PoE+ output ports deliver power to your PoE-powered devices, while the one GbE PoE++ input port provides power for the switch itself. When PoE++ is used to power the switch, the total available PoE power reaches 42W, when PoE+ is used at the input, the total PoE power reaches 17W, and when standard PoE is used, the total PoE power reaches 8W, providing enough power for the connected devices. USW-Ultra operates as a Layer 2 switch, supporting advanced features like VLAN, port mirroring, and port bonding for enhanced network management and control. This switch is a space-saving solution that can be easily mounted on a wall or flat surface, making it ideal for deployments where space is limited.
| Mechanical | |
|---|---|
| Dimensions | 203 x 76 x 33 mm (8 x 3 x 1.3″) |
| Weight | Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (8) GbE RJ45 ports |
| PoE interface | (7) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 8 Gbps |
| Switching capacity | 16 Gbps |
| Power method | (1) 54V, 3.9A power adapter (Not included) (1) 54V, 1.1A power adapter (Not included) PoE++ Pins 1, 2+; 3, 6- and 4, 5+; 7, 8- |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 9W with PoE input (Excluding PoE output) 8W with AC adapter input (Excluding PoE output) |
| Total available PoE | PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W* *At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F) |
| Max. PoE+ wattage per port by PSE | 30W |
| Button | Factory reset |
| Ambient operating temperature | PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F) 210W AC adapter input: -20 to 60° C (-4 to 140° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | Port isolation Storm control Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit |
| Layer 3 features | – |
| LEDs | |
| System | Status |
| Ethernet | PoE Link/activity |
| Application Requirements | |
| UniFi Network | Version 8.0.28 and later |
