Lýsing
Cat6 S-FTP (PiMF) kapall. Seldur í metravís, AWG 23/1, PE, litur svartur
- Unterminated patch cable for installation with LSA connection technology. No approval for permanent installation in buildings
- Flexible data and installation cable for outdoor assembly with a maximum transmission length of 40 m
- Double-layer polyethylene (PE) jacket protects the network cable outdoors and makes it extremely weather-resistant.
- The outdoor Ethernet cable is ideal for use in building facades and surveillance cameras.

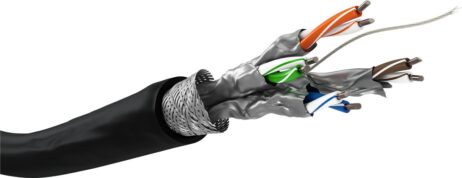

- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper-clad aluminium wire (CCA) guarantees an excellent, powerful network connection.
- Complies with the Construction Products Regulation (CPR) and Fca fire protection class
Technical Details
Cable
- Specification CAT 6
- Cable type outdoor cable
- Shielding class S/FTP (PiMF)
- Number of shieldings 2 x
- Type 1, shielding foil (alu) PiMF
- Type 2, shielding braid (alu) overall shield
- AWG 23/1 solid
- Inner conductor material CCA (copper-clad aluminium)
- Material cable sheath PE
- Cable sheath diameter (approx.) 6.3 mm
- Fire class (CPR) Fca
- Cable length 100 m
- Signal transmission usable up to cable length 40 m
- max. bandwidth 250 MHz
- Impedance 100 Ω
General
- Color black
- Operating temperature from -20 °C
- Operating temperature up to 75 °C
- Packaging type Cable Reel-spool
- Dimensions / Weight
- Consumption Unit 1 m
