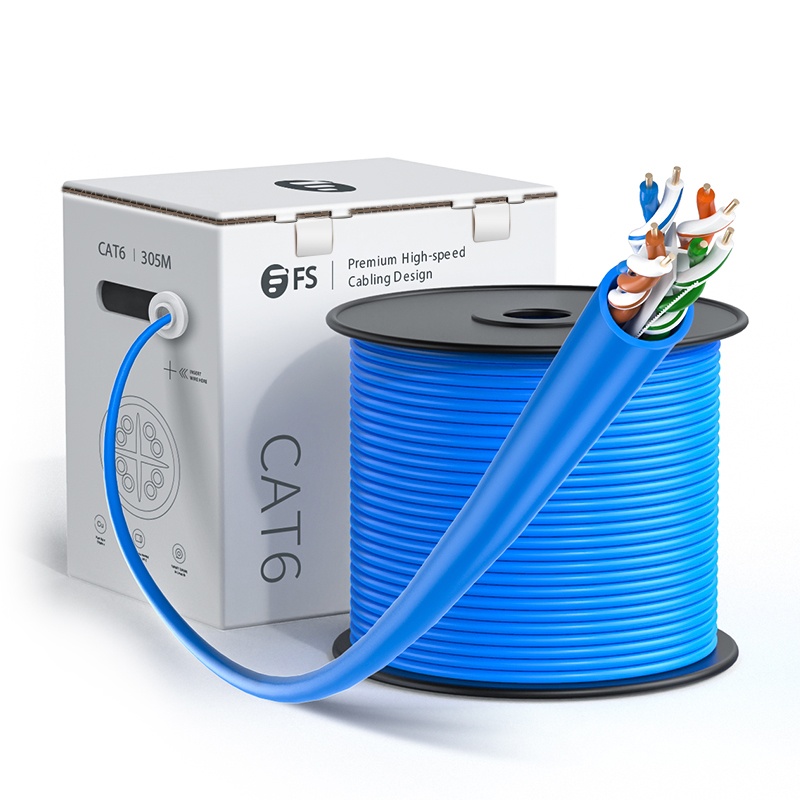

Cat6 Bulk Ethernet Network Cable UTP, Solid, PVC CMR, 23AWG

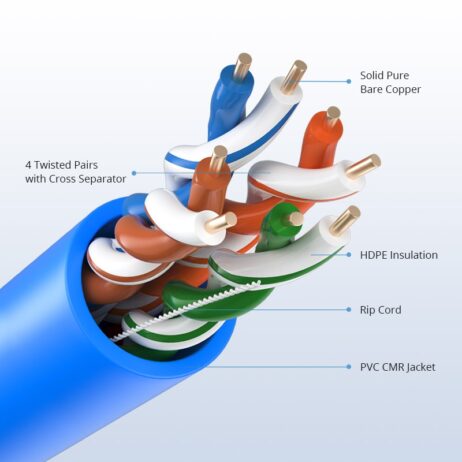

Cat6 is a “4 twisted pairs” network cable used for 1000Base-T Ethernet applications up to 550MHz,and can also provide at speed of 10G rate with up to 37 meters transmission distance. It is backward compatible with the Cat5/5e standard. Cat6 cabling is suitable for office and building wiring, such as schools and shopping malls. This cable is perfect for all your advanced networking installations.
Specifications
- Cable Type Category 6
- Shielding Type UTP
- Cable Jacket PVC CMR
- Cable Length 1000ft (305m) – sold by the meter
- Reference Bandwidth 550MHz
- Data Rate Support 10/100/1000Base-T
- Wire Gauge 23AWG
- Conductor Type Pure Bare Copper Wire
- Putup Type Reel
- Number of Conductors 4 Pairs
- Conductor Diameter (mm) 0.565 ± 0.005
- Cable Outer Diameter (mm) 6.20 ± 0.40
- Maximum Installation Tension (N) 110
- Bend Radius (mm) 26.4
- Cable Color Blue
- Standard ISO/IEC 11801, ANSI/TIA-568.2-D
- Operating Temperature -20 to 75°C (-4 to 167°F)
- Installation Temperature -10 to 50°C (-14 to 122°F)
