EXTRALINK CAT6 FTP OUTDOOR TWISTED PAIR

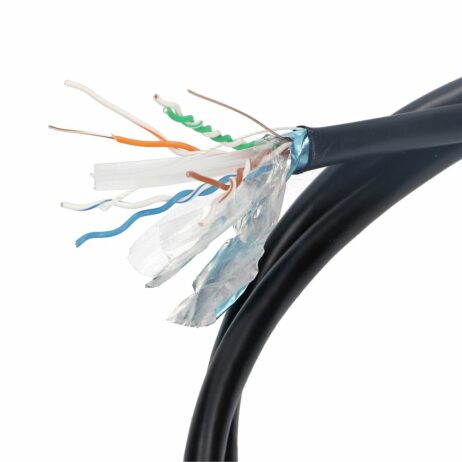

Outdoor Network FTP Cat.6 cable. Built from 23 AWG copper conductor pairs coated by PE Solid. Shielded by aluminum foil. Additional drain wire helps ground ESD attacks. All coated PE outer jacket 0.60 ± 0.05mm thick, designed to work in every weather and environment.Cable packed in to 1000ft. (304.8m) easy to use rolls. Special internal rotating mechanism prevents cable damage while unrolling.
| CABLE DESCRIPTION 100Ω CAT6 FTP 4pairs cable category6 – 250MHz – PE sheath(outdoor) | |
| CONDUCTOR | |
| TYPE | SOLID-Bare copper |
| DIAMETER | 0.56mm±0.005mm |
| AWG | 23 |
| INSULATION | |
| TYPE | PE solid |
| DIAMETER | 1.08mm±0.03mm |
| SYNTHETICAL SEPARTION FOIL | polyester |
| DRAIN WIRE | 0.5mm CCS |
| SHIELDING | yes |
| RIP CORD | YES |
| OUTER JACKET | |
| TYPE | PE |
| COLOUR | BLACK |
| THICKNESS | 0.6mm±0.05mm |
| EXTERNAL DIAMETER | 7.5mm±0.2mm |
| PARAMETER | UNIT | VALUE |
| Max.linear tesistance. | Ω/km | ≤80 |
| Mutual capacity(nom.) | pF/m | 56 |
| Unbalance capacity max
(p/p at 1 KHz) |
pF/km | 1600 |
| Characteristic impedance
(1 at 100 MHz) |
Ω | 100±15 |
| VELOCITY OF PROPAGATION
(f＞1MHz) |
%of c | 66 |
