Lýsing
Triax UFO170 loftnetið er fyrir FM, DAB, VHF og UHF. Það er með síu fyrir 4G 700 MHz og er sérstaklega gert fyrir ferðavagna og húsbíla. Það er með innbyggðum magnara og notar 5-24 volt sem send upp kapalinn. Þetta er með meiri möguleika á festingum. Það þarf spennugjafa aukalega ef að sjónvarpið sendir ekki 5 volt í kapalinn.
Spennubreytir eins og þennan hér þarf með

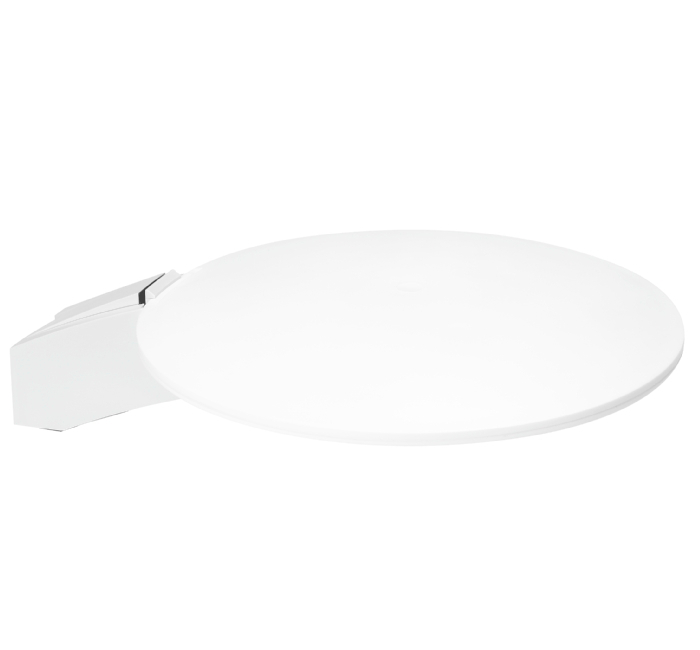

UFO 170 Digital 4G/LTE 700 Protected
- TRIAX UFO digital aerial (VHF/UHF).
- Receives FM/VHF/DAB/UHF signals
- A small and discreet antenna.
- The antenna is surface-treated to withstand impacts from saltwater and weather conditions.
- The ideal flexible solution for home, indoor, caravan, boat, mobile home, bus and truck.
- TETRA safe
Tækniupplýsingar:
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702661091704 |
| CHARACTERISTICS | |
| Type | UFO 170 |
| Max. Output level (@ full dig. load) | VHF:108 / UHF: 104 dBµV |
| FREQUENCY | |
| Band | FM / DAB / DAB+ / VHF / UHF |
| Channels | FM / 5…12 / 21…48 |
| Frequency range FM | 87,5…108 MHz |
| Frequency range DAB | 200…240 MHz |
| Frequency range VHF | 174…230 MHz |
| Frequency range UHF | 470…694 MHz |
| LTE protection | @ 700Mhz |
| GAIN | |
| Gain – VHF | 28.0 dB |
| Gain – UHF | 27.0 dB |
| Noise figure | 3.0 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Power Consumption (typ.) | < 1.2 W |
| CONNECTORS | |
| Connector Type | F-female |
| MECHANICAL | |
| Elements | 1 |
| Windload | 5.5 N |
| Beamwidth horisontal | 360 ° |
| Beamwidth vertical | 90 ° |
| Bracketry | Mast bracket/Universal mount/Plastic base/Centre mount |
| Product Length | 325 mm |
| Product Width | 255 mm |
| Packing QTY | 1 |
| Packaging Height | 0,280 m |
| Packaging Width | 0,290 m |
| Packaging Depth | 0,090 m |
| Packaging Volume | 0,007 m3 |
| Net Weight | 0,674 kg |
| Tara Weight | 0,343 kg |
| Total Weight | 1,017 kg |
