HDMI deilir í 2 HDR, HDCP 2.2, 18Gbps – DS-45322

12.870 kr.

  • Net weight:  0.28 kg
  • Gross weight:  0.3 kg
  • Dimensions per package:  52x36x17
Vöruflokkar: , Merki: , Framleiðandi:
Láttu aðra vita

Lýsing

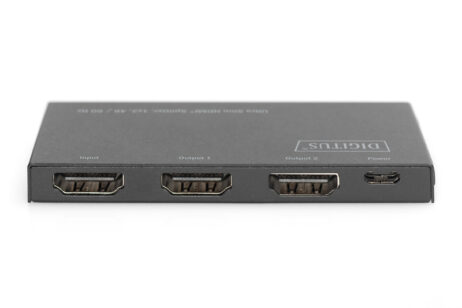

Ultra Slim HDMI Splitter, 1×2, 4K/60Hz HDR, HDCP 2.2, 18 Gbps, Micro USB powered

Splits one HDMI signal on two displays – supports UHD 4K / 60 Hz with HDR

  • Resolutions of up to 4K / 60 Hz (4:4:4)
  • Full 18 Gbps – for a crystal clear display of UHD contents
  • Supports HDR & HDCP 2.2
  • Power supply via Micro USB (charging adapter, TV, notebook)
  • Cascading of up to 8 splitters in a row
  • Ultra slim design
  • Compatible with the latest Ultra High Definition (UHD) standards
  • Protection from Electrostatic Discharges (ESD)
  • Plug and Play

The DIGITUS® high-performance HDMI Splitter splits your HDMI device’s audio and video signals on two screens, TVs or projectors with a resolution of UHD 4K / 60 Hz. No more tedious reconnecting your cables. Additionally, HDR, HDCP 2.2 and 3D are supported – also a total width of 18 Gbps for fluent playback in excellent quality. The HDMI® splitter can be supplied via an existing USB port located on the TV device or, alternatively, via a USB charging adapter using electricity. You can cascade several splitters up to 8 levels.

Technical Details

  • Supports HDMI® resolutions of up to 4K / 60 Hz (4096 x 2160p)
  • Data transfer rate: 18 Gbps (6 Gbps per channel)
  • Supports: RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2 / YCbCr 4:2:0
  • Supports 36bit Deep Color (12 Gbps per channel)
  • Supports HDCP 2.2 / 1.4
  • Supports: 3D
  • Supports: HDR (High Dynamic Range)
  • Supports cascading of up to 8 splitters
  • Operating temperature: 0°C ~ 45°C
  • Operating humidity: 10% – 85% RH (non-condensing)
  • Power consumption: 2 W (5 V/ 0.4 A)
  • ESD protection: +/- 8 kV air insulation discharge, +/- 4 kV contact discharge
  • Housing: Metal
  • Color: Black
  • Weight: 60 g
  • Dimensions: L 8.3 x W 4 x H 0.9 cm
  • Video connection ports: HDMI
  • Number of ports: 2
  • HDTV Resolution max.: 4096 x 2160 Pixel, 60Hz
  • HDTV Standard: Ultra HD 4K
  • Signal input: HDMI
  • Signal output: HDMI

Package content

  • Ultra Slim HDMI Splitter, 1×2, 4K / 60 Hz
  • USB A on Micro USB connection cable (power supply)
  • User manual
