Lýsing
Hikvision Upptökutæki fyrir 8 vélar með PoE.

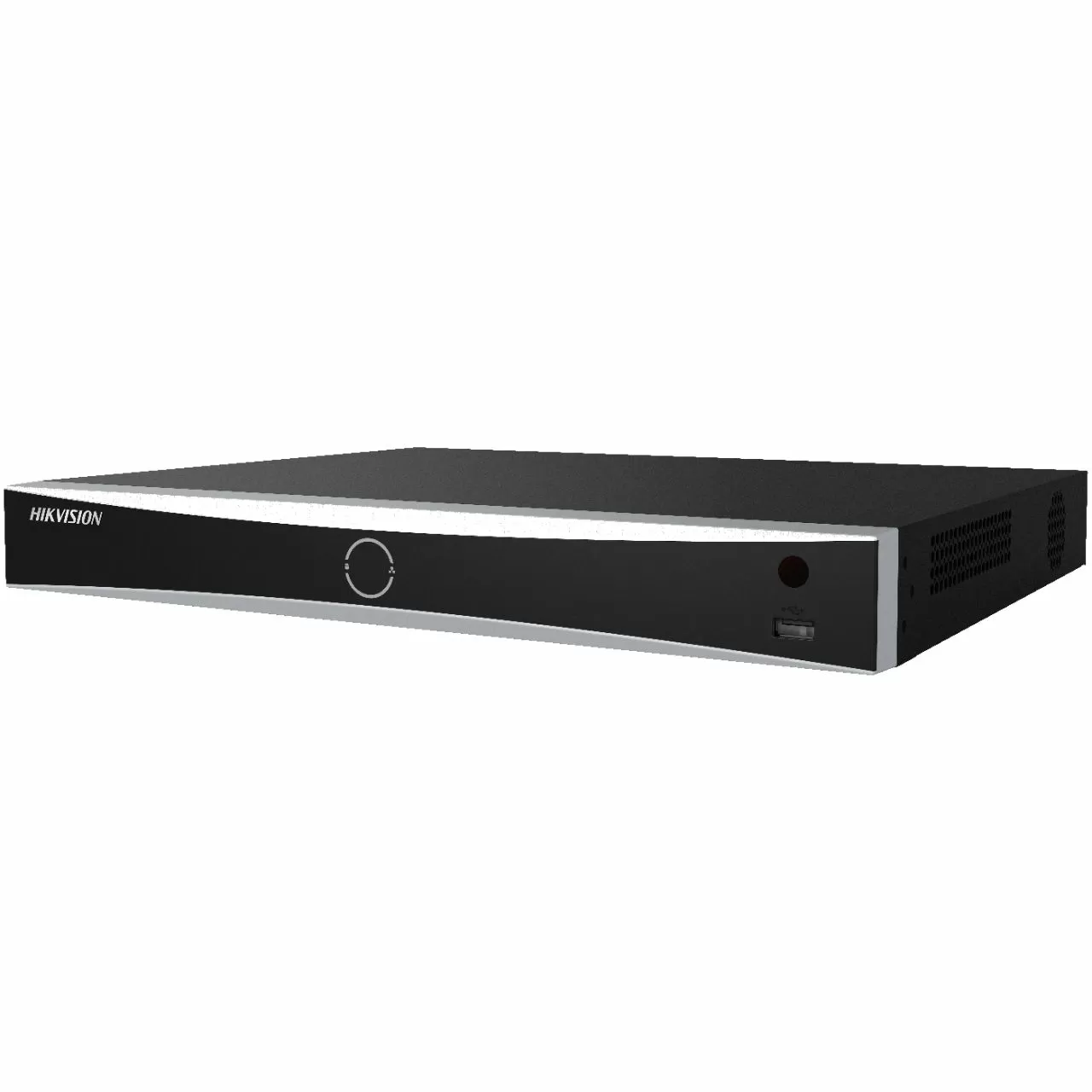

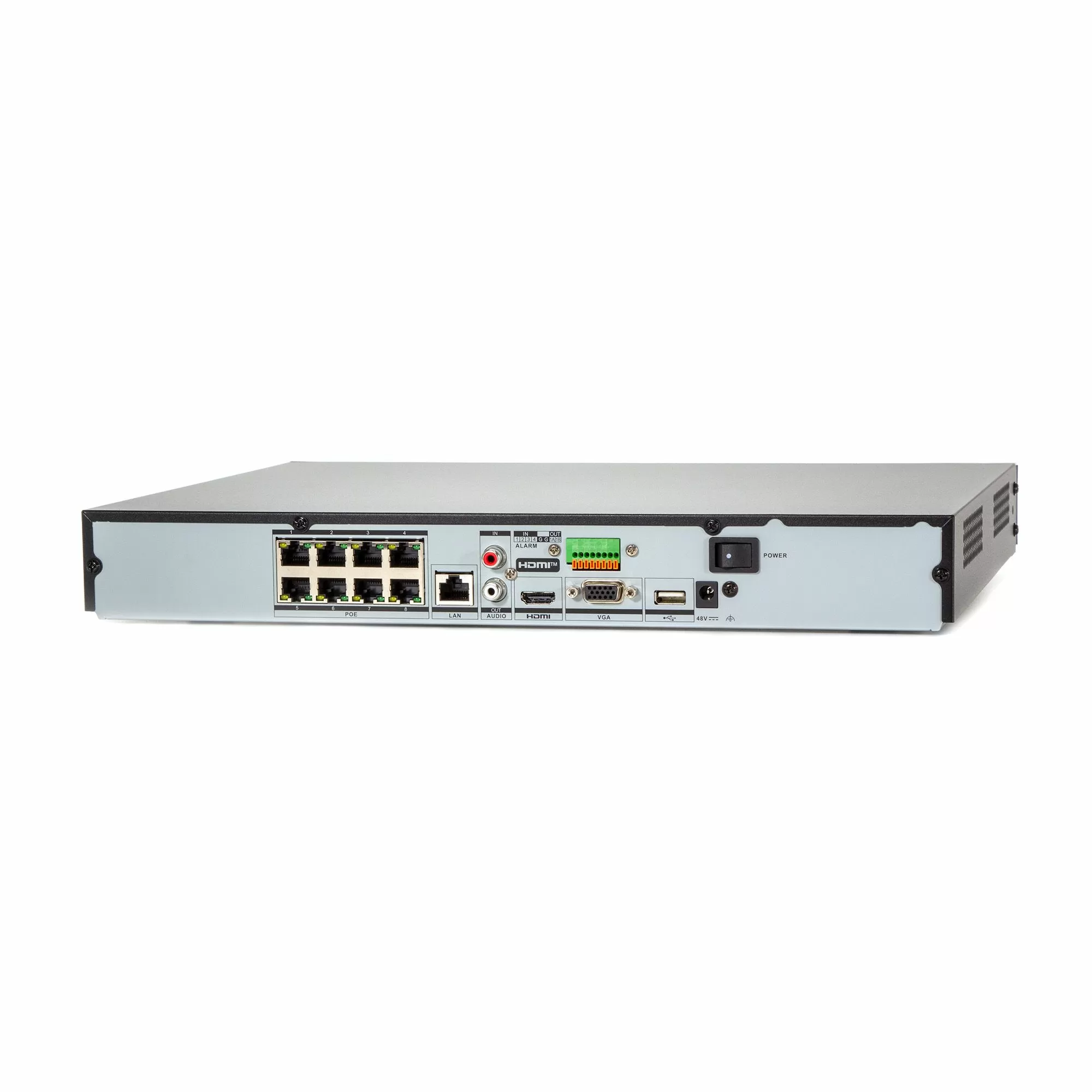

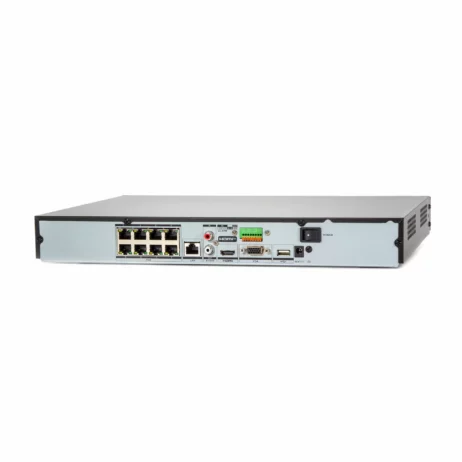

8-ch 1U 8 PoE 4K NVR
- Up to 8 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 8-ch @ 1080p decoding capacity
- Up to 80 Mbps high incoming bandwidth ensures IP cameras can be connected
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 2 HDDs for continuous video recording
- Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
- Video and Audio
- IP Video Input8-ch
- Incoming Bandwidth80 Mbps
- Outgoing Bandwidth160 Mbps
- HDMI Output4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
- Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback8-ch
- Decoding Capability2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
- Network
- Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 120 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 6 TB capacity for each HDD
- Alarm In/Out4/1
- USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
- General
- Power Supply100 to 240 VAC，50 to 60Hz, 1 A
- Consumption≤ 15 W (without enabling PoE and HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)385 × 315 × 52 mm (15.2″ × 12.4″ × 2.0″)
- ≤ 3 kg (6.6 lb, without HDD)
