Lýsing

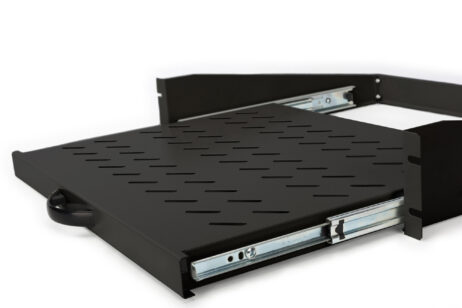

DIGITUS Extendible Shelf for fixed mounting on front 483 mm (19″) profile rails
Product number: DN-19-TRAY-2-450-SW
EAN: 4016032444220
2U extendib. shelf for cabinets from 450 mm depth 88x483x352 mm, up to 30 kg, black (RAL 9005)
Due to its compact construction it is perfectly suitable also for 483 mm (19”) wall mounting cabinets with a depth from 450 mm.
- extendible, with handle
- Fixed installation only on the front 483 mm (19″) profile rails – due to this it is perfectly suitable for double sectioned wall mounting cabinets
DESCRIPTION
The shelf for fixed mounting is easy to install on the front 483 mm (19“) profile rails of your 483 mm (19“) network- or server cabinet. Due to its compact construction it is perfectly suitable also for 483 mm (19”) wall mounting cabinets with a depth from 450 mm. The shelf is extendible via handle which makes the access easier. Due to its stable, perforated steel sheet with a load capacity of 30 kg, it is the optimal surface for components which are not 483 mm (19”) suitable.
TECHNICAL DETAILS
- for fixed installation on the front 483 mm (19“) profile rails
- extendible, with handle
- sturdy, perforated steel sheet
- incl. fixing material
- 2-point fixing (front 19″ profile rails)
- Color: black, RAL 9005
- Load capacity: 30 kg
- Mounting type: Extendible
- Units: 2
- Inch form factor (IEC 60297): 482.6 mm (19″)
- Suitable cabinet depth: ≥ 450 mm
PACKAGE CONTENT
- Installation set (screws, cage nuts, washers)
- Handle
