Lýsing
Tengi fyrir Cat6A STP kapla. Þessir passa fyrir patch panelana. Hann er “slim line” eða bara 14,7mm breiður, þarf ekki verkfæri til að tengja.
Keystone Module RJ45 CAT 6A, STP, Slim-Line

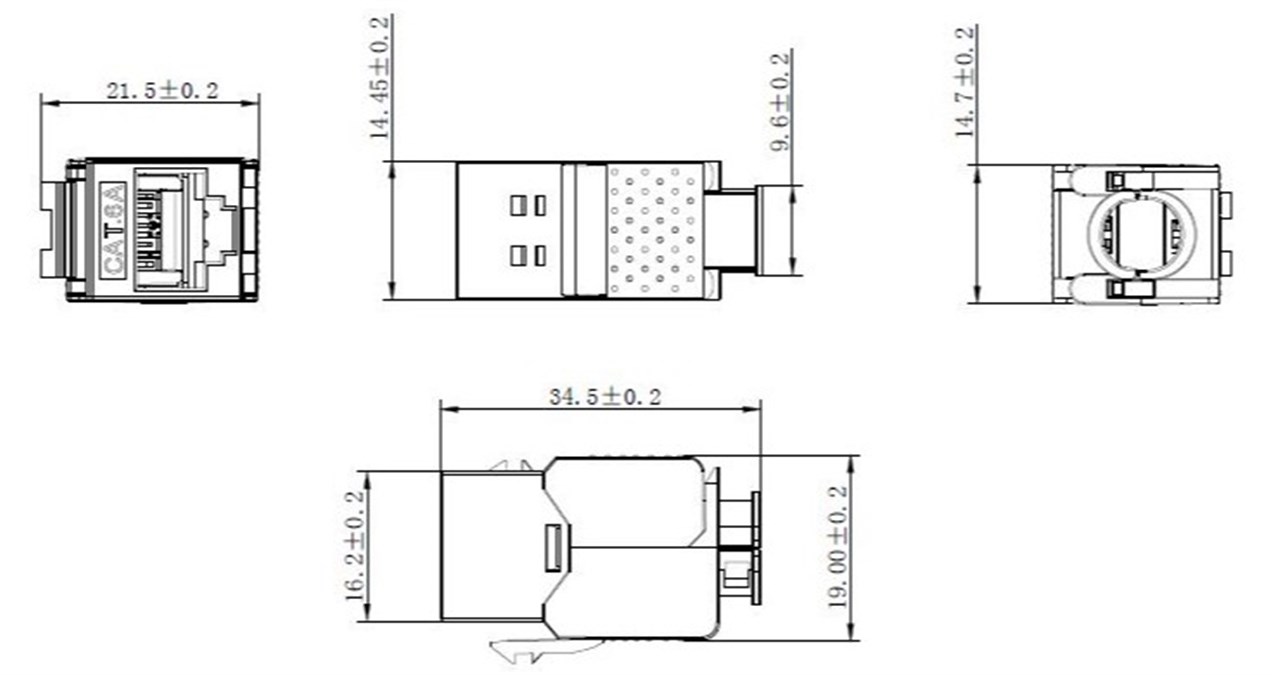

14.7 mm wide, 180° cable outlet, crocodile type, for IDC connection (toolless)
The Keystone system knows no limits when it comes to installation. Take advantage of the modular connection system for standardised connectors and rectangular module receptacles (ports) in 14.9 × 17.0 mm pitch. The Snap-in system enables a wide variety of connection techniques, e.g. with coaxial sockets for IEC or F connectors, RJ45 jack sockets (CAT 5, CAT 6, CAT 6A), loudspeaker connectors (RCA sockets, screw and clamp connectors) as well as USB, fibre-optic and HDMI™ jack sockets. The Keystone modules can be universally applied and interchanged.
- RJ45 jack socket with robust zinc-alloy housing for a perfect transmission of electrical signals
- LAN jack socket with STP shield for interference-free signal transmission
- Commonly used in network installations and for the assembly of permanently installed network cables
- RJ45 jack socket for installation in Keystone patch panels, Ethernet wall sockets and housings
- Suitable for 10 Gigabit Ethernet applications and Power over Ethernet (PoE+) according to IEEE 802.3at
- RJ45 socket for termination with CAT 6A cables
- RJ45 connections are TIA 568A/B colour-coded
Nánar hér
| AWG | 22-26（0.4-0.65mm) |
| For cable diameter from | 5.0 – 8.5 mm |
| TIA-568 A/B pinout | TIA-568 A/B |
| PoE and PoE Plus according to IEEE802.3af/at | yes |
