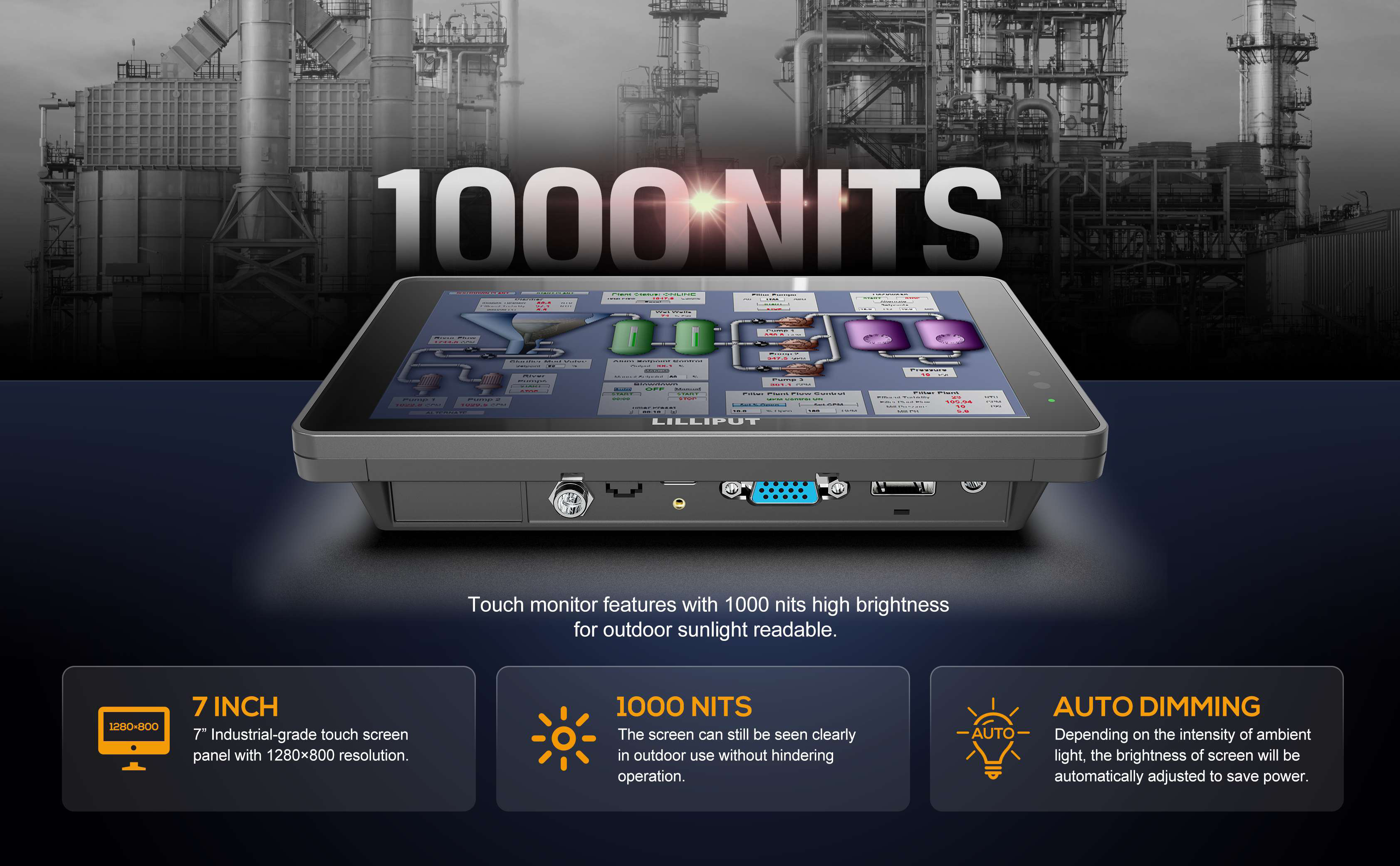

LILLIPUT 7 Inch 1000 Nits Touch Screen Monitor
- Model No.:719/C & 719/T
- Display:7″ / 1280×800 / 1000 nits
- Input:HDMI, VGA, USB-C
- Audio In/Out:Speaker, HDMI, Ear Jack
- Feature:1000nits Brightness, 10-points PCAP, IP65 Rating, Auto Dimming, ISO7637-2
- Model No.:719/C & 719/T
- Display:7″ / 1280×800 / 1000 nits
- Input:HDMI, VGA, USB-C
- Audio In/Out:Speaker, HDMI, Ear Jack
- Feature:1000nits Brightness, 10-points PCAP, Auto Dimming, ISO7637-2
| MODEL NO. | 719/C | 719/T | 719/C | 719/T | |
| STRUCTURE | Standard | With Optional IP65 Frame | |||
| DISPLAY | Touch Screen | Non-touch | 10-point PCAP | Non-touch | 10-point PCAP |
| Panel | 7” LCD | ||||
| Physical Resolution | 1280×800 | ||||
| Aspect Ratio | 16:10 | ||||
| Brightness | 1000 nits | ||||
| Contrast | 800:1 | ||||
| Viewing Angle | 170° / 170° (H/V) | ||||
| LED Panel Life Time | 50000h | ||||
| INPUT | HDMI | 1 | |||
| VGA | 1 | ||||
| USB | USB-C (For touch+video signal+power) | USB-A (For touch only) | |||
| SUPPORTED FORMATS |
HDMI | 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… | |||
| VGA | 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60… | ||||
| USB Type-C | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… | ||||
| AUDIO IN/OUT | Speaker | 1 | |||
| HDMI | Available | ||||
| Ear Jack | 3.5mm – 2ch 48kHz 24-bit | ||||
| POWER | Input Voltage | DC 9-36V | |||
| Power Consumption | ≤8.5W (12V) | ||||
| ENVIRONMENT | IP Rating | – | IP65 | ||
| Operating Temperature | -20°C~60°C | ||||
| Storage Temperature | -30°C~80°C | ||||
| DIMENSION | Dimension(LWD) | 184.5mm × 118.8mm × 32mm | |||
| VESA Mount | 75mm | ||||
| Weight | 410g | 560g | |||
