Lýsing

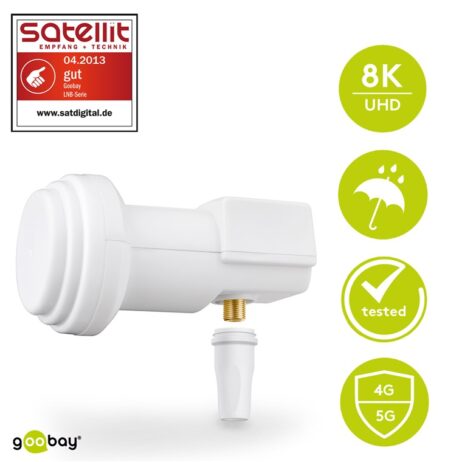

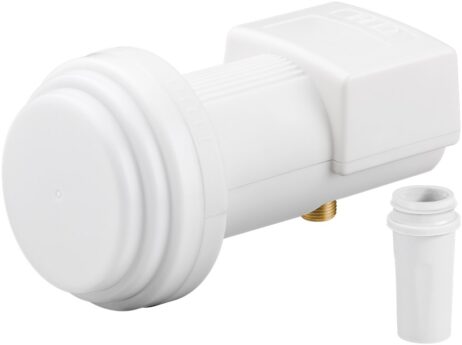

Goobay 0,1dB LNB fyrir 1 notanda.
Universal Single LNB
digital SAT LNB (DVB-S2) for 1 participants (8K, 4K, UHD, HDTV, 3D)
- reception system for connecting satellite systems to an independent receiver/TV set
- suitable for direct connection without a multiswitch
- equipped with fully encapsulated, weatherproof housing
- additional protection of the gold-plated F-connectors through pull-out wetness protection
- higher signal strength thanks to 0.1 dB noise figure
Technical specifications
- Device connections max. subscriber 1 szt.
-
Output, contact material gold-platedOutput, type F femaleNumber of outputs 1 portsSignal transmissionnoise figure 0.1Input frequency low band 10,70 – 11,70 GHzInput frequency high band 11,70 – 12,75 GHzOutput frequency low band 950 – 1.950 MHzOutput frequency high band 1.100 – 2.150 MHzSignal amplification Legacy 52 – 62 (typ. 57) dBLOW frequency Low 9.75LOW frequency High 10.6Transmission modes DVB-S, DVB-S2Diameter Feedhorn 40Color white, greyMarkings CE, WEEE
