Lýsing

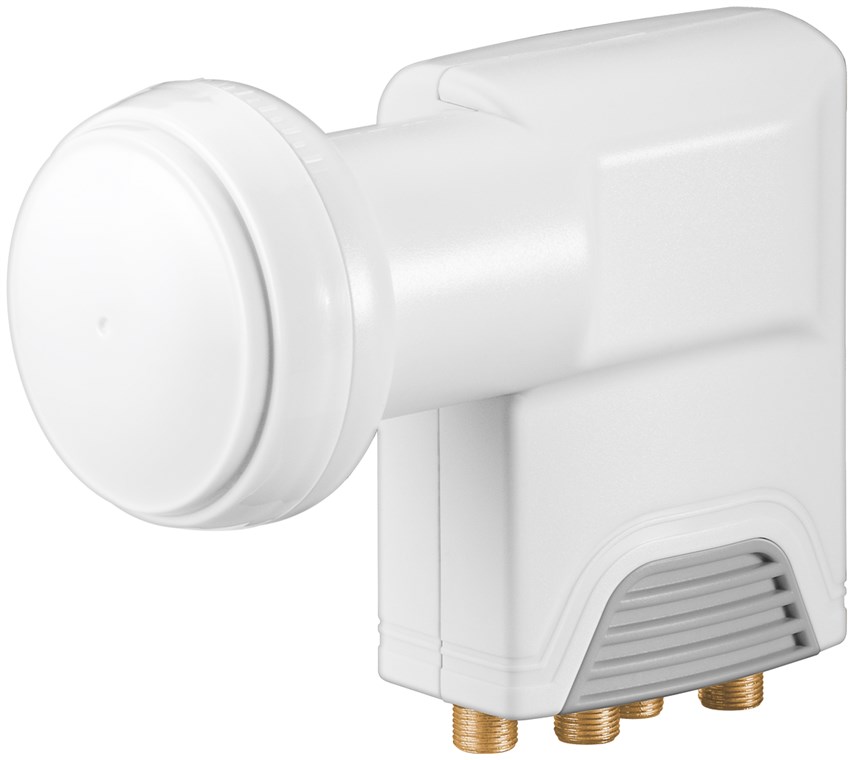

Triax 0,3dB LNB með 4 fasta útganga.
Með þessu LNB getur þú lagt lengri leiðir að móttakaranum. Við erum með einn út, tvo útganga, fyrir fjóra notendur og með fjóra fasta útganga til að nota með rofa þar sem fleiri en fjórir notendur.
TRIAX complete range of LNB’s
- Great quality, low footprint
- Cutting edge RF technology
- Excellent Cross polar isolation
- Excellent low noise / low phase noise
- High output / low power consumption
- Weatherproof & qualified for harsh invironments
- Complete range of Single, Twin, Quad, Quattro, Octo and other types on request
ORDER INFORMATION
CONNECTORS
ELECTRICAL
GAIN
| Conversion gain (typ.) |
53…68 dB |
| Noise figure max. |
0,3 dB |
CHARACTERISTICS
| Phase noise @ room temperature – 1 kHz |
-60 dBc/Hz |
| Phase noise @ room temperature – 10 kHz |
-80 dBc/Hz |
| Phase noise @ room temperature – 100 kHz |
-92 dBc/Hz |
| Image rejection (min.) |
40 dB |
| Output VSWR |
2.2:1 |
| Feedhorn diameter |
Ø 40 mm |
| LO temperature drifting |
± 2 MHz |
| LNB type |
Quattro |
ISOLATION
| Cross polarization isolation |
22 dB |
FREQUENCY RANGE
| Input frequency low band |
10.7…11,7 GHz |
| Input frequency high band |
11.7…12.75 GHz |
| Output frequency low band |
950…2150 MHz |
| L.O. frequency low band |
9.75 GHz |
| L.O. frequency high band |
10.6 GHz |
| L.O. technology |
PLL |
OPERATIONAL
| DC Operating voltage |
12…19 VDC |
| DC Current consumption |
240 mA |
| Temperature – operating |
-30…60 °C |
MECHANICAL
| Reflector type |
Offset |
| Colour |
RAL 9002 – Grey white |
| Packing QTY |
1 |

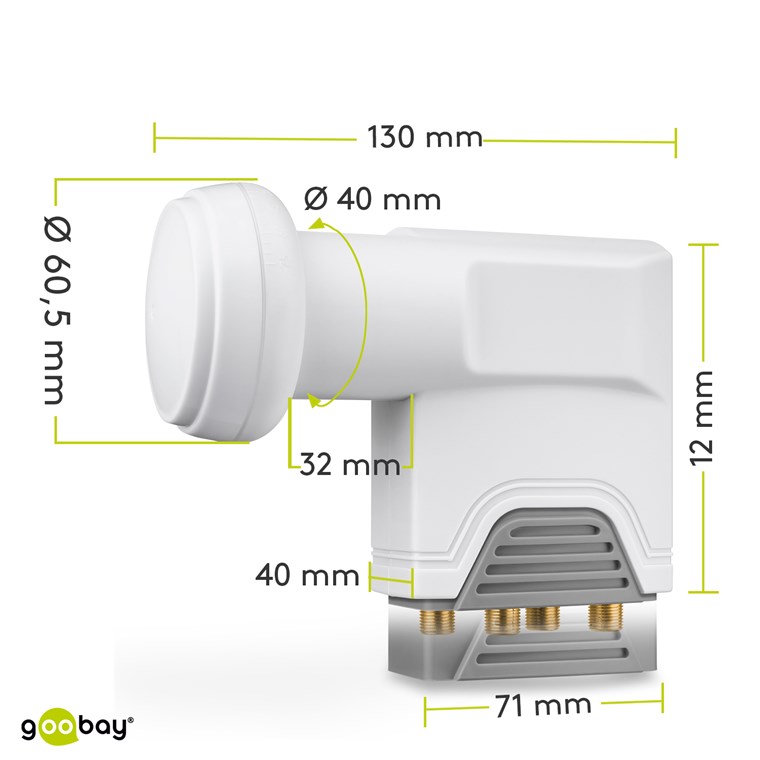

| Product Height |
135.2 mm |
| Product Width |
112 mm |
| Product Depth |
61 mm |
| Packaging Height |
0.143 m |
| Packaging Width |
0.110 m |
| Packaging Depth |
0.066 m |
| Packaging Volume |
0.001 m3 |
| Net Weight |
0.210 kg |
| Tara Weight |
0.034 kg |
| Total Weight |
0.244 kg |
