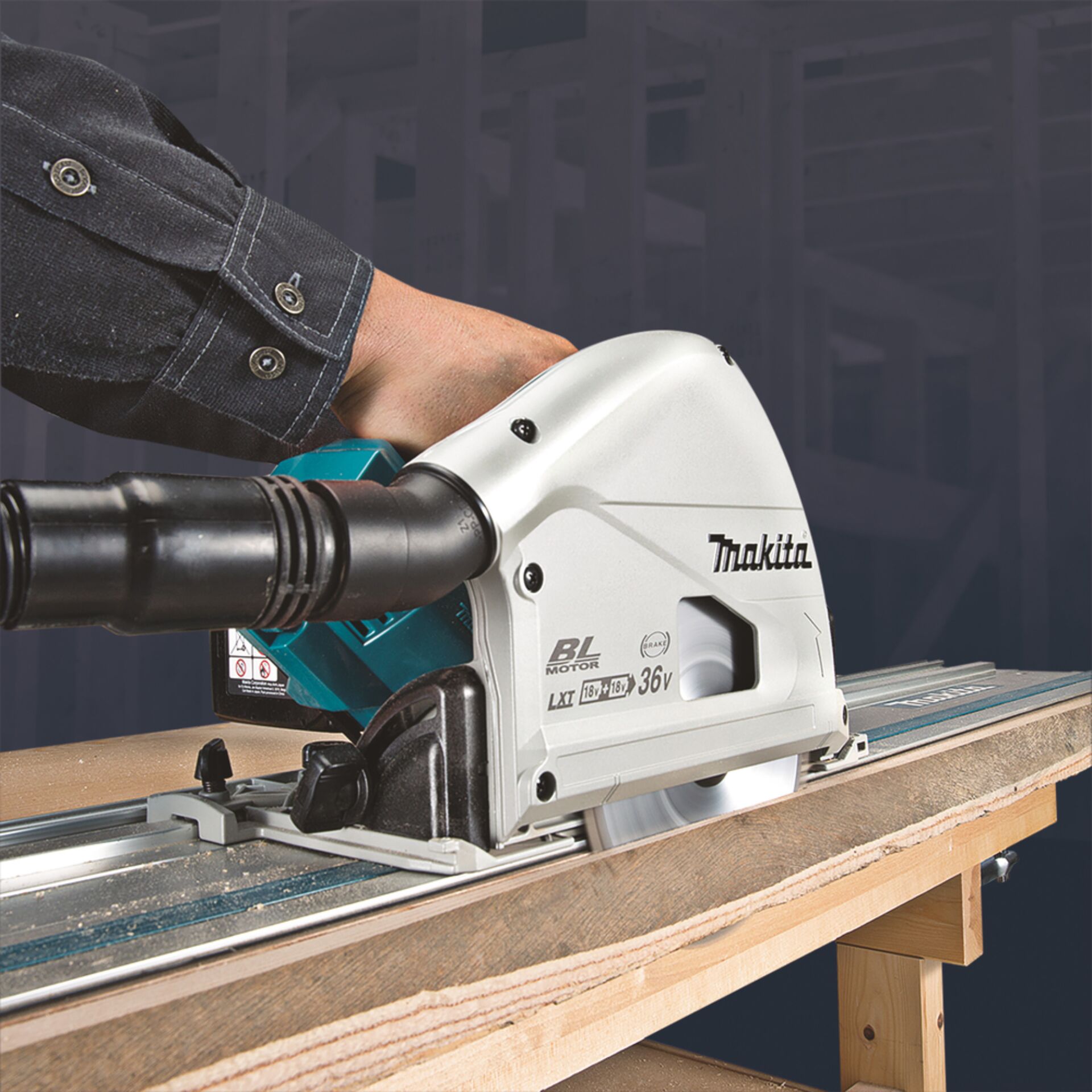

Makita Battery Plunge Saw DSP600ZJ + Case (without batteries and without charger)
Brushless plunge-cut circular saw for professional work.
Features:
- Precise and durable
- Saw blade diameter: 165 mm
- Cutting depth: 56 mm
- Compact design
- Back-cutting function: Angle adjustable from -1 to + 48 degrees
- Angle quick setting for -1 / 22.5 degrees
- Maximum tilt angle quick pre-selection: 45 or 48 degrees
- Tear-free cut thanks to “scribing mode
- Speed electronically adjustable
- Soft start and overload protection
- Even at the greatest tilt angle it does not tip out of the guide rail
- Motor brake
- Battery protection system
- External suction unit can be connected
- Transport case
Technical data:
- Note: Batteries and charger not included in delivery
- Battery system: LXT
- Battery voltage: 2x 18 V
- Idle speed: 2500 – 6300 min-¹
- Max. Cutting capacity 90°: 56 mm
- Max. Cutting capacity 45°: 40 mm
- Sound pressure level: 92 dB(A)
- Max. Tilt left / right: – 1 / 48 °
- Dimensions (L x W x H): 346 x 241 x 272 mm
- Weight incl. battery: 4.4 – 5.1 kg (depending on battery)
Technical Data
- No-Load Speed (min-1) 2500 – 6300
- Cutting Performance at 0° (mm) 56
- Saw Blade Diameter (mm) 165
- Saw Blade Drilling Diameter (mm) 20
- Number of Teeth 56
- Handle Yes
- Pull Function No
- Mitre Function No
- Tilt Function Yes
- Laser Guidance No
Energy Supply
- Voltage (V) 36
- Battery Voltage (V) 2 x 18
- Type of Battery / Rechargeable Battery Lithium-Ion
- Rechargeable Batteries Included in Delivery 0
Type
- Type Plunge Saw
- Operating Mode Rechargeable Battery
General
- Overall Length (mm) 346
- Colour Blue / Silver
- Material Metal / Plastic
- Width (cm) 24,1
- Height (cm) 27,2
- Depth (cm) 34,6
- Weight (kg) 4,4 – 5,1
