Lýsing

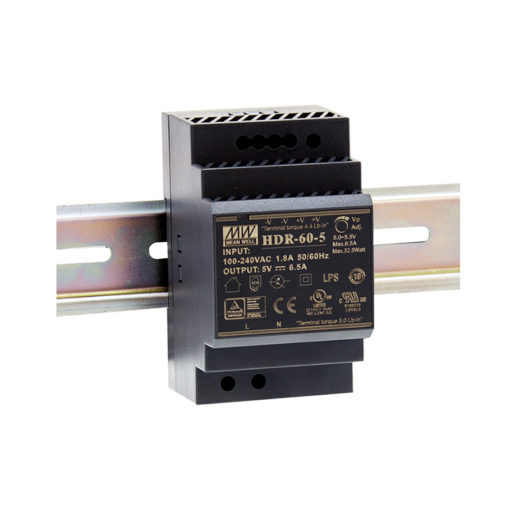

Spennugjafi til að festa á DIN skinnu. Þessi er 12 volt og 60 wött.
Nánari upplýsingar hér
Features:
- Ultra slim design with 52.5mm (3SU width)
- Universal input 85~264VAC (277VAC operational)
- No load power consumption<0.3W
- Isolation class II
- Pass LPS (Limited power source)
- DC output voltage adjustable
- Protections: Short circuit / Overload Over voltage
- Cooling by free air convection (working temperature: -30~+70 °C)
- DIN rail TS-35/7.5 or 15 mountable
- Over voltage category III
- LED indicator for power on
- 3 years warranty
Model
- HDR-60-12 / HDR-60-15 / HDR-60-24 / HDR-60-48
Description:
HDR-60 is one economical ultra slim 60W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 52.5mm (3SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC (277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-30 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -30 °C and 70°C under air convection. The complete protection functions and relevant certificates for homeautomations and industrial control apparatus (IEC60950-1, UL508, UL60950-1, EN61558-2-16) make HDR-60 a very competitive power supply solution for household and industrial applications.
