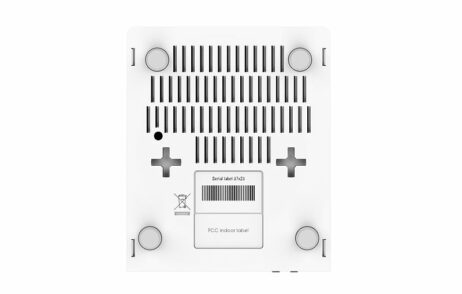

Mikrotik hEX PoE – RB960PGS

Lýsing

hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.

It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.

It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.

Flýtileiðbeiningar hér

Leiðbeiningar hér

Hraðatest hér

Specifications

Details
Product code	RB960PGS
Architecture	MIPSBE
CPU	QCA9557
CPU core count	1
CPU nominal frequency	800 MHz
RouterOS license	4
Operating System	RouterOS
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100’000 hours at 25C
Tested ambient temperature	-40°C to 60°C

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	54 W
Max power consumption without attachments	6 W
FAN count	Passive
PoE in	Passive PoE
PoE in input Voltage	12-57 V

PoE-out

Details
PoE-out ports	Ether2-Ether5
PoE out	802.3af/at
Max out per port output (input 18-30 V)	1 A
Max out per port output (input 30-57 V)	450 mA
Max total out (A)	2 A

Ethernet

Details
10/100/1000 Ethernet ports	5

Fiber

Details
SFP ports	1

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20
