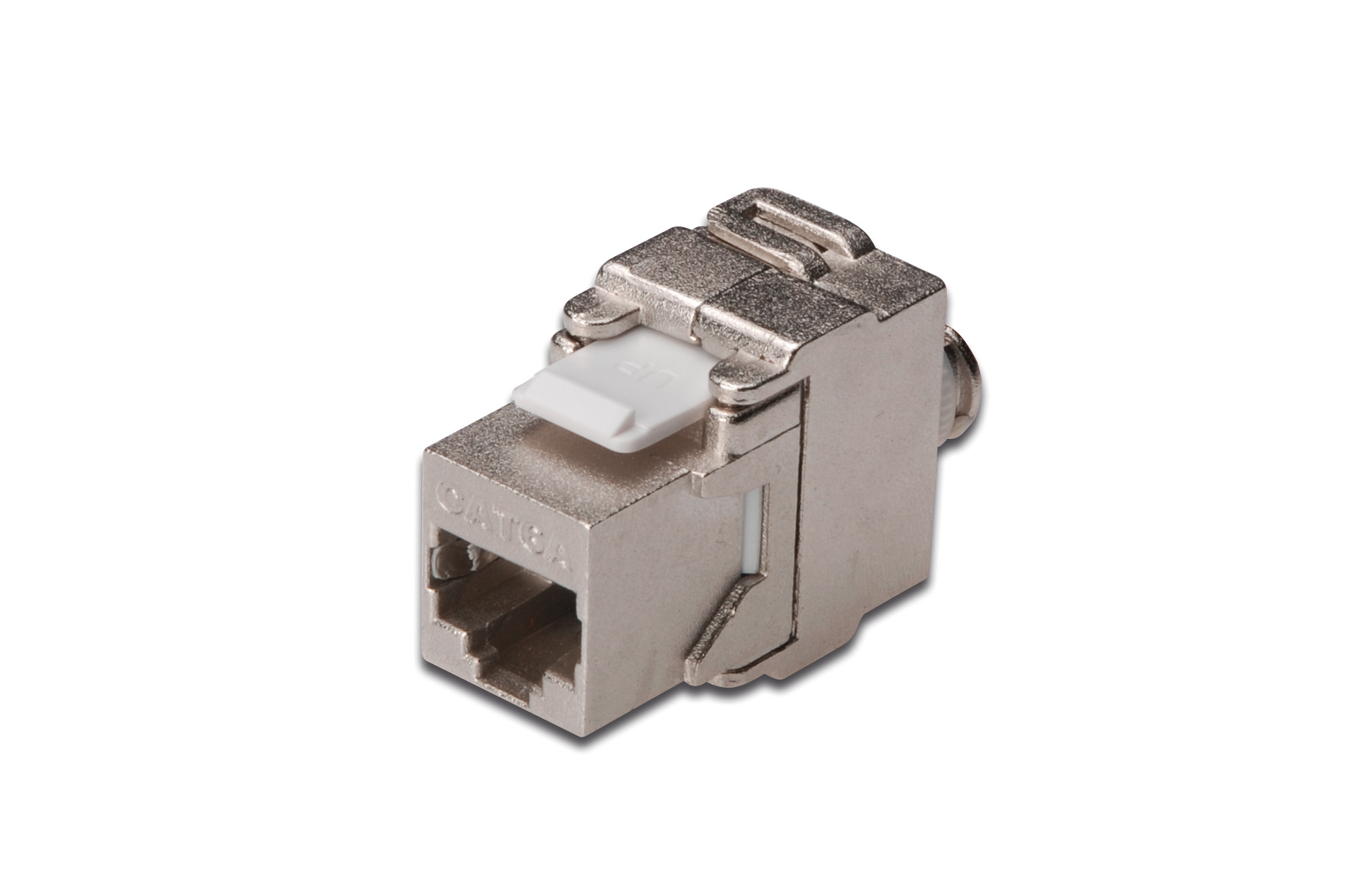

Molar fyrir Cat6 skermaðan kapal, DN-93614

1.700 kr.

Vöruflokkar: , Merki: , , , Framleiðandi:
Láttu aðra vita

Lýsing

Molar fyrir Cat6 kapal. Þessir passa fyrir patch panelana. Einfalt að nota, litamerkt þannig að auðvelt er að tengja. Verkfæra laus ásetning.

  • Material enclosure: Zinc diecast
  • Material contacts: Phosphor bronze
  • Contacts coating: Nickel, gold plated 0.6 µ
  • Operating temperature: -10 °C ~+50 °C
  • Material PCB: FR4, 1.2 mm thickness
  • Mating cycles: ≥ 750
  • RJ45 jack, female, for patch panel installatio
  • Compact form allows an installation of 24 x in 483mm (19″) 1U blank Panel
  • Suitable for bracket typ DN-91400, DN-91401
  • Opening size acc. Keystone Standard 19.35 mm x 14.8 mm
  • Suitable for design wall plates for several well-known switching programs e.g. Busch-Jaeger part number: 1812 or 1866EB
  • Suitable for design wall plates for switching program PEHA part number: D 600 MJ11
  • Tested for Link Performance Class EA (A-subscript), for up to 500 MHz, GHMT Channel Link certified, DIN EN 50173-1 (IEC 60603-7, IEC 60512-4-1) and ISO/IEC 11801 2002 : AM : 2009/09
  • Tool free cable installation via LSA stripes, color coded according to EIA/TIA 568 A & B
  • 10GBase-T Channel
  • Dimensions (HxWxD): 17,26,35 mm
  • Weight: 30 g
