Molar fyrir Cat7 kapal – 158170

2.300 kr.

  • Up to 500 MHz, 10GBase‑T, Fully Compliant with ANSI/TIA/EIA 568-C.2 Standard
  • Backwards Compatible to 10MB/100MB/1000MB/10GB Ethernet Cat5e Cat6 Cat6a
  • Support IEEE 802.3af/at/bt, Verified IEC 60512-99-001 & IEC 60512-99-002 Test
  • The Shielded Keystone Jack, against EMI/RFI, NEXT, and AXT
  • Fast Installation without Any Special Punch Tool or Crimping Tool
  • Dual-color-coded Labeling for 568A/B (258A) Wiring Schemes
  • Gold-plated RJ45 Contacts for Optimal Conductivity
  • To Be Used with Keystone Wall Plate or Panel
Vöruflokkar: , Merki: , , , Framleiðandi:
Láttu aðra vita

Lýsing

Molar fyrir Cat7 kapal. Þessir passa fyrir patch panelana. Einfalt að nota, litamerkt þannig að auðvelt er að tengja. Verkfæra laus ásetning.

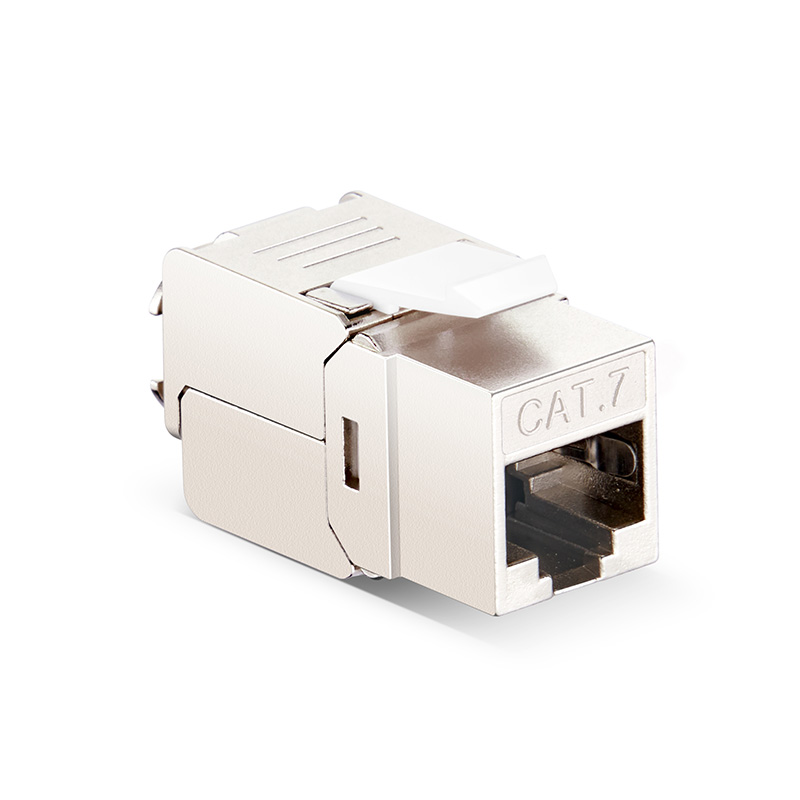

Cat7 RJ45(8P8C) Shielded Toolless Keystone Jack Module

The Cat7 Keystone toolless style connectors make for a simple installation without the need for a punch-down tool. Toolless keystone jacks are an ideal solution for terminating and connecting network cables, such as Cat7 premise wiring, the RJ45 keystone jack snaping into wall plates, patch panels and surface-mount boxes.

  • Specifications
  • Product Type Cat7 Keystone Jack
    Color Metal Silver
    Connector RJ45 Female
    Termination Type Toolless
    Shielding Type Shielded
    Data Rate Support 10GBase-T
    Wire Gauge Supported 23-26AWG Cable
    Wiring Scheme T568A/T568B
    Housing Material Zinc Alloy
    Dimensions (HxW) 0.63”x0.57” (16×14.5mm)
    Operating Temperature -10°C to 60°C (14°F to 140°F)
    Contact Plating Thickness 50 Microinches
Quality Certifications
To get the detailed certification, please go to the Product Compliance Status for download.
