Lýsing

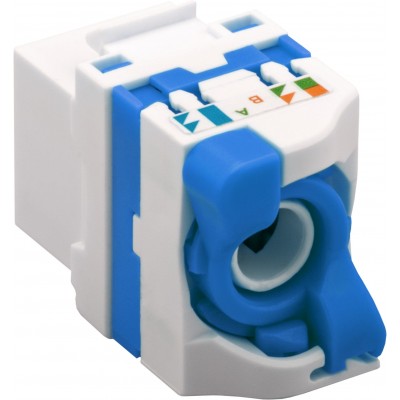

Keystone molar fyrir Cat6 kapal. Þessir passa fyrir patch panelana. Einfalt að nota, litamerkt þannig að auðvelt er að tengja. Verkfæra laus ásetning. Með twist-on læsingu.
Upplýsingar:
1. Keystone Jack, Cat.6,UTP, for connecting application of communication ports.
2. A compact & ingenious designing, with the punching sequence direction Marks on the sides of keystone jack. That can provide a correct and quick Guide for punching and connection operation. And the fastener hats will make sure the cable can be fixed reliably in the IDC clips.
3.According to the standard of ISO/IEC 11801: 2002 class & ANSI/TIA/EIA 568- B. 2-1 CAT.6, T568A punching sequence and T568B punching sequence are both compatible.
4. Connection type: FCC connector for RJ45 patch cord and IDC for 8-pair Cat.6 cables.
5.Fitting for the Cat.6 general cable distribution system. Compatible for Cat.6 systems.
Mechanical
- Meet TIA/EIA-568-A and TIA/EIA-568-B Category 3 requirements.
- Meet TIA/EIA TSB-40
- Meet ISO/IEC Generic Cabling Standard 11801
- Meet CENELEC Generic Cabling Standard EN50173
- Termination: 110- Krone-Dual type
- Electrical: According to UL 1863
- Current rating: 1.5 Amp Max.
- Voltage rating: 150 Volts
- Contact resistance: 20 m-ohm
- Insulation Resistance: 500M-ohm
- Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
