Lýsing
Með mótara (modulator) getur þú búið til loftnetsmerki úr mynd merki frá myndlykli til þess að senda myndina um loftnetskerfi það sem að er fyrir í húsinu. Þessi mótari er fyrir stafrænt merki og því hægt að senda myndina frá myndlykli um allt hús í háskerpu. Hann er HDMI inngang til að móta á DVB-T.
Upplýsingar um Edision DVB-T mótara:

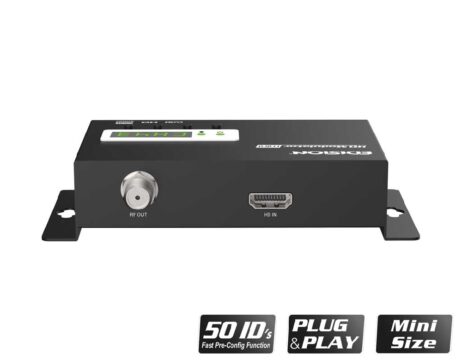

Digital, single channel FULL HIGH DEFINITION modulator in mini size. With input from any HDMI source (Terrestrial & Satellite decoders, cameras, DVD, DVR, etc.), it modulates and produces output up to FULL HIGH DEFINITION 1080p MPEG4, Terrestrial Digital DVB-T signal, in VHF / UHF bands. Easy and fast configuration with the ID Pre-Config function and space saving in the installation with highly compact dimensions for an easy installation, even in minimal space conditions.
Technical features:
– Digital single-channel HDMI Modulator to DVB-T/MPEG4
– INPUT signal: HDMI
– OUTPUT signal: Digital Terrestrial DVB-T signal, MPEG4
– High Video Resolution up to 1080p@30FPS
– Aspect Ratio 16:9 wide screen, 4:3 letter box, 4:3 pan scan
– Frequency Range VHF (CH. 5-12) & UHF (CH. 21-69)
– RF Output Level: Factory default 90 dbμV, with adjustable gain up to +6dbμV or attenuation up to -14dbμV
– MER: >35dB at Maximum RF output level
– Symbol Rate Up to 31.668 MBPS
– Bandwidth 7MHZ, 8MHZ
– Video Encoder: MPEG1, MPEG2 MP@HL , MPEG4 SP@L3 to ASP@L5, MPEG4 AVC HP @level4.1, MP@level4.1
– Audio Encoder: MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH)
– Processor System: CPU 200MHz 32Bits RISC
– Memory DDRII 16bit 512Mbits (Embedded) & NOR Flash 32Mbit
– Input HDMI v1.4a
– USB Type USB 2.0 HOST
– Fast Pre-Config Function / 50 IDs Selectable
– Backup Config File by USB
– Software Upgrade via USB
– Ports: HDMI IN, RF OUT, USB, DC 5V, GROUND
– 4-digit LED display
– 4-display buttons
– Power supply unit type: Adapter Input:100~240V AC, Output: DC 5V/2.0A
– Low Power Consumption in normal working mode: 10W maximum
Package includes:
– HDMI Modulator mini
– Power Supply Unit 5V/2.0A
– Mounting screws
– User Manual EN/DE/GR/ES/IT/FR
General:
– Dimensions: 132x84x31 mm (mini size)
– Weight: 0,35 kg
– Color: black
– Warranty: 2 years
