Lýsing
Cat8.1 U-FTP patch kaplar. Þessi netkapall er skermaður, LSZH kapall.

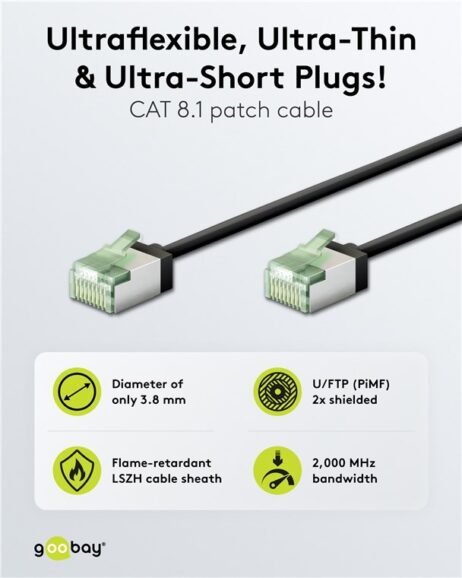

Ultra-Flexible CAT 8.1 Patch Cable, Slim, U/FTP, black
extra-short plugs, 99.9 % oxygen-free copper conductor (OFC), LSZH, TPE sheath, AWG 32
A CATegory of its own: The super-slim CAT cables with extra-short connectors drastically reduce the volume of material in server cabinets and patch panels – for significantly improved air circulation and less heat build-up than with conventional cabling. In addition, the soft TPE jacket and slim copper conductors provide the special flexibility and material efficiency that make this cable generation the perfect network partner.
- Super-thin LAN cable with extra-short RJ45 connectors for a reduced cable volume in the server cabinet or patch panel, resulting in optimised air circulation

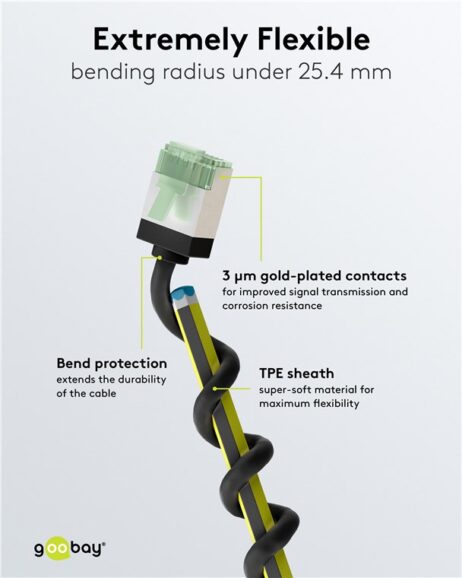

- Safe and flexible: Without twisted pair shielding and with a low-smoke, halogen-free TPE jacket for a particularly small bending radius and high flexibility
- With AWG 32 and an outer diameter of 3.8 mm, the cable is ultra-slim but just as powerful as a standard CAT cable
- The high-speed network cable is perfect for Ethernet networks with 25/40GBASE-T (40 Gigabit-capable) and backwards compatible with 10BASE-T, 100BASE-TX, 1000BASE-T 10GBASE-T and 10/100/1000/10000 Mbit/s
- With a transmission bandwidth of up to 2 GHz (2,000 MHz), the Ethernet cable has 4 times the bandwidth of CAT 6A cables
- The RJ45 cable is suitable for Power over Ethernet (PoE, PoE+, UPoE, 4PPoE) and HDBaseT
- The compact bend protection effectively prevents cable breakage and ensures a long service life for the Ethernet cable

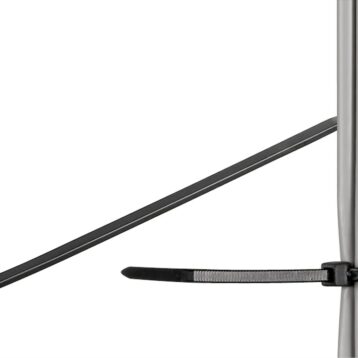

The products are only labelled with a paper label, plastic bags and plastic cable ties are not used.
Compliant with applicable IEC and ISO standards:
- IEC 60332-1: Flame retardant
- IEC 61034: Low smoke
- IEC 60754-2: Halogen-free
- ISO 11801: Performance Fluke channel test: channel + PoE

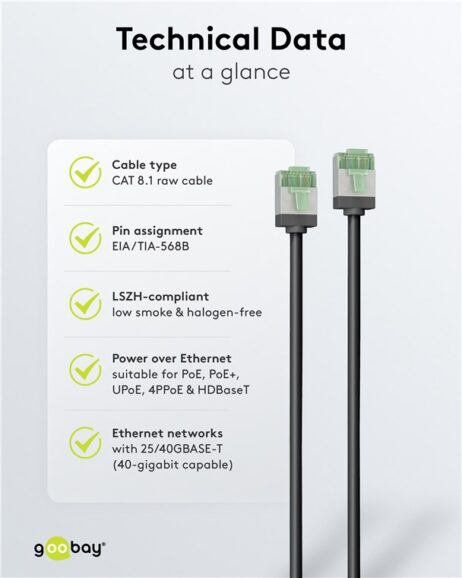

Technical specifications
Connections
- Connection, type RJ45 male (8P8C)
- Kink protection both sides
- Connection 2, type RJ45 male (8P8C)
- Latch protection both sides
- Connection, contact material gold-plated 3µm
- Contacting EIA/TIA-568 B
Cable
- Cable length 0,5 m
- Specification CAT 8.1
- Cable type Slimcable (super-flexible)
- Shielding class U/FTP
- Number of shieldings 1 x
- Type 1, shielding foil (alu) PiMF
- AWG 32/7 (stranded)
- Inner conductor material CU (copper)
- Material cable sheath LSZH-TPE
- Cable sheath diameter (approx.) 3.8 mm
- bending radius > 25.4 mm
Signal transmission
- max. bandwidth 2000 MHz
- Impedance 100 Ω
General
- Color black
- Markings WEEE, CE
- Special feature Length indication on connector
- Operating temperature from -20 °C
- Operating temperature up to 75 °C
- Packaging type Cable Tag
- Dimensions / Weight
- Consumption Unit 1 pc. bulk
