Lýsing
Cat8.1 S-FTP patch kaplar. Þessi netkapall er skermaður, LSZH kapall.
Lýsing:
Reliable performance of the patch cable in CAT 8.1 channels is best ensured when combined with the GHMT-certified components listed below.
Cable transmission characteristics were tested in a 2-connector channel over a transmission distance of 24 m for compliance with the specifications for Class I up to 2 GHz according to ANSI/TIA-568.2-D (2018-09):
2 Connector Channel Copper, Class I up to 2 GHz

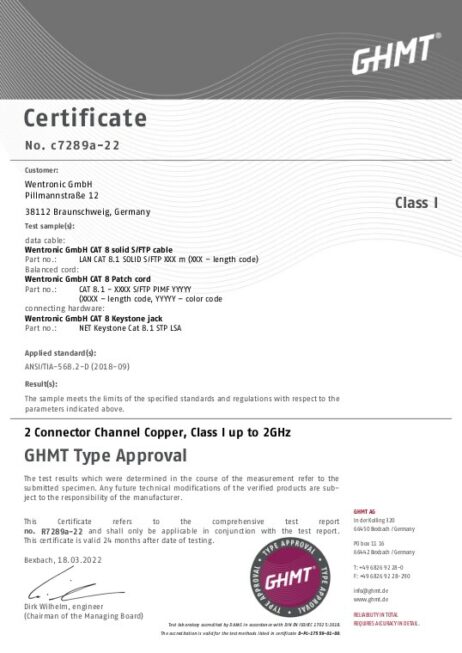

GHMT Type Approval
Balanced cord: Wentronic GmbH CAT 8 patch cord
Part no.: CAT 8.1 – 3 m S/FTP PiMF white
Certified patch cables: 61091, 61092, 61093, 61094, 61095, 61102, 61103, 61104, 61105, 61106, 61113, 61114, 61115, 61116, 61117
Certified installation cables: 61126, 61127, 61128
Certified Keystone coupler: 61140
- The 3 m LAN cable supports 25GBase-T and 40GBase-T Ethernet networks (40-gigabit capable) and is backwards compatible with 10BASE-T, 100BASE-TX and 1000BASE-T.
- With a transmission bandwidth of up to 2,000 MHz, the Ethernet cable has 4 times the bandwidth of a CAT 6A cable.
- GHMT-certified for a transmission distance of 1x 24 m installation cable plus 2x 3 m patch cord in a 2-connector channel (8.1 Standard Class I with an operating frequency of up to 2 GHz)
- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- Assembled on both ends with RJ45 connectors (8P8C) with 50 μm gold-plated contact surfaces and latch protection.
- CAT 8 LAN cable is suitable for Power over Ethernet (PoE, PoE+, UPoE, 4PPoE) and HDBaseT.
- Low-smoke and halogen-free LSZH cable sheath
The products are only labelled with a paper label, plastic bags and plastic cable ties are not used.
Connections
- Contacting EIA/TIA-568 B
- Connection, type RJ45 male (8P8C)
- Connection, contact material gold-plated 50µm
- Connection 2, type RJ45 male (8P8C)
- Connection, housing material PVC
- Connection, shielding yes
- Latch protection both sides
- Kink protection both sides
- Cable Specification CAT 8.1
- Cable length 3 m
- Cable sheath diameter (approx.) 6.2 mm
- Cable type Cat 8.1 raw cable
- Inner conductor material CU (copper)
- AWG 26/7 (stranded)
- Number of shielding 2 x
- Type 1, shielding foil (alu) PiMF
- Type 2, shielding braid (alu) overall shield
- Shielding class S/FTP (PiMF)
- Material cable sheath LSZH
- LSZH compliant yes
- Signal transmission max. bandwidth 2000 MHz
- Outer sheath material LSZH
- Color white
- Markings WEEE, CE, GHMT Premium Verification Programm
- Special feature Length indication on connector
- Packaging type Cable Tag
