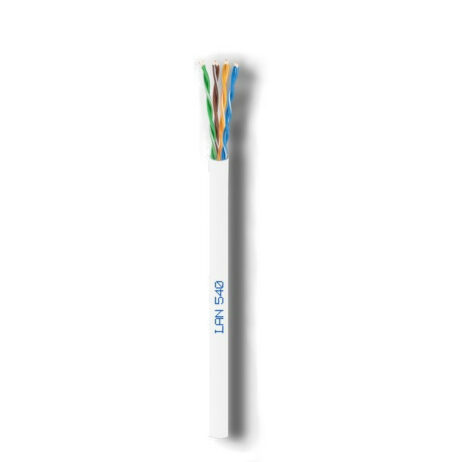

Netkapall frá Cavel – LAN540

Lýsing

Cavel er kapalframleiðandi á Ítalíu sem að framleiðir aðeins hágæða kapla. Við bjóðum hér helstu gerðir af kapli frá þeim.  Þessi fæst á 300 metra rúllum. Seljum hann í metravís hér.

Application		Primary (Campus), Secondary (Riser), Tertiary (Horizontal)
		IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T
		IEEE 802.5 16 MB: ISDN; TPDDI; ATM
		Power over Ethernet (PoE)/PoE+
acc. to Standard		EIA-TIA 568A
		ISO/IEC 11801 2° ed.
		IEC 61156-5
		EN 50173
		EN 50288-3-1
		IEEE 802.3at
Fire-Resistance Rating		IEC 60332-1
CONSTRUCTION DATA
Inner Conductor	Ø mm	0,51
	material	Cu
Insulation	Ø mm	0,90
	material	PE
Outer Sheath	Ø mm	5,1
	material	PVC
PHYSICAL DATA
Copper Content	kg/km	14,3
Cable Weight	kg/km	31,0
Min bending radius x 1/n	mm	20/40
Max.Tensile Strength	N	100
Fire Load	MJ/km	398
	kWh/km	111
ELECTRICAL DATA
Impedance	Ohm	100±5@100 MHz
Capacitance of Twisted Pair (@800Hz)	pF/m	48
Velocity Ratio	%	67
Attenuation (at 20°C )
at 1 MHz	dB/100m	1,9
at 10 MHz	dB/100m	6,0
at 20 MHz	dB/100m	8,5
at 31,2 MHz	dB/100m	10,7
at 62,5 MHz	dB/100m	15,7
at 100 MHz	dB/100m	19,8
at 155,5 MHz	dB/100m	24,2
at 200 MHz	dB/100m	27,5
at 250 MHz	dB/100m	29,2
at 300 MHz	dB/100m	32,0
NEXT
at 1 MHz	dB	71,0
at 10 MHz	dB	56,0
at 20 MHz	dB	51,0
at 31,2 MHz	dB	49,0
at 62,5 MHz	dB	44,0
at 100 MHz	dB	41,0
at 155,5 MHz	dB	38,0
at 200 MHz	dB	36,0
at 250 MHz	dB	35,0
at 300 MHz	dB	34,0
Coupling Attenuation	dB	> 45
DC Conductor Resistance	Ohm/km	95,0
Loop resistance	Ohm/km	190,0
Sheath Insulation Voltage (DC, 1 min)	kV	1,0
