Lýsing

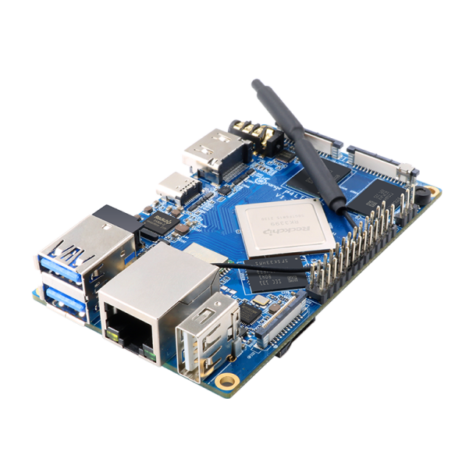

Orange Pi 4 LTS er open-source single board computer með 2ja banda WiFi og Bluetooth 5.0. Hún er serstaklega nett, aðeins 56X91mm. Er í svipuðu formi og Raspberry pi.
Orange Pi 4 LTS uses the Rockchip RK3399(28nm HKMG Process), and has 3 GB /4GB LPDDR4 SDRAM, 16GB EMMC Flash（option）. It can run Android 8.1,Ubuntu16.04,Ubuntu18.04,Debian9. Orange Pi 4 LTS offers a range of different ports, including HDMI output, 26pin headers, LCD connector, Gbps Ethernet port, 2*USB 2.0, 1*USB 3.0, 1*USB 3.0 TYPE-C, mini PCIE connector etc. It is powered through DC and Type-C. It is a good choice for applications that need strong networking perfomance.
Orange Pi 4 LTS is for anyone who wants to start creating with technology- not just consuming it. lt’s a simple, fun, useful tool that you can use to start taking control of the world around you.Nánari upplýsingar hér
Hugbúnaður hér
Hardware specification
| SOC | Rockchip RK3399 (4GB) Rockchip RK3399-T(3GB) |
| CPU | • Based on the large and small size of big.LITTLE core architecture:Dual-core Cortex-A72 (large core)+ Quad-core Cortex-A53(small core) • 6-core ARMR64-bit processor ,main frequency speeds up to 1.6GHz(3GB)/1.8 GHz(4GB) |
| GPU | • High-performance Multi-core Mali-T860 GPU • Supports OpenGL ES1.1/2.0/3.0/3.1,OpenVG1.1,OpenCL,DX11 • Support for AFBC |
| PMU | RK808 PMU |
| Memory | 3 GB /4GB LPDDR4 |
| Onboard Storage | • 16GB EMMC Flash (option) • MicroSD (TF) Card Slot |
| Onboard Ethernet | Support 10/100M/1000M Ethernet (YT8531C) |
| Onboard WiFi+BT | • CDW.20U5622-00 • Support IEEE 802.11 a/b/g/n/ac, 2T2R • Support BT 5.0 |
| Video | • HDMI 2.0,Supports 4K@60fps output • 1* DP 1.2(Display Port), Supports 4K@60fps output • Supports Dual MIPl-DSI ( 4 lines Per Channel ) |
| Audio | • Output: 3.5mm Jack and HDMI2.0a • lnput: MIC |
| Camera | 2 * MIPI-CSl Camera Connector (MIPI_RXO、MIPI_TX1/RX1) |
| USB | 2 * USB2.0 ,1*USB3.0,1 * USB3.0 Type-C |
| Debug UART | 3 Pin |
| GPIO | 26 Pin |
| PCIe | Support Mini PCIe port |
| Key | Upgrade Key & Reset Key |
| Power Supply | DC 5V/3A or 5V/4A, TYPE-C 5V/4A |
| LED | Power led & Status led |
| Supported OS | Android, Ubuntu, Debian |
Appearance specification introduction
| Dimension | 56mm*91mm |
| Weight | 49g |
