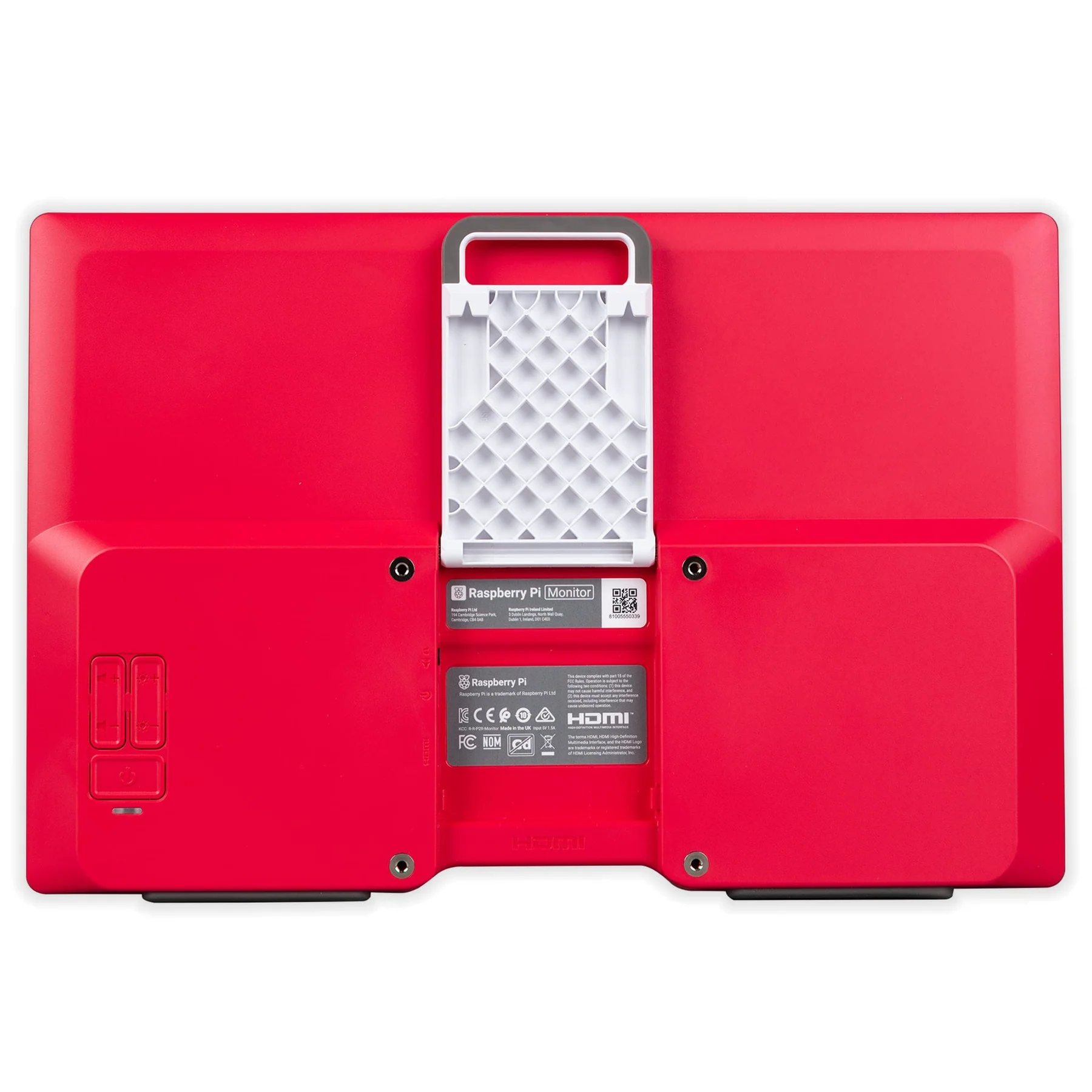

The Raspberry Pi Monitor is a 15.6″ full HD IPS HDMI computer display. User-friendly, versatile, compact and affordable, it is the perfect desktop display companion for Raspberry Pi computers such as Raspberry Pi 500, Raspberry Pi 5 and also other general HDMI devices.
With built-in audio via two front-facing speakers, VESA and screw mounting options as well as an integrated angle-adjustable stand, the Raspberry Pi Monitor is ideal for desktop use or integration into projects and systems.
It can be powered directly from a Raspberry Pi’s USB port using the included USB-A to USB-C cable, or by a separate USB-C power supply (5V 1.5A required). When powered by Raspberry Pi, brightness will be limited to 60%, and volume limited to 50%.
Raspberry Pi Compatibility
Here’s a quick summary of the Raspberry Pi boards this display is compatible with, and the extra parts you’ll need.
As per our usual advice, always use an official Raspberry Pi power supply for maximum performance, compatibility and reliability:
- Raspberry Pi 5, 4, Pi 500 and Pi 400 – you’ll need a Micro-HDMI cable (not included). The display can be powered via a USB port on the Pi using the included USB-C cable.
- Raspberry Pi 3B+/3B/2/B+/A+ – you’ll need a full-size HDMI cable (not included). The display can be powered via a USB port on the Pi using the included USB-C cable.
- Raspberry Pi Zero 2 (all models) – you’ll need a Mini-HDMI cable (not included).
Features
- 15.6″ full HD 1080p IPS display
- Integrated angle-adjustable stand
- Built-in audio via two front-facing speakers
- Audio out via 3.5mm jack
- Full-size HDMI input
- VESA (100mm) and screw mounting options
- Volume and brightness control buttons
- USB-C power cable
Specifications
Display
- Screen size: 15.6″, 16:9 ratio
- Panel type: IPS LCD with anti-glare coating
- Display resolution: 1920×1080
- Colour depth: 16.2M
- Brightness (typical): 250 nits
Power
- 1.5A at 5V
- Can be powered directly from a Raspberry Pi USB port (max 60% brightness, 50% volume) or by a separate USB-C power supply (max 100% brightness, 100% volume)
Connectivity
- Standard full-size HDMI port (1.4 compliant)
- 3.5mm stereo headphone jack
- USB-C (power in)
Audio
- 2×1.2W integrated speakers
- Support for 44.1kHz, 48kHz, and 96kHz sample rates
Resources
- Raspberry Pi Monitor Announcement Blog Post
- Raspberry Pi Monitor Product Brief
- Raspberry Pi Monitor Documentation
- Production lifetime: The Raspberry Pi Monitor will remain in production until at least January 2034
- Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com
- Product numbers:
- White/Red: Raspberry Pi SC0940
- EAN:
- White/Red: 5056561804163
Package Contents
- 1x Raspberry Pi Monitor
- 1x USB-A to USB-C cable
- 1x Printed Information Booklet
Raspberry Pi, power supply and HDMI cables not included.
