Lýsing
Loftnetsmælar, gervihnattabúnaður og fleira..
Nú er loksins á Íslandi hægt að fá mælitæki og annað frá Rover Laboratories S.p.A. á Ítalíu. Þeir hafa framleitt rafeindabúnað síðan 1972 í þorpi sem heitir Rivoltella del Garda, í Colombare di Sirmione við Garda vatnið (frægur ferðamannastaður). Núna starfa þeir í 2500 fermetra nútíma verksmiðju 120 Km frá Mílanó. Fyrirtækið skiptist í tvær deildir, mælitækjadeild sem framleiðir loftnetsmæla, gervihnattamæla og fleira. Hinsvegar er það gervihnattadeildin sem framleiðir móttökubúnað fyrir sjónvarpsstöðvar og kapalkerfi.
ROVER Instruments CATALOGUE 20 – v13,1
HD TAB 9Plus
SPECIAL FUNCTIONS
- ETR 101-290 T.S. Analyzer
- Exclusive patented ROVER AUTODISCOVERY system: auto-matically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum mode
- HELP function: automatically identifies all the signals with digital modulation SAT, TV and CATV
- Automatic Assistant: Signal Quality analysis, Channel Scan memorization
- Barscan TV & CATV function from 10 to 100 channels on one screen
- Buzzer & Noise Margin real time graph for digital signals microinterruptions
- Reflectometric measurements APP
- PRODRIVE TEST: REMOTE MONITORING and LOGGING: TS, measurements, spectrum, thumbnails
- Optical Input signals
- SATELITE: DiSEqC, SCR & dCSS commands, motorized antenna, dual LNB, SAT FINDER and SAT EXPERT
- Custom Channel Plans: 25 (199 ch. per plan), Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard
- Loggers: TV, SAT & combined with stop & go function
- SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite
SPECIFICATIONS: MEASUREMENTS & SPECTRUM ANALYSI
- Frequency Range: 4-1250 MHz; SAT: 950–2250 MHz (2610 with Sat extension opt.).
- Frequency Resolution: TV & CATV 25 KHz; SAT: 5 or 1 MHZ selectable
- Power range Measurement: TV 28 to 130 dBμV, SAT 30 to 130 dBμV
- Digital Measurement: Digital Power, MER (32 to 42 dB depending on modulation), BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER
- Analog Measurement & Picture: Analog level, V/A ratio
- Measurement Resolution: 0.1 dB
- Level Measurement Accuracy: 1 dB typ. (2 dB max.)
- Resolution Filter Bandwidth: TV & CATV: 100 KHz @ -3 dB; SAT: 1 MHz or 5 MHz @ -3 dB selectable
- Constellation: for TV/CATV and SAT signals.
- Spectrum: Real time, Max Hold and spectrum memorization with real time compare function
- Net-id on board: Net-id, NID, TSID, LCN, SAT Orbit Position
- Echoes, Pre-echoes, Micro-echoes: Representation in real Time
- Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL
- TS: TR 101-290 v1.2.1 ANALYSIS, SI, PMT, bit rate, network delay, MPEG services and tables
- IPTV: measurements and picture decoding (opt.)
OPTICAL MEASUREMENTS
- FC-ST-SC interchangeable input connectors
- Automatic loss calculation
- Wavelengths (nm): 1310, 1490, 1550
- Range: -25 to 10 dBm
- Resolution: 0.1 dB
- Accuracy: +/- 0.5 dB
- Optical to RF conversion
COMM. PORTS AND OUTPUTS
- RF Input: 75 ohm (interchangeable “F”)
- LAN: RJ45 10/100 base Ethernet
- USB 2.0: Type B (PC Interface)
- USB 2.0: Type A (USB drive)
- Digital Pictures: MPEG2-4 SD & HD pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screen
- Audio: AAC supplied, DOLBY
- Asynchronous Serial Interface (ASI): ASI input on 75Ω BNC connector, ASI output on 75Ω BNC connector
- Audio/Video: Composite A/V input, HDMI output
- Common Interface: PCMCIA slot for single/multi-service CAM modules
GENERAL SPECIFICATIONS
- 9” TFT TOUCH display: 16:9 high resolution and high brightness
- Power Supply: Built in LiPo battery with up to 6 hours duration & Battery Test function
- DC voltage at RF input: 5 – 12 – 18 – 24 VDC, DiSEqC, SCR and dCSS commands
- PC Interface: USB-A
- Front-Panel: Alpha numeric keypad
- Power Save: TFT backlight timer, brightness adj.
- PC Management: SMART software
- Weight: only 2,6 Kg with batteries
- Size: H 29,0 x W 17,0 x D 5,5 cm
- Housing: Aluminium and Steel and padded bag

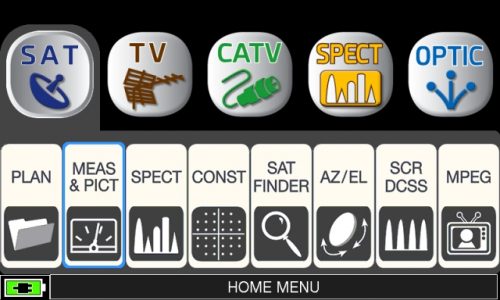

HD TAB 900 Plus
- Frequency Range: TV and CATV TUNER, extended band, 4-1250 MHz; SAT TUNER, extended band, 930-2.610 MHz; GSM extended band, 860-1.000 MHz for telephone repeater installation
- Input Impedance: 75 ohm (interchangeable “F” connector)
- Digital Measurements: Digital Power, MER, BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER
- Analog Measurements & Picture: Analog level, V/A ratio
- Power range Measurements: TV 28 to 130 dBμV, SAT 30 to 130 dBμV
- Net-id on board: Net-id, NID, TSID, LCN, SAT Orbit Position
- Fast spectrum with MAX HOLD: full spect. capabilities with memory peak, variable span and automatic reference level
- Constellation: for TV/CATV and SAT signals
- Echoes, Pre-echoes, Micro-echoes: Representation in real Time
- Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL
- Digital Pictures: MPEG2-4 SD & HD pictures with Program List, Audio Video PIDs,LCN, Video bit Rate all on one screen
- TV Memory plan: World Wide countries with related channels plans pre-memorized
- SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite
- Manual Memory Plan: Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard
- Loggers: TV, SAT & combined with stop & go function
- Audio: AAC supplied, DOLBY (opt.)
- Optical Power meter: with SC connector for fiber optic testing (FTTH & FTTX)
- Free SMART PC interface program and FW upgrades
- 9” TFT TOUCH display: 16:9 high resolution
- DC voltage at RF input: 5 – 12 – 18 – 24 VDC, DiSEqC, SCR and dCSS commands
- Battery: Li-Po battery pack, 3 h duration & Battery Test function
- Power supply & Battery charger: 12 VDC
- USB PC Interface: For SW upgrade on-line and memory plan management
- USB PC Interface: For storage memory stick
- Housing: Metal box and bag elite. Padded bag optional
- Weight: only 1,8 Kg
- Size: H 27,0 x W 15,5 x D 4,0 cm (meter only)
You tube spilunarlisti með HDTAB900 &700
Note *: All technical specifications are subject to change without prior notice. Some options must be requested when ordering the instrument.
HDTAB700 Plus
- Frequency Range: TV and CATV TUNER, extended band, 4-1250 MHz; SAT TUNER, extended band, 930-2.610 MHz; GSM extended band, 860-1.000 MHz for telephone repeater installation
- Input Impedance: 75 ohm (interchangeable “F” connector)
- Digital Measurements: Digital Power, MER, BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER
- Analog Measurements & Picture: Analog level, V/A ratio
- Power range Measurements: TV 28 to 130 dBμV, SAT 30 to 130 dBμV
- Net-id on board: Net-Id, NID, TSID, LCN, SAT Orbit Position
- Fast spectrum with MAX HOLD: full spectrum capabilities with memory peak, variable span and automatic reference level
- Constellation: for TV/CATV and SAT signals
- Echoes, Pre-echoes, Micro-echoes: Representation in real Time
- Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL
- Digital Pictures: MPEG2-4 SD & HD pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screen
- TV Memory plan: World Wide countries with related channels plans pre-memorized
- SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite
- Manual Memory Plan: Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard
- Loggers: TV, SAT & combined with stop & go function
- Audio: AAC supplied, DOLBY (opt.)
- Optical Power meter: with SC connector for fiber optic testing (FTTH & FTTX)
- Free SMART PC interface program and FW upgrades
- 7” TFT TOUCH display: 16:9 high resolution
- DC voltage at RF input: 5 – 12 – 18 – 24 V, DiSEqC, SCR and dCSS
- Battery: Li-Po battery pack, 2 h duration
- Power supply & Battery charger: 12 Vdc, 1A
- USB PC Interface: For SW upgrade and memory plan management
- USB PC Interface: For storage memory stick
- Housing: Metal box and Elite bag
- Weight: only 1,4 Kg
- Size: H 25,5 x W 13,0 x D 4,0 cm (meter only)
You tube spilunarlisti með HDTAB900 &700
Note *: All technical specifications are subject to change without prior notice. Some options must be requested when ordering the instrument.
HDTAB700
- Frequency Range: TV and CATV TUNER, extended band, 4-1250 MHz; SAT TUNER, extended band, 930-2.610 MHz; GSM extended band, 860-1.000 MHz for telephone repeater installation
- Input Impedance: 75 ohm (interchangeable “F” connector)
- Digital Measurements: Digital Power, MER, BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER
- Analog Measurements & Picture: Analog level, V/A ratio
- Power range Measurements: TV 28 to 130 dBμV, SAT 30 to 130 dBμV
- Net-id on board: Net-Id, NID, TSID, LCN, SAT Orbit Position
- Fast spectrum with MAX HOLD: full spectrum capabilities with memory peak, variable span and automatic reference level
- Constellation: for TV/CATV and SAT signals
- Echoes, Pre-echoes, Micro-echoes: Representation in real Time
- Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL
- Digital Pictures: MPEG2-4 SD & HD pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screen
- TV Memory plan: World Wide countries with related channels plans pre-memorized
- SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite
- Manual Memory Plan: Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard
- Loggers: TV, SAT & combined with stop & go function
- Audio: AAC supplied, DOLBY (opt.)
- Optical Power meter: with SC connector for fiber optic testing (FTTH & FTTX) (opt.)
- Free SMART PC interface program and FW upgrades
- 7” TFT TOUCH display: 16:9 high resolution
- DC voltage at RF input: 5 – 12 – 18 – 24 V, DiSEqC, SCR and dCSS
- Battery: Li-Po battery pack, 2 h duration
- Power supply & Battery charger: 12 Vdc, 1A
- USB PC Interface: For SW upgrade and memory plan management
- USB PC Interface: For storage memory stick
- Housing: Metal box and Easy bag (Elite bag opt.)
- Weight: only 1,4 Kg
- Size: H 25,5 x W 13,0 x D 4,0 cm (meter only)
You tube spilunarlisti með HDTAB900 &700
Note *: All technical specifications are subject to change without prior notice. Some options must be requested when ordering the instrument.
TAB 5 ULTRA
- Exclusive patented ROVER AUTODISCOVERY system: auto-matically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum mode.
- Automatically identifies all the signals with digital modulation SAT, TV and CATV.
- Automatic Assistant: Signal Quality analysis, Channel Scan memorization.
- Barscan TV & CATV function from 10 to 100 channels on one screen.
- Buzzer & Noise Margin real time graph for digital signals microinterruptions.
- Reflectometric measurements APP.
- Optical Input (opt.).
- WI-FI analyzer (opt.).
- HEVC H265 decoder (opt.).
- SATELITE: DiSEqC, SCR, dCSS & Motorized antenna commands, SAT FINDER & SAT EXPERT.
- Custom Channel Plans: 25 (199 ch. per plan), Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard.
- Loggers: TV, SAT & combined with stop & go function.
- SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite.
- Free S.M.A.R.T. PC interface program and FW upgrades.
- OPTIONS*: Check the Cross reference.
SPECIFICATIONS: MEASUREMENTS, SPECTRUM ANALYSIS & PICTURES
- Frequency Range: TV, CATV & Radio: 30-1.000 MHz; SAT: 700–2.700 MHz.
- Frequency Resolution: TV & CATV 25 KHz; SAT: 5 MHz.
- Power range Meas.: TV 35 to 115 dBμV, SAT 5 to 105 dBμV.
- Digital Meas: Digital Power, MER (36 to 40 dB max depending on modulation), BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER.
- Measurement Resolution: 0.1 dB.
- Level Measurement Accuracy: 1 dB typ. (2 dB max.)
- Resolution Filter Bandwidth: TV & CATV: 100 KHz @ -3 dB; SAT: 5 MHz @ -3 dB.
- Constellation: for TV/CATV and SAT signals.
- Spectrum: Fast spectrum, Max Hold and spectrum memorization with real time compare function.
- Net-id on board: Net-id, NID, TSID, LCN, SAT Orbit Position.
- Echoes, Pre-echoes, Micro-echoes: Representation in real Time.
- Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL.
- Digital Pictures: MPEG2-4 SD & HD, HEVC (opt.) pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screen.
OPTICAL MEASUREMENTS
- SC input connector.
- Automatic loss calculation.
- Wavelengths (nm): 1310, 1490 & 1550.
- Range: -25 to +6 dBm.
- Resolution: 0.1 dB.
- Accuracy: +/- 0.5 dB.
- Optical to RF conversion.
COMM. PORTS AND OUTPUTS
- RF Input : 75 ohm (interchangeable “F”).
- USB 2.0: Type B (PC Interface).
- Audio: AAC supplied, DOLBY (opt.).
- Video: Composite Video input.
GENERAL SPECIFICATIONS
- 5” TFT TOUCH display: 16:9 high resolution and high brightness.
- Power Supply: Built in LiPo battery with 2 to 4 hours duration (depending on the function) & Battery Test function.
- DC voltage at RF input: 5 – 12 – 18 – 24 VDC, DiSEqC, SCR & dCSS commands.
- PC Interface: USB-B.
- Front-Panel: Alpha numeric keypad.
- Power Save: TFT backlight timer, brightness adj.
- PC Management: S.M.A.R.T. software.
- Weight: only 1,4 Kg with batteries.
- Size: H 13,0 x W 25,5 x D 4 cm.
- Housing: Aluminium and Steel and padded bag.
OPTIONS
- Optic Ingress
- Decoding HEVC H265 images
- WI-FI analyzer
- Dolby Audio AC3 DD+
- Elite bag with extra padding
HD TAB 4 Touch
- ACCURATE & EASY TO USE
- DVB-S/S2, DVB-T/T2, DVB-C
- ALL DIGITAL MEASUREMENTS
- DiSEqC & SCR dCSS
- FULL MPEG 2 – 4 SD & HD PICTURES
- ANALOG TV MEASUREMENTS and PICTURES & VIDEO INPUT
- AUTOMEMORY & AUTOQUALITY
- SPECTRUM WITH MEMORY PEAK
- ROBUST METAL HOUSING
- RAIN PROOF BAG
- LONG DURATION LI-PO BATTERIES
Nánari upplýsingar:
- requency Range: TV 44 to 880 MHz, SAT 930 to 2.250 MHz. Level accuracy: 3 dB
- Input Impedance: 75 ohm (interchangeable “F” connector)
- Power range Measurements: TV and SAT from 30 to 100 dBμV, 120 dBμV with ext. attenuator
- Net-id
- Spectrum with MAX HOLD: full spect. capabilities with memory peak, variable span and automatic reference level
- Constellation: for TV/CATV and SAT signals
- Digital Measurements: Digital Power, MER, BER, PER
- Analog Measurements and Picture: Analog level, V/A ratio
- Quality: Digital Auto quality Test
- Digital Pictures: MPEG2-4 SD & HD pictures with Service List & Video bit Rate
- TV Memory Plan: World Wide countries with related channels plans pre-memorized
- SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite
- Manual Memory Plan: Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard
- Loggers: TV, SAT & combined with stop & go function
- Free SMART PC interface program and FW upgrades
- 4,3” TFT TOUCH display: 16:9 high resolution.
- DC voltage at RF input: 5 – 12 – 18 – 24 VDC, DiSEqC, SCR and dCSS commands.
- Battery: Rechargeable Li-Po battery pack, 3 hour duration.
- Power supply & Battery charger: 12 VDC 1A.
- USB PC Interface: For SW upgrade and memory plan management
- Housing: Metal box and rain proof bag.
- Size: H 12,0 x W 18,5 x D 4,5 mm (meter only).
- Weight: 1 Kg.
- Easy bag supplied (elite bag optional).
