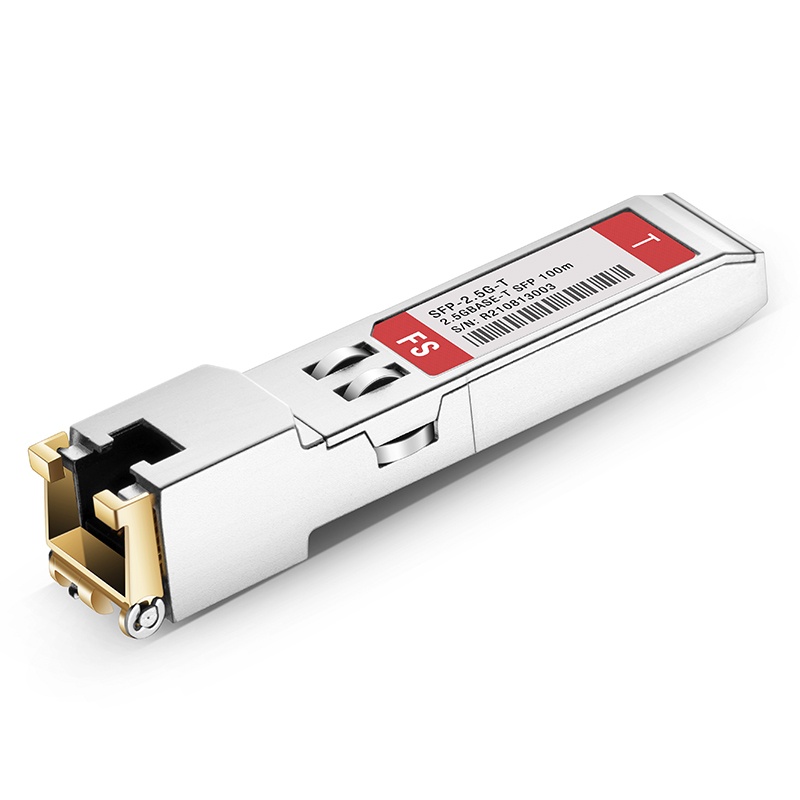

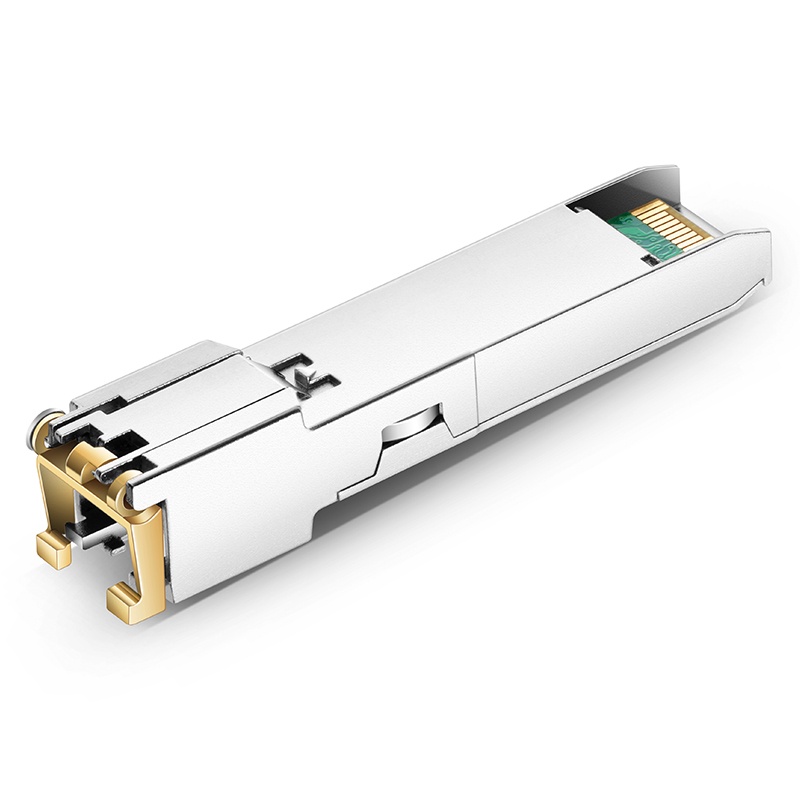

2.5GBASE-T SFP Transceiver Module (Copper, 100m, RJ-45)
2.5GBASE-T compatible SFP transceiver supports up to 100m link lengths over a copper connection via a RJ-45 connector. Each SFP transceiver module is individually tested to be used on a series of Generic switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption and high speed, the 2.5G SFP transceiver is ideal for enterprise networking for LAN applications and different other networking places using cooper connections.
Product Highlights
- Built-in Marvell Chip, Max. Power Consumption 2W
- Tested in Targeted Switches for Superior Performance, Quality, and Reliability
- Support 2.5Gbase-T / 1000base-T/ 100base-T on Line Port
- Support 2.5Gbase-X on Host Port
- Terminated RJ45 Connectors, Allowing 2.5G Bandwidth over Existing Copper Infrastructure
-
Compliant to IEEE 802.3 Gigabit Ethernet
-
Hot Pluggable SFP MSA Compliant
-
RoHS Compliant
Specifications
- Part Number SFP-2.5G-T
- Vendor Name FS
- Form Factor SFP
- Max Data Rate 2.5Gbps
- Max Cable Distance 100m
- Media Cat5e
- Connector RJ-45
- Power Consumption < 2W
- DDM/DOM Not Supported
- Commercial Temperature Range 0 to 70°C (32 to 158°F)
- Bit Error Ratio (BER)
- 1E-12 EMC (Electro Magnetic Compatibility)
- Supported Application 2.5 Gigabit Ethernet over Cat 5e cable
- Protocols SFP MSA Compliant, IEEE STD 802.3
