Lýsing

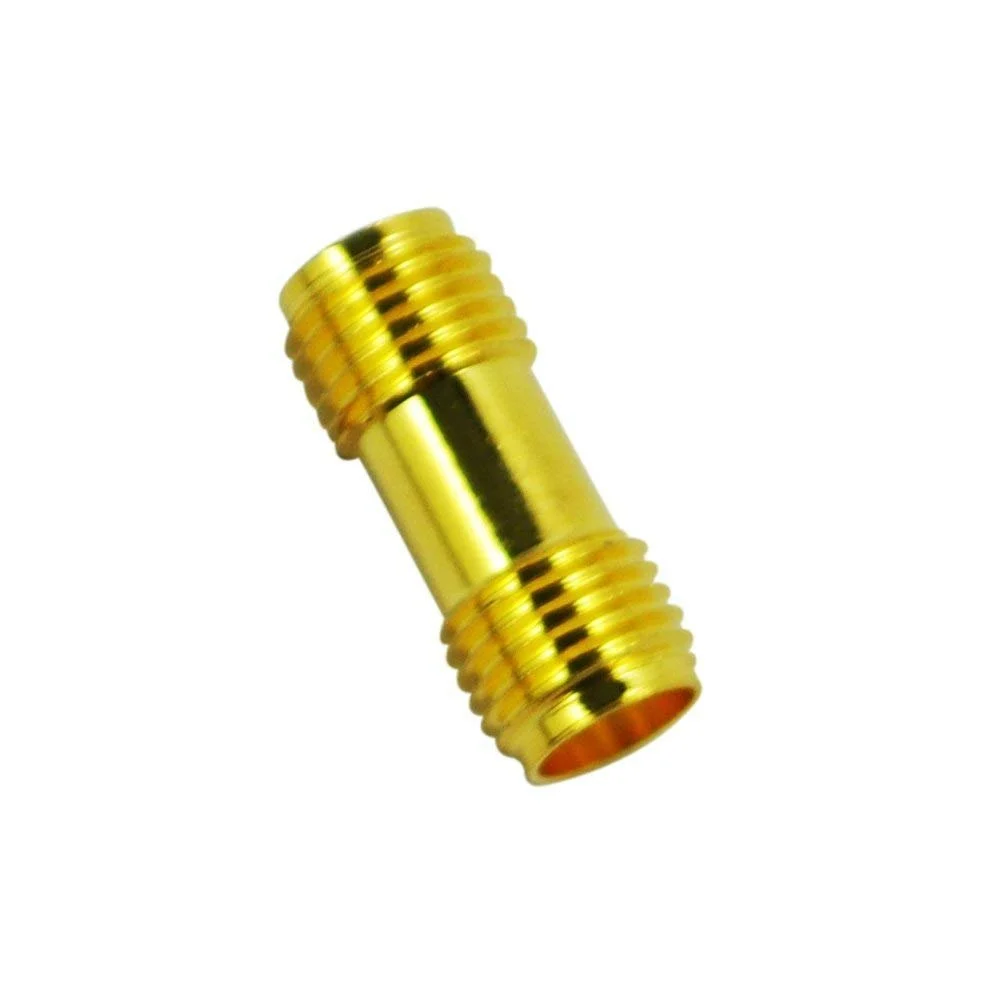

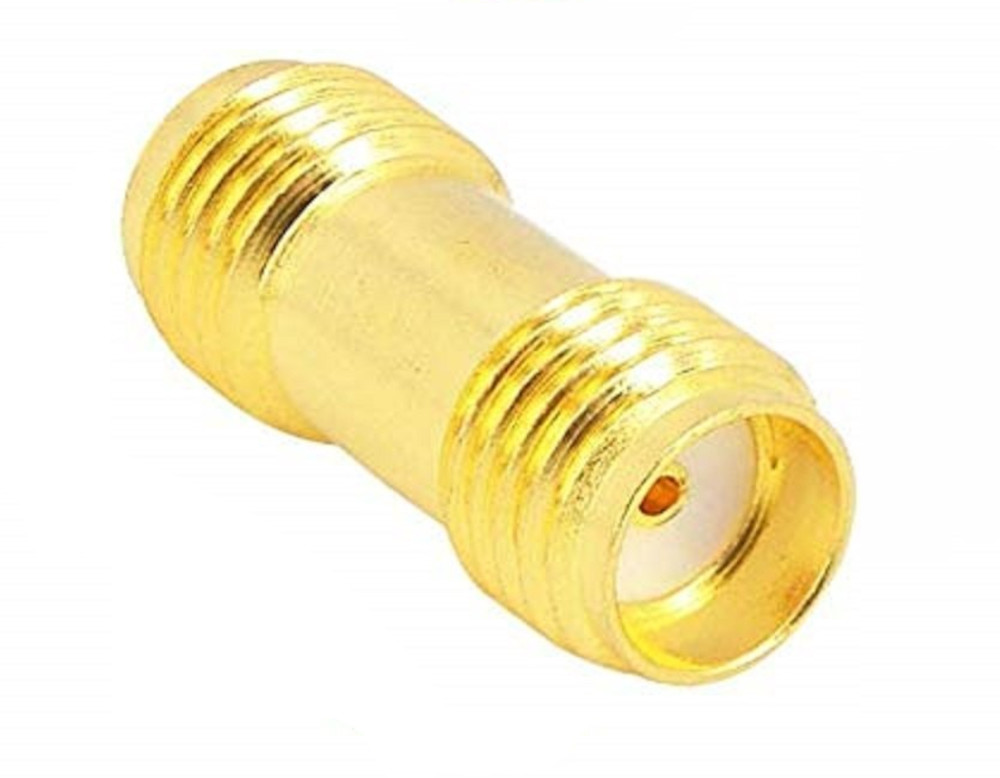

SMA samtengi.
Vönduð SMA Sería af tengjum
| Category | Connectors, Interconnects |
| Family | Coaxial, RF – Adapters -SMA |
| Series | IN-Series |
| Convert From (Adapter End) | SMA Jack, female Pin |
| Convert To (Adapter End) | SMA Jack, female Pin |
| Impedance | 50 Ohm |
| Style |
Straight |
| Material | Brass |
| Plating | Gold-plated |
| Features | – |
| Mounting Type | Free Hanging (In-line) |
Technical characteristics
Temp.range……………….-65～ +165 (PE Cable -～ +85)
Vibration…………………. MIL-STD-202,Method 213
Impedanec………………….50Ω
Frequency Range…………..DC～12.4GHz(0～18GHz)
Working Voltage…………..335V max
Withstand Voltage………. 1000V rms
Contact resistance
Center Contact…………….≤3mΩ
Outer Contact……………..≤2mΩ
Insulation resistance…….≥5000 mΩ
Insertion loss …………….≥0.15 dB/6GHz
VSWR Straight……………≤1.10+0.002f
≤1.05+0.001f
Right angle ………….≤1.20+0.003f
≤1.10+0.001f
Durability(mating)………..≥ 500 (cycles)
MATERIAL & PLATING
shell brass goldplated
inner conductor beryllium or tin brass goldplated
insulator PTFE
crimping suite copper alloy nicked or goldplated
o-ring sealing 6146 silastic
APPLECABLE STANDARD
MIL-C-39012;
CECC 22110;
IEC 60169-15
