Lýsing
Handy wiring tester with colour display and PoE diagnostics up to 90 W
Handy wiring tester with integrated length measurement and tone generator.
In addition, the device recognises PoE up to class 8, 90 W (PoE++), and briefly applies power accordingly to test the PoE supply.
The device has a 3.5″ colour screen with a graphical user interface, making it extremely easy to operate and providing easy-to-understand test results.
Advantages
| Areas of application |
|
| Special characteristics |
|
| Your benefit |
|

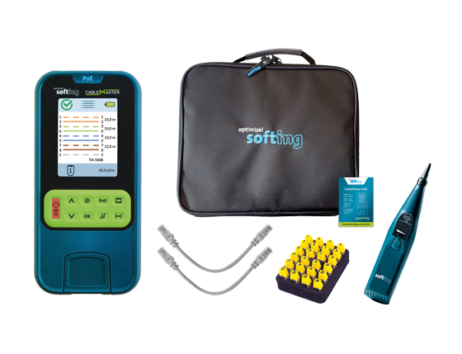

Product details
- 1 CableMaster PoE with integrated remote
- 1 card with QR code with link to manual
- 6 AA batteries (non-rechargeable), integrated in the CableMaster PoE
- 1 RJ45 Port Identifier Set (#1 – #24)
- 2 patch cords,
- 1 CP15 Cable Probe
- 1 storage bag
| Size: 17,5×8,5×3,8 cm |
| Weight with Battery: 400g |
| Power Supply: 6 x AA batteries, not rechargeable |
| Connections: RJ45, Micro USB, Coax via optional adapter |
| Overvoltage protection: 60VDC, 55VAC |
| Operating temperature: -10 to +50 C° |
| Storage temperature: -20 to +60°C |
| Humidity: non-condensing 10%-80% |
| Wiring: TIA568A and B |
| PoE: Class 0 to 8 |
| LED light white |
Hvaða mælir hentar þínum aðstæðum? |
Skoðaðu samanburð mælanna (PDF) |
