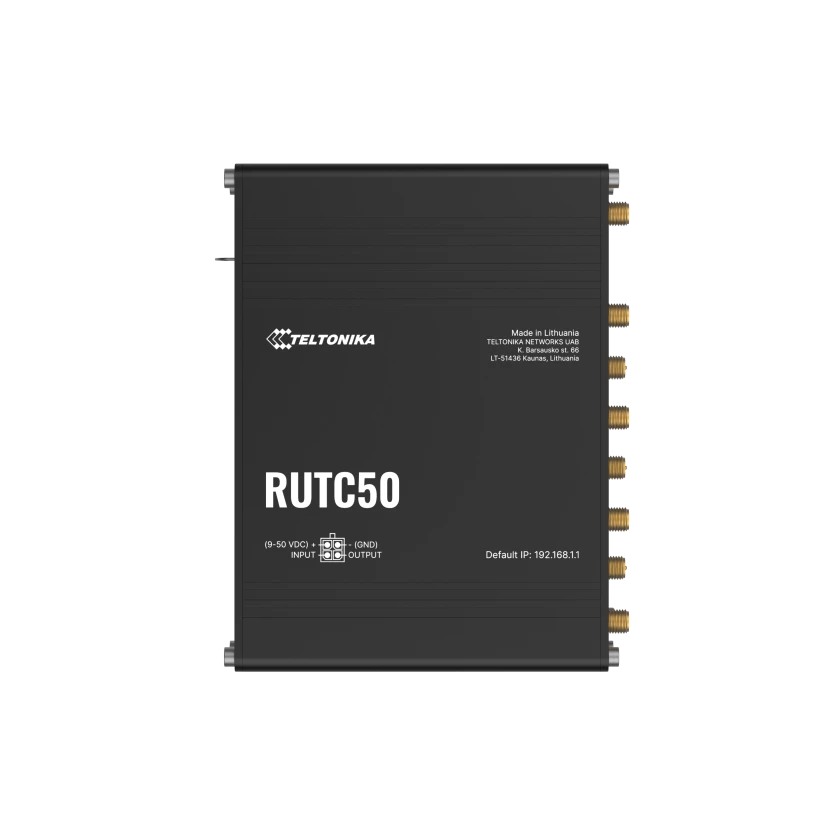

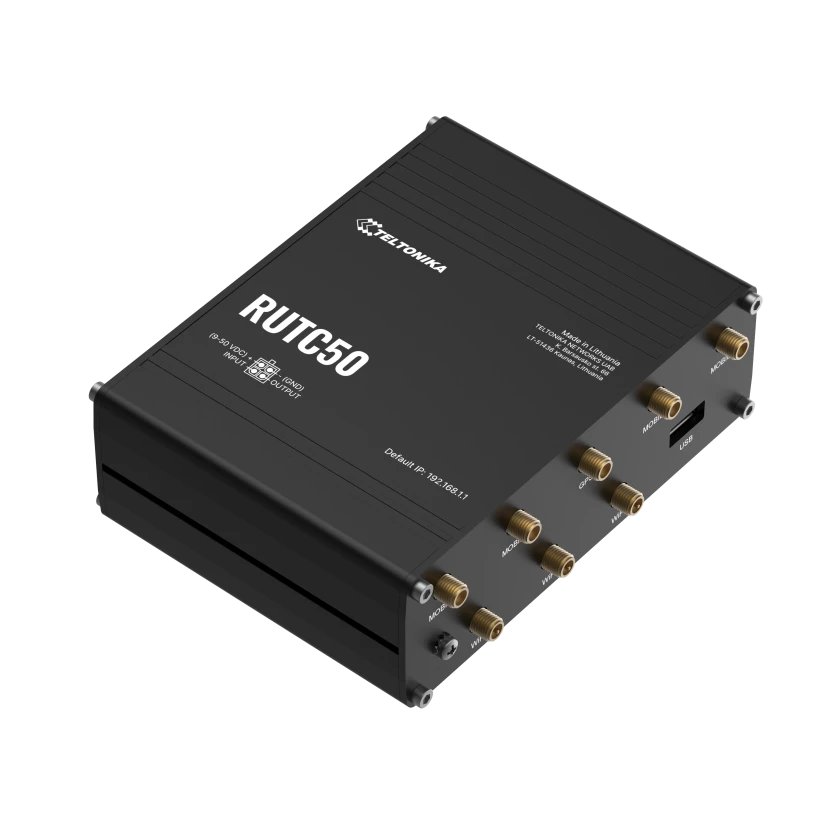

Teltonika 5G Router Cat20/WiFi6 – RUTC50

• Mobile module 5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4×4 MIMO), 900/550 Mbps UL (2×2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 210Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
• 3GPP Release Release 16
• SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
• Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, SIM provider, operator, network type, cell ID, LAC, TAC, ARFCN, UARFCN, EARFCN
• SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• USSD Supports sending and reading Unstructured Supplementary Service Data messages
• Black/White list Operator black/white list (by country or separate operators)
• Multiple PDN Possibility to use different PDNs for multiple network access and services
• Band management Band lock, Used band status display
• SIM idle protection service When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
• APN Auto APN
• Bridge Direct connection (bridge) between mobile ISP and device on LAN
• Passthrough Router assigns its mobile WAN IP address to another device on LAN
• Framed routing Framed routing: support an IP network behind 5G UE

• Wireless mode 802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402Mbps on 5GHz, 576Mbps on 2.4GHz (Dual Band, MU-MIMO)
• Wi-Fi security WPA2-Enterprise – PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect
• SSID/ESSID ESSID stealth mode
• WiFi users Up to 512 simultaneous connections
• Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
• Wireless MAC filter Whitelist, blacklist
• Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information.

• WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
• LAN  4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

• Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
• Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
• VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall Port forward, traffic rules, custom rules
• Firewall status page View all your Firewall statistics, rules, and rule counters
• Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
• Network topology Visual representation of your network, showing which devices are connected to which other devices
• DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
• QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS Supported >25 service providers, others can be configured manually
• Network backup Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
• Load balancing Balance Internet traffic over multiple WAN connections
• Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
• SSHFS Possibility to mount remote file system via SSH protocol

• Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator
• Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN Port and tag-based VLAN separation
• Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
• WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control Flexible access control of SSH, Web interface, CLI and Telnet

• OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
• OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
• IPsec IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
• GRE GRE tunnel, GRE tunnel over IPsec support
• PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
• Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN Method of building scalable IPsec VPNs
• SSTP SSTP client instance support
• ZeroTier ZeroTier VPN client support
• WireGuard
• WireGuard VPN client and server support
• Tinc Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.
• Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

• Supported modes Client, Server
• Supported connection types TCP

• Supported modes Server, Client
• Supported connection types TCP, USB
• Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
• Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
• DATA TO SERVER
• Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
• Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server

• Supported modesStation, Outstation
• Supported connectionTCP

• DLMS Support DLMS – standard protocol for utility meter data exchange
• Supported modes Client
• Supported connection types TCP, USB

• WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
• FOTA Firmware update from server, automatic notification
• SSH SSH (v1, v2)
• SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
• Email Receive email message status alerts of various services
• TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTT MQTT Broker, MQTT publisher
• SNMP SNMP (v1, v2, v3), SNMP Trap
• JSON-RPC Management API over HTTP/HTTPS
• RMS Teltonika Remote Management System (RMS)

• Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
• ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
• Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
• Azure IoT Hub Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

• CPU Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53
• RAM 512MB DDR3
• FLASH storage 16MB serial NOR flash, 512MB serial NAND flash

• WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA Update FW
• RMS Update FW/configuration for multiple devices at once
• Keep settings Update FW without losing current configuration
• Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

• Operating system RutOS (OpenWrt based Linux OS)
• Supported languages Busybox shell, Lua, C, C++
• Development tools SDK package with build environment provided
• GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

• GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
• Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
• NMEA NMEA 0183
• NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
• Server software Supported server software TAVL, RMS
• Geofencing Configurable multiple geofence zones

• Data rate USB 2.0
• Applications Samba share, USB-to-serial
• External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
• Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

• Input 1 x Digital Input, 0 – 6 V detected as logic low, 8 – 50 V detected as logic high
• Output 1 x Digital Output, Open collector output, max output 50 V, 300 mA
• Events Email, RMS, SMS
• I/O juggler Allows to set certain I/O conditions to initiate event

• Connector 4-pin industrial DC power socket
• Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
• PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC
• Power consumption Idle: < 4.5 W, Max: < 13.5 W

• Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
• I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs 4 x WAN status LEDs, 3 x Mobile connection type, 3 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi, 2 x WAN status
• SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
• Power 1 x 4-pin power connector
• Antennas 4 x SMA for Mobile, 3 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
• USB 1 x USB A port for external devices
• Reset Reboot/User default reset/Factory reset button
• Other 1 x Grounding screw

• Casing material Anodized aluminum housing and panels
• Dimensions (W x H x D) 130.4 x 42.6 x 103.4 mm
• Weight 452 g
• Mounting options DIN rail, wall mount, flat surface (all require additional kit)

OPERATING ENVIRONMENT

• Operating temperature -40 °C to 75 °C
• Operating humidity 10% to 90% non-condensing
• Ingress Protection Rating IP30
