Lýsing

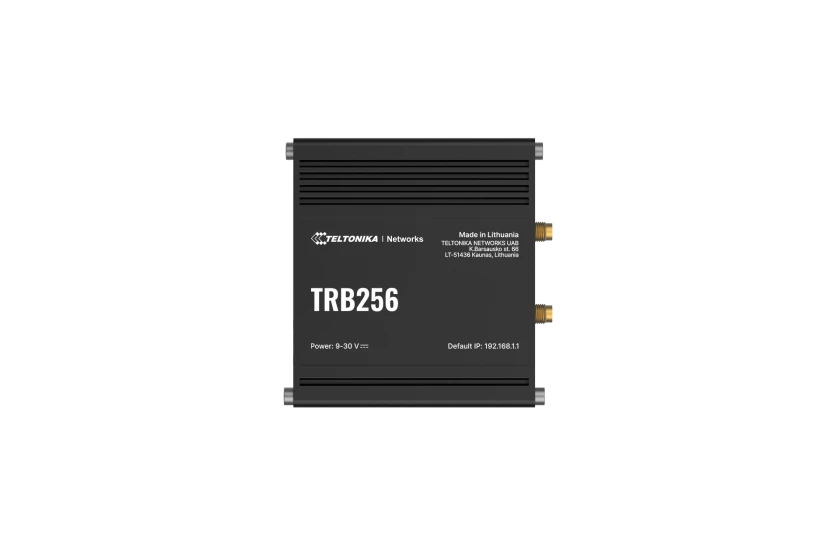

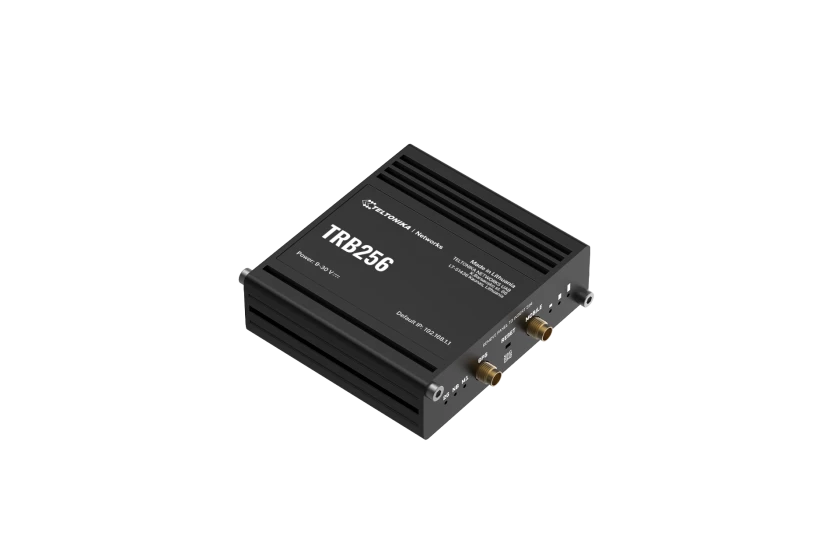

Industrial NB-IoT gateway
Leiðbeiningar hér
Stillingadæmi hér
MOBILE
- Mobile module LTE Cat M1 /Cat NB1, NB2 / EGPRS (simultaneous operation of cellular and GNSS connectivity is not supported)
- SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, on roaming, no network, network denied, data connection fail
- Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
- SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- Black/White list Operator black/white list (by country or separate operators)
- Band management Band lock, Used band status display
- SIM idle protection service When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
- APN Auto APN
- Bridge Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough Gateway assigns its mobile WAN IP address to another device on LAN
ETHERNET
-
Ethernet 1 x ETH port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
NETWORK
- Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
- VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall Port forward, traffic rules, custom rules
- Firewall status page View all your Firewall statistics, rules, and rule counters
- Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Network topology Visual representation of your network, showing which devices are connected to which other devices
- Hotspot Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes
- DHCP Static and dynamic IP allocation, DHCP Relay
- QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS Supported >25 service providers, others can be configured manually
- Network backup VRRP, Wired options, each of which can be used as an automatic Failover, Mobile
- SSHFS Possibility to mount remote file system via SSH protocol
SECURITY
- Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
- Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN Tag-based VLAN separation
- Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
- WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control Flexible access control of SSH, Web interface, CLI and Telnet
VPN
- OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
- IPsec IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN Method of building scalable IPsec VPNs
- SSTP SSTP client instance support
- ZeroTier ZeroTier VPN client support
- WireGuard WireGuard VPN client and server support
- Tinc Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.
BACNET
- Supported modes Router
- Supported connection types RS485, TCP
OPC UA
- Supported modes Client, Server
- Supported connection types TCP
MODBUS
- Supported modes Server, Client
- Supported connection types RTU (RS232, RS485), TCP
- Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
- Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
- Protocol HTTP(S), MQTT, Azure MQTT, Kinesis
- Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server
MODBUS MQTT GATEWAY
-
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
- Supported modes Station, Outstation
- Supported connection types RS232, RS485, TCP
DLMS
-
DLMS Support DLMS – standard protocol for utility meter data exchange. Support trough serial and TCP
API
-
Teltonika Networks Web API (beta) support Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
MONITORING & MANAGEMENT
- WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
- FOTA Firmware update from server, automatic notification
- SSH SSH (v1, v2)
- SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
- Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
- TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT MQTT Broker, MQTT publisher
- SNMP SNMP (v1, v2, v3), SNMP Trap
- JSON-RPC Management API over HTTP/HTTPS
- RMS Teltonika Remote Management System (RMS)
IOT PLATFORMS
- Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
- ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
- Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
- Azure IoT Hub Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
SYSTEM CHARACTERISTICS
- CPU Mediatek, 580 MHz, MIPS 24KEc
- RAM 128 MB
- FLASH storage 16 MB
FIRMWARE / CONFIGURATION
- WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA Update FW
- RMS Update FW/configuration for multiple devices at once
- Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMISATION
- Operating system RutOS (OpenWrt based Linux OS)
- Supported languages Busybox shell, Lua, C, C++
- Development tools SDK package with build environment provided
- GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs.
LOCATION TRACKING
- GNSS GPS. (GLONASS, BeiDou, Galileo and QZSS – under development); (simultaneous operation of GNSS and cellular connectivity is not supported)
- Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
- NMEA NMEA 0183
- NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
- Server software Supported server software TAVL, RMS
- Geofencing Configurable multiple geofence zones
SERIAL
- RS232 Terminal block connector: TX, RX, RTS, CTS
- RS485 Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)
- Serial functions Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client
INPUT / OUTPUT
- Input 3 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high
- Output 3 x Digital Output, Open collector output, max output 30 V, 300 mA
- Events Email, RMS, SMS
- I/O juggler Allows to set certain I/O conditions to initiate event
POWER
- Connector 2-pin in 16-pin industrial terminal block
- Input voltage range 9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max
- Power consumption Idle: <2 W, Max: <3.5 W

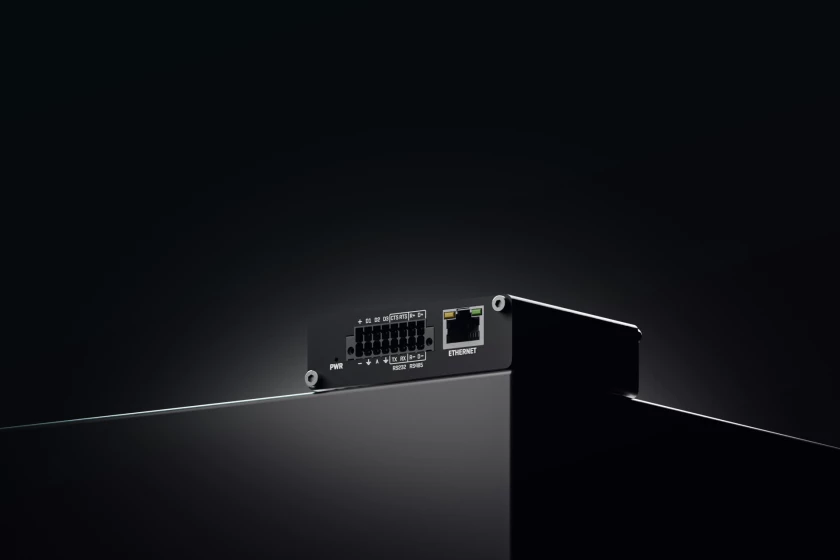

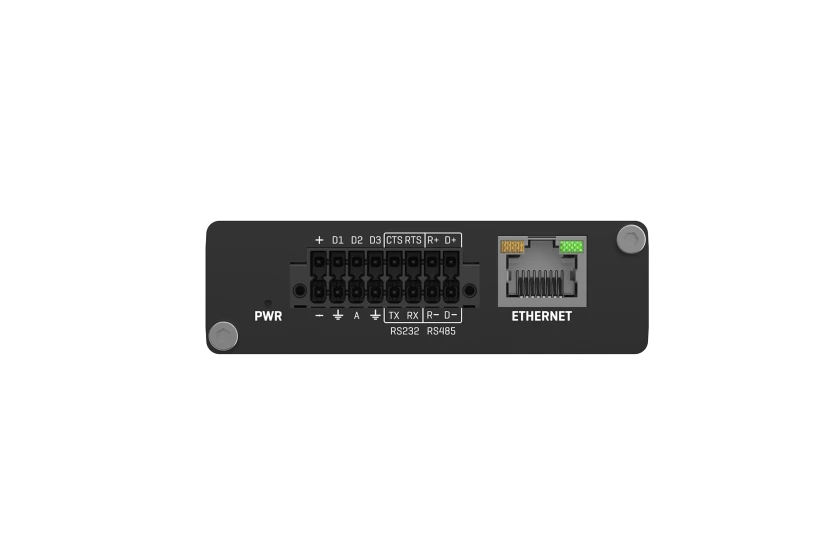

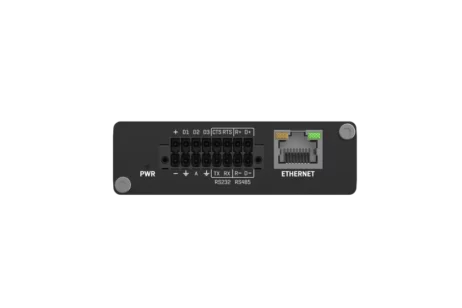

PHYSICAL INTERFACES
- Ethernet 1 x RJ45 port, 10/100 Mbps
- I/O’s 3 x Configurable digital I/O in 16-pin terminal block
- Status LEDs 3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LED
- SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM tray
- Power 1 x 16-pin terminal block

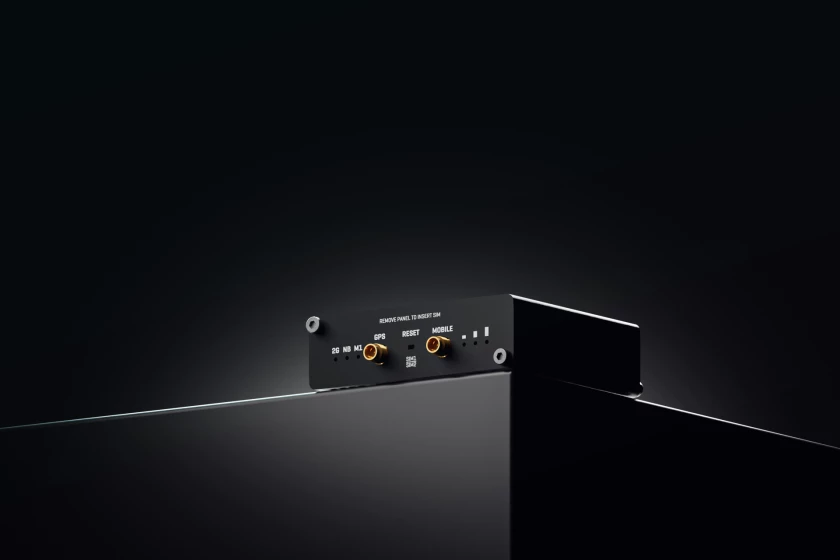

- Antennas 1 x SMA connector for LTE, 1 x SMA connector for GNSS
- RS232 4-pin in 16-pin terminal block (TX, RX, RTS, CTS)
- RS485 4-pin in 16-pin terminal block (D+, D-, R+, R-)
- Reset Reboot/User default reset/Factory reset button
PHYSICAL SPECIFICATION
- Casing material Aluminium housing
- Dimensions (W x H x D) 83 x 25 x 74.2 mm
- Weight 165 g
- Mounting options DIN rail, wall mount, flat surface (all require additional kit)
OPERATING ENVIRONMENT
- Operating temperature -40 °C to 75 °C
- Operating humidity 10% to 90% non-condensing
- Ingress Protection Rating IP30
REGULATORY & TYPE APPROVALS
-
Regulatory CE, UKCA, EAC, CB
EMC EMISSIONS & IMMUNITY
- Standards EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2: 2019 + A1:2021 EN 61000-3-3: 2013 + A1:2019 + A2:2021 EN 301 489-1 V2.2.3 EN 301 489-19 V2.2.1 EN 301 489-52 V1.2.1 ESD EN 61000-4-2:2009
- Radiated Immunity EN IEC 61000-4-3:2020 – EFT EN 61000-4-4:2012
- Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
- CS EN 61000-4-6:2014
- DIP EN 61000-4-11:2020
RF
-
Standards EN 301 908-1 V15.2.1 EN 301 908-13 V13.2.1 EN 303 413 V1.2.1
SAFETY
-
Standards
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
