Lýsing
Ethernet
-
LAN 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Network
- Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT
- Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot
- Network topology Visual representation of your network, showing which devices are connected to which other devices
- DDNS Supported >25 service providers, others can be configured manually
Security
- Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
- WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control Flexible access control of SSH, Web interface, CLI and Telnet
- 802.1x Port-based network access control client
NTP
- Supported modes Server – Receive time from GPS and act as a NTP server to broadcast time for other devices (Stratum 1). Broadcast time through UDP or over Serial (RS232, RS485)
- Daytime Protocol TCP/UDP
- Date over Serial RS232/RS485
- NTP NTPv4, NTP authentication (MD5/SHA1), Unicast/Multicast/Broadcast mode
- Protocol NTP Stratum 1 Time Server (NTPv4)
- NTP Accuracy Ethernet NTP ±1ms overall
- NTP Performance >300 NTP requests per second (wire speed)
- Synchronization Accuracy LAN synchronization typically 1–10ms
MODBUS
- Supported modes Server, Client
- Supported connection types RTU (RS232, RS485), TCP
- Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
- Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
MQTT Gateway
-
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker
API
-
Teltonika Networks Web API (beta) support Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
- WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
- SSH SSH (v1, v2)
- SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
- JSON-RPC Management API over HTTP/HTTPS
- MODBUS MODBUS TCP status/control
System Characteristics
- CPU Mediatek, 580 MHz, MIPS 24KEc
- RAM 128 MB, DDR2
- FLASH storage 16 MB, NOR Flash
Firmware / Configuration
- WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
- Keep settings Update FW without losing current configuration
- Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration
FIRMWARE CUSTOMISATION
- Operating system RutOS (OpenWrt based Linux OS)
- Supported languages Busybox shell (ash), Lua 5.1, C, C++
- Development tools SDK package with build environment provided
- GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Location Tracking
- GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
- Acquisition Sensitivity Acquisition Sensitivity -146 dBm, Reacquisition Sensitivity -157 dBm, Tracking Sensitivity -157 dBm
- Accuracy CEP-50 open sky 2.5 m
- Time Source GPS 1575.42 ±1.023 MHz, GLONASS 1597.5–1605.8 MHz, Galileo 1575.42 ±2.046 MHz, BDS 1561.098 ±2.046 MHz
- Startup Cold GPS acquisition in <120 seconds
Serial
- RS232 Terminal block connector: TX, RX, RTS, CTS
- RS485 Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)
Input / Output
- Input 3 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high
- Output 3 x Digital Output, Open collector output, max output 30 V, 300 mA
Power

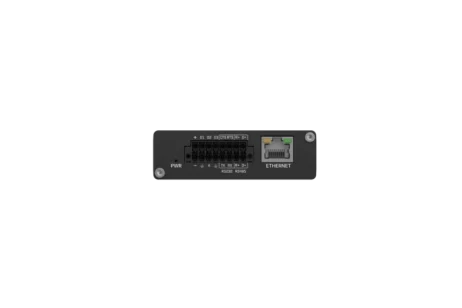

- Connector 2-pin in 16-pin industrial terminal block
- Input voltage range 9 – 30 VDC, Overvoltage protection, Reverse polarity protection, Surge protection +/- 1kV 50 uS Max
- Power consumption Idle: < 2 W, Max: < 3.5 W

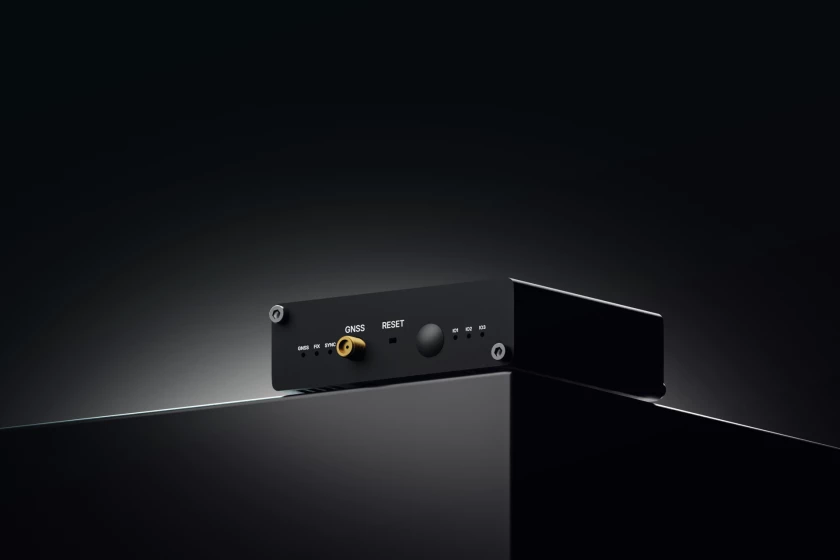

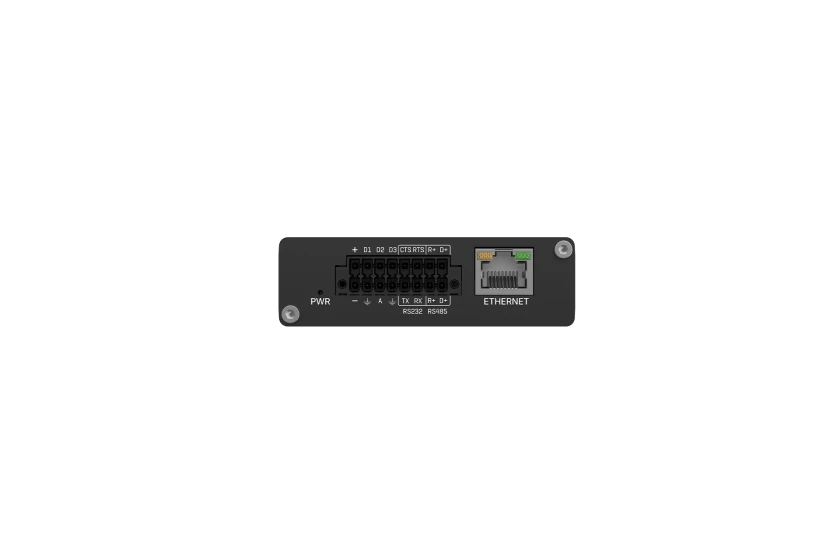

Physical Interfaces
- Ethernet 1 x RJ45 ports, 10/100 Mbps
- I/O’s 3 x Configurable I/O, 1 x Analog input in 16-pin terminal block

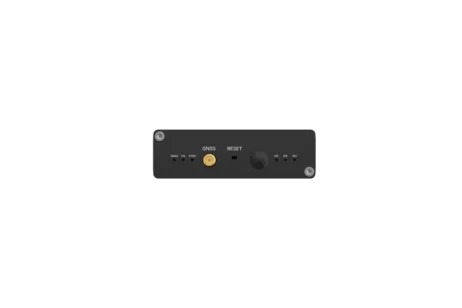

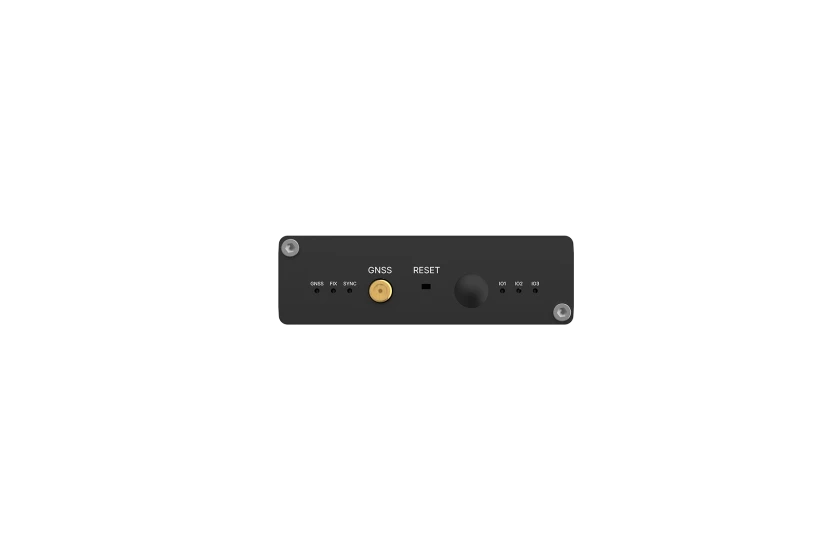

- Status LEDs 1 x Power, 2x GNSS status LEDs, 1x NTP Server status LED, 3 x IO status LEDs
- Power 1 x 16-pin terminal block
- Antennas 1 x SMA for GNSS
- RS232 4-pin in 16-pin terminal block (TX, RX, RTS, CTS)
- RS485 4-pin in 16-pin terminal block (D+, D-, R+, R-)
- Reset Reboot/User default reset/Factory reset button
Physical Specification
- Casing material Anodized aluminum housing and panels
- Dimensions (W x H x D) 82.6 x 25 x 83 mm
- Weight 180 g
- Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
- Operating temperature -40 °C to 75 °C
- Operating humidity 10% to 90% non-condensing
- Ingress Protection Rating IP30
Regulatory & Type Approvals
-
Regulatory CE, UKCA, CB, UCRF, EAC, WEEE
