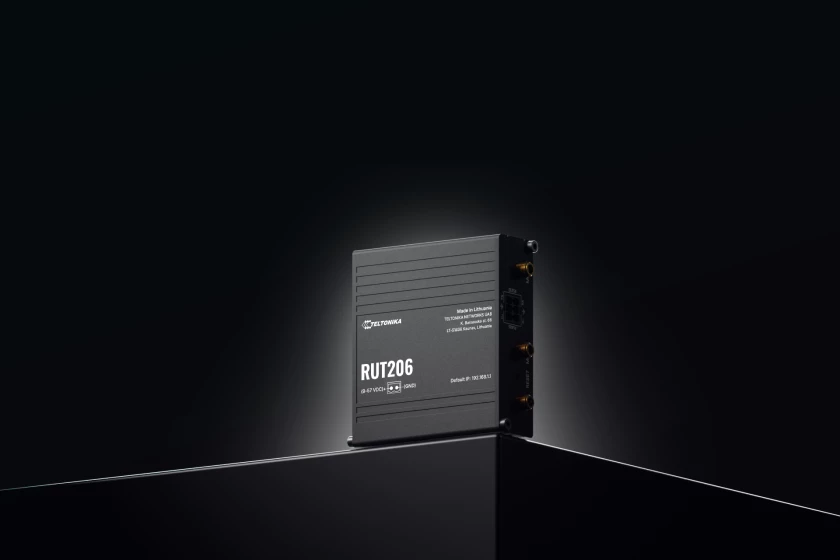

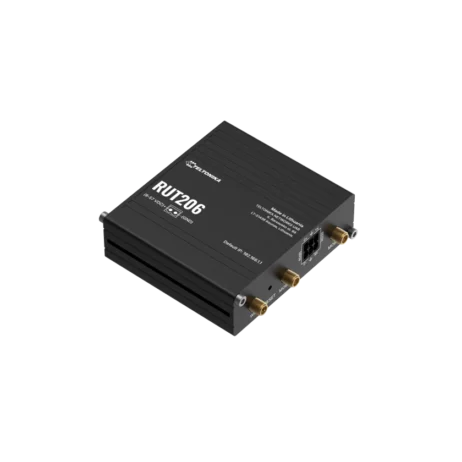

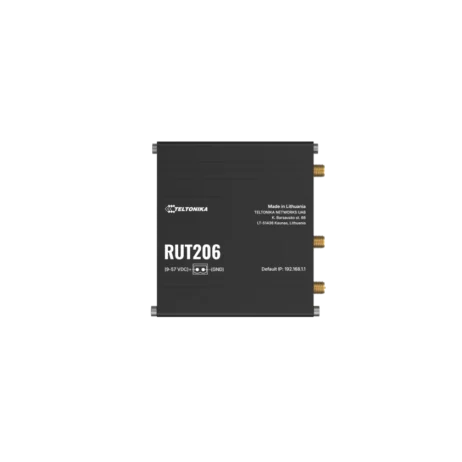

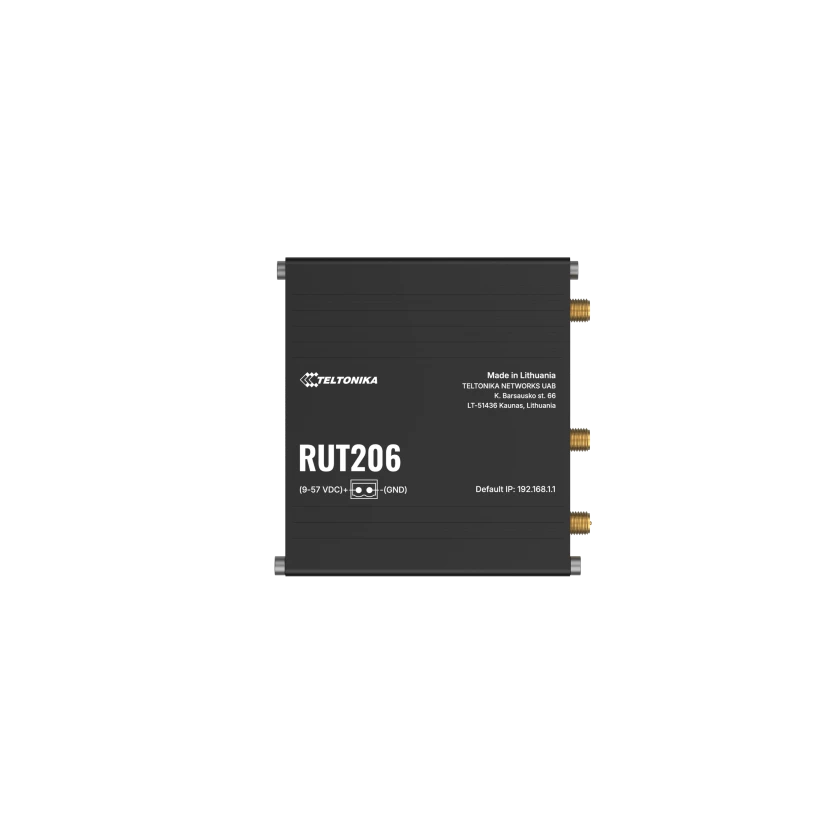

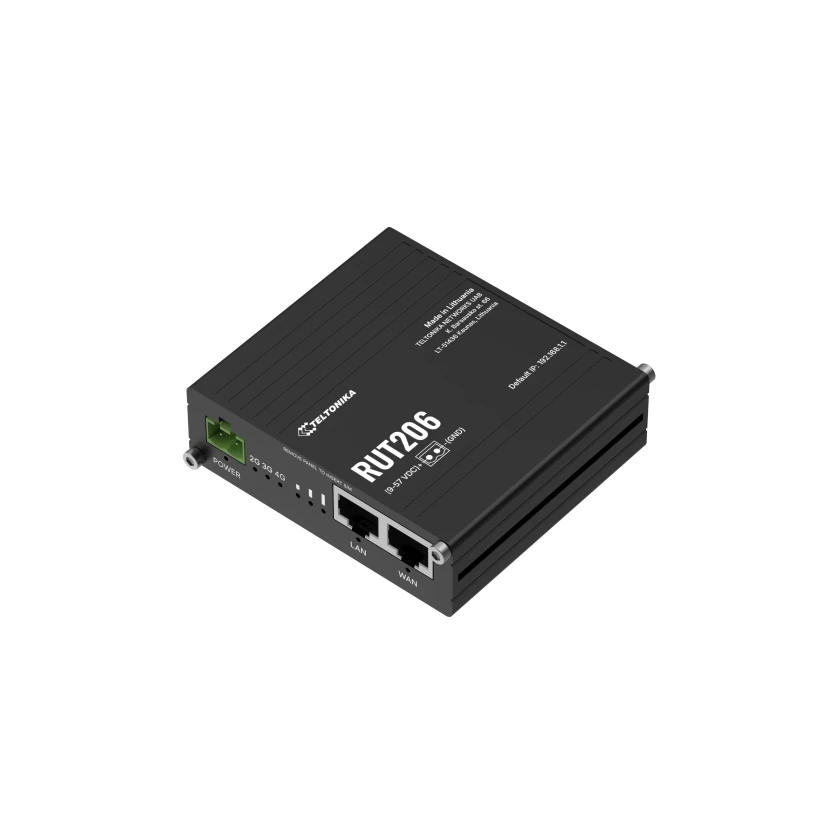

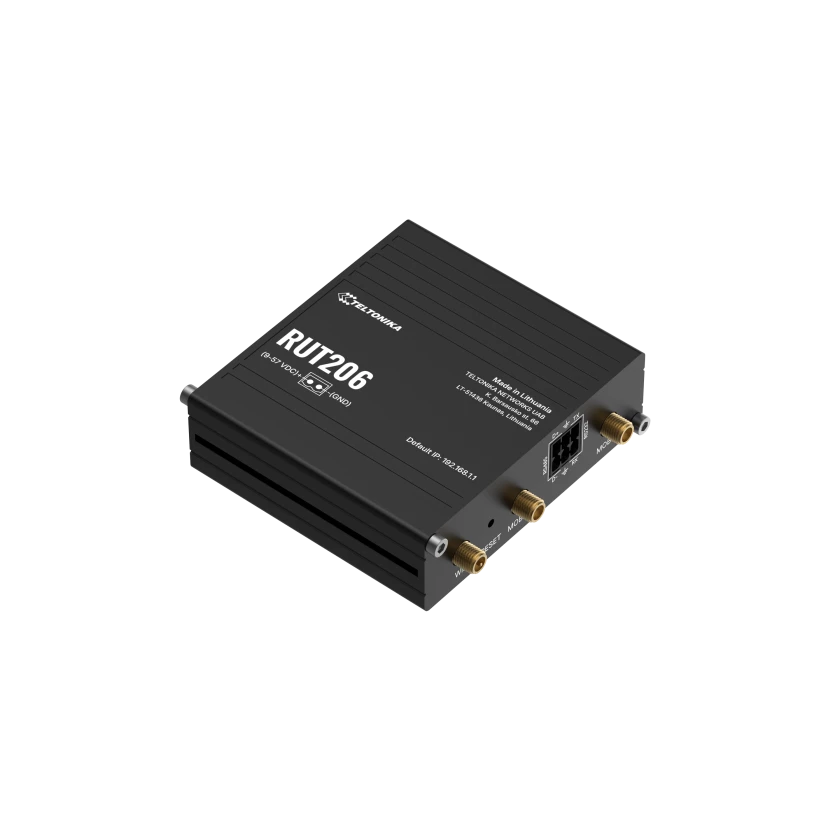

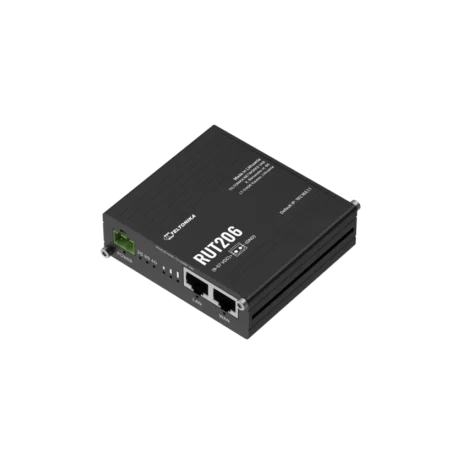

Teltonika Router Cat4 LTE með RS232/485 – RUT206

• Mobile module 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
• 3GPP Release Release 9
• SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
• Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
• SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• USSD Supports sending and reading Unstructured Supplementary Service Data messages
• Black/White list Operator black/white list (by country or separate operators)
• Band management Band lock, Used band status display
• SIM idle protection service When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
• SIM PIN code management SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN
• APN Auto APN
• Bridge Direct connection (bridge) between mobile ISP and device on LAN
• Passthrough Router assigns its mobile WAN IP address to another device on LAN

Wireless

• Wireless mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
• Wi-Fi security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
• SSID/ESSID SSID stealth mode and access control based on MAC address
• Wi-Fi users Up to 50 simultaneous connections
• Wireless Connectivity Features Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
• Wireless MAC filter Allowlist, blocklist
• Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information
• TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device

• WAN 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
• LAN 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

• Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
• Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN
• VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall Port forward, traffic rules, custom rules, TTL target customisation
• Firewall status page View all your Firewall statistics, rules, and rule counters
• Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
• Network topology Visual representation of your network, showing which devices are connected to which other devices
• DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
• QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS Supported >25 service providers, others can be configured manually
• DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
• Network backup Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
• Load balancing Balance Internet traffic over multiple WAN connections
• Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
• Hotspot 2.0 Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
• SSHFS Possibility to mount remote file system via SSH protocol
• Traffic Management Real-time monitoring, wireless signal charts, traffic usage history

• Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
• Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
• Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN Port and tag-based VLAN separation
• Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
• WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control Flexible access control of SSH, Web interface, CLI and Telnet
• SSL certificate generation Let’s Encrypt and SCEP certificate generation methods
• 802.1x Port-based network access control server

• OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
• OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
• IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
• GRE GRE tunnel, GRE tunnel over IPsec support
• PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
• Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
• SSTP SSTP client instance support
• ZeroTier ZeroTier VPN client support
• WireGuard WireGuard VPN client and server support
• Tinc Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.

• Supported modes Router
• Supported connection types RS485, TCP

• Supported modes Client, Server
• Supported connection types TCP

• Supported modes Server, Client
• Supported connection types RTU, TCP
• Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
• Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

• Protocol HTTP(S), MQTT, Azure MQTT
• Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature

• Supported modes TCP Master, DNP3 Outstation
• Supported connection types RS232, RS485, TCP

• DLMS Support DLMS – standard protocol for utility meter data exchange
• Supported modes Client
• Supported connection types TCP
• COSEM Allows to scan meter COSEM objects for automatic detection and configuration

• WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
• FOTA Firmware update from server, automatic notification
• SSH SSH (v1, v2)
• SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
• TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTT MQTT Broker, MQTT publisher
• SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
• JSON-RPC Management API over HTTP/HTTPS
• RMS Teltonika Remote Management System (RMS)

• ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
• Cumulocity – Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
• Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
• AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality

• CPU Mediatek, 580 MHz, MIPS 24KEc
• RAM 128 MB, DDR2
• FLASH storage 32 MB, NOR Flash

• WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA Update FW
• RMS Update FW/configuration for multiple devices at once
• Keep settings Update FW without losing current configuration
• Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

• Operating system RutOS (OpenWrt based Linux OS)
• Supported languages Busybox shell, Lua, C, C++
• Development tools SDK package with build environment provided
• GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
• Package Manager The Package Manager is a service used to install additional software on the device

• RS232 RS232 interface without flow control signals
• RS485 Half duplex (2-wire) RS485 interface

• Physical size Micro SD (internal)
• Applications  Samba share
• Capacity Up to 2 TB
• Storage Formats FAT32, NTFS, ext2, ext3, ext4

• PoE ports 1 x PoE In
• PoE standards Active PoE input 802.3af Class 0 (12.94 W) on LAN port

• Connector 2-pin industrial DC power socket
• Input voltage range 9 – 57 VDC, reverse polarity protection, surge protection >58V @10us min
• PoE (passive) Passive PoE over spare pairs 4,5 (+) / 7,8 (-). Possibility to power up through LAN port, passive PoE voltage: 16 – 57 VDC
• Power consumption Idle: < 2 W, Max: < 3.5 W

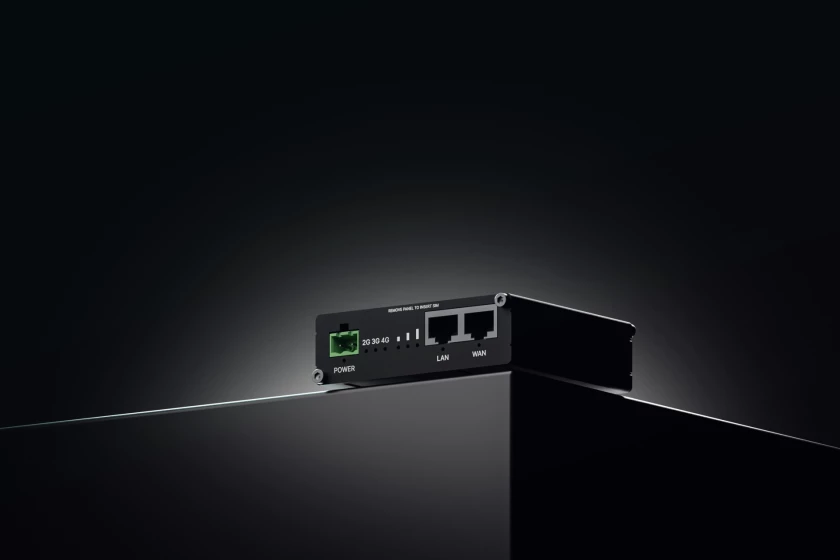

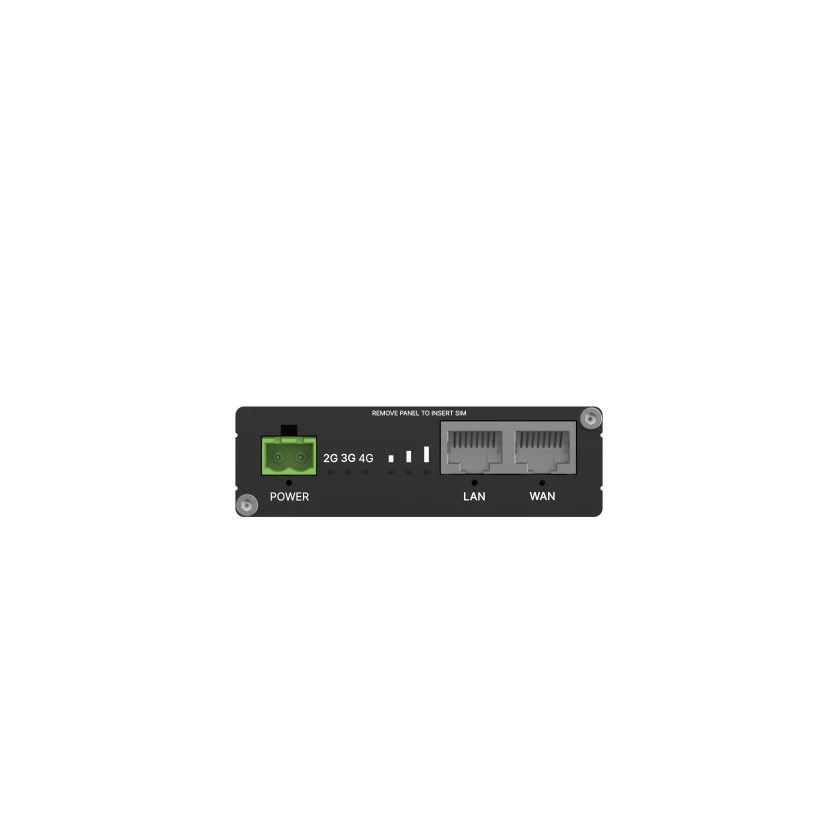

• Ethernet 2 x RJ45 ports, 10/100 Mbps
• Status LEDs 3 x Connection type status LEDs, 3 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
• SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM tray
• Power 1 x 2-pin power connector

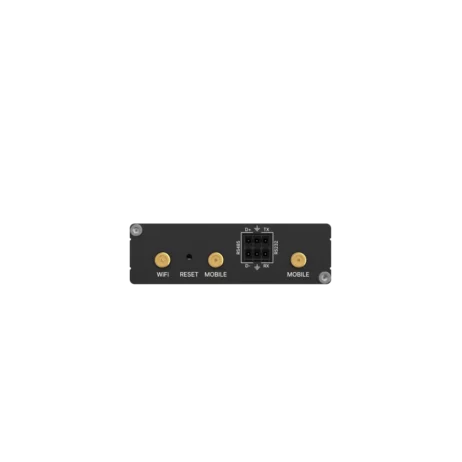

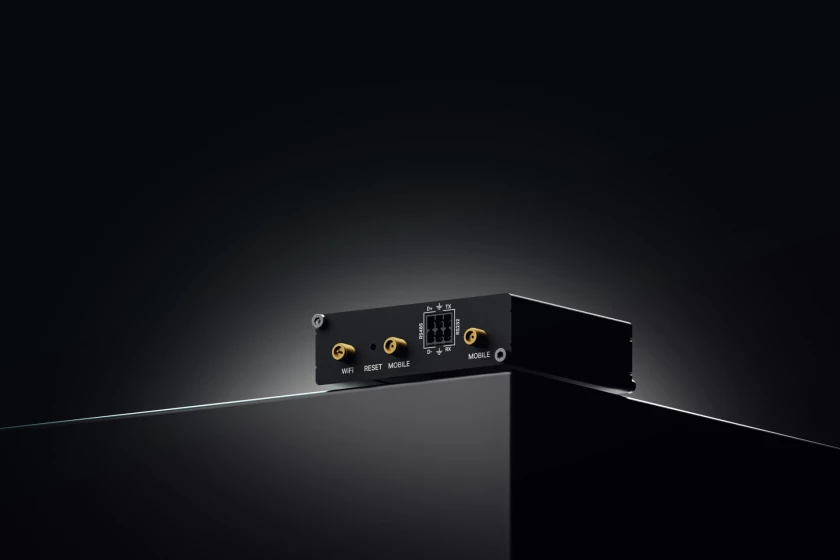

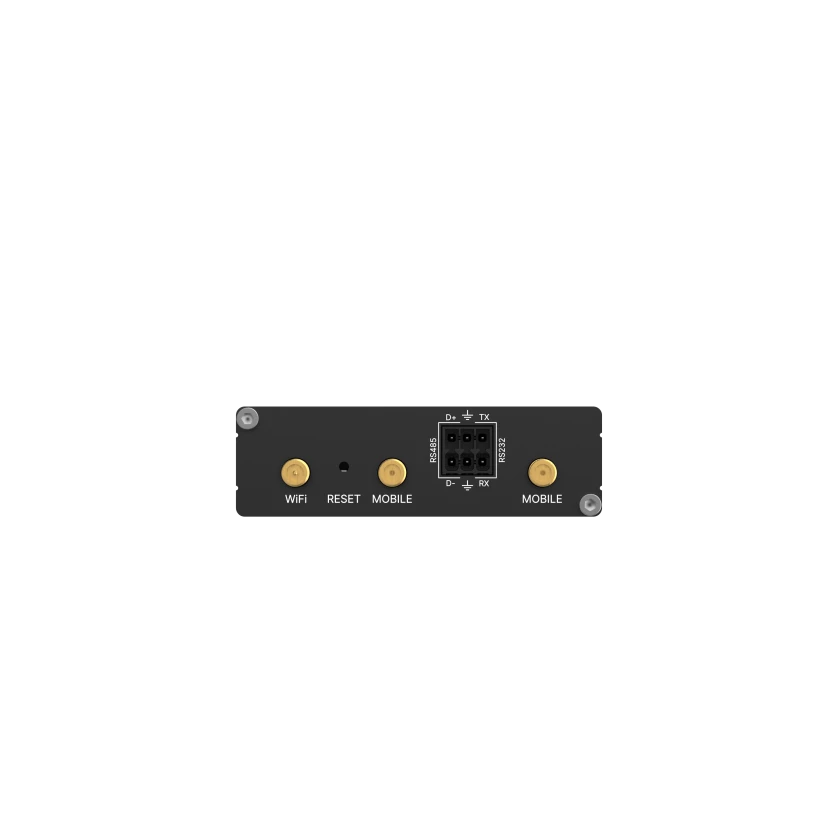

• Antennas 2 x SMA for Mobile, 1 x RP-SMA for Wi-Fi
• RS232, RS485 1 x 6-pin terminal block
• Reset Reboot/User default reset/Factory reset button

• Casing material Anodized aluminum housing and panels
• Dimensions (W x H x D) 83 x 25 x 83 mm
• Weight 132 g
• Mounting options DIN rail, wall mount, flat surface (all require additional kit)

• Operating temperature -40 °C to 75 °C
• Operating humidity 10% to 90% non-condensing
• Ingress Protection Rating IP30
