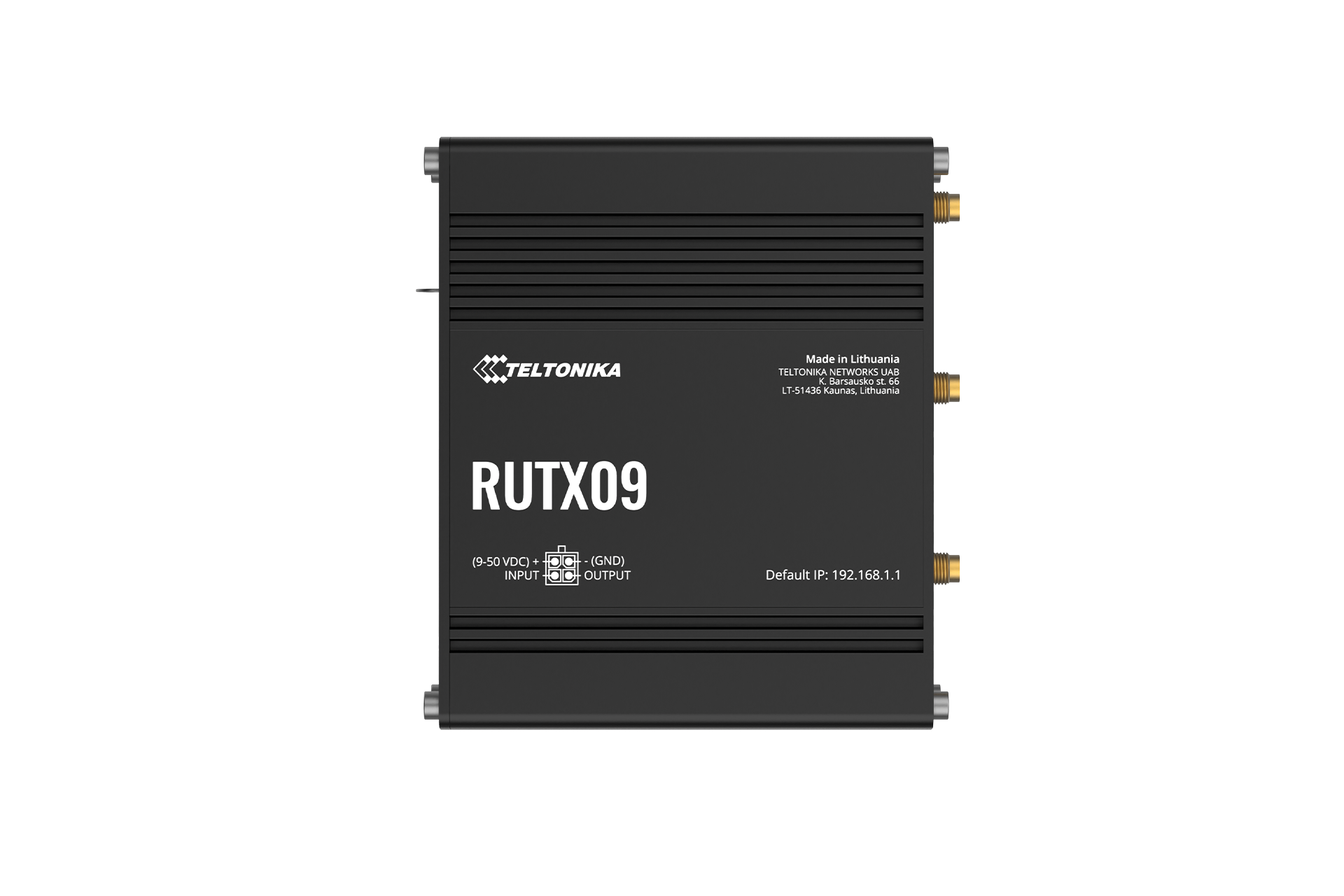

Teltonika Router Cat6 – RUTX09

Leiðbeiningar RUTX09 er hér

Dæmi um stillingar má sjá hér

Teltonika bæklingur hér

MOBILE

• Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
• SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
• Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, Carrier aggregation
• SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• USSD Supports sending and reading Unstructured Supplementary Service Data messages
• Black/White list Operator black/white list
• Multiple PDN Possibility to use different PDNs for multiple network access and services
• Band management Band lock, Used band status display
• Auto APN
• Bridge Direct connection (bridge) between mobile ISP and device on LAN
• Passthrough Router assigns its mobile WAN IP address to another device on LAN

ETHERNET

• WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
• LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NETWORK

• Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
• Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
• VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring  Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall Port forward, traffic rules, custom rules
• DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
• QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS Supported >25 service providers, others can be configured manually
• Network backup WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
• Load balancing Balance Internet traffic over multiple WAN connections
• SSHFS Possibility to mount remote file system via SSH protocol

SECURITY

• Authentication Pre-shared key, digital certificates, X.509 certificates
• Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
• Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN Port and tag based VLAN separation
• Mobile quota control Custom data limits for both SIM cards
• WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

• OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
• OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
• IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
• GRE tunnel
• PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support
• Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN Method of building scalable IPsec VPNs
• SSTP client instance support
• ZeroTier ZeroTier VPN client support
• WireGuard WireGuard VPN client and server support

MODBUS TCP SLAVE

• ID range Respond to one ID in range [1;255] or any
• Allow Remote Access  Allow access through WAN
• Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

MODBUS TCP MASTER

• Supported functions 01, 02, 03, 04, 05, 06, 15, 16
• Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

MODBUS DATA TO SERVER

• Protocol HTTP(S), MQTT, Azure MQTT

MQTT GATEWAY

• MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3

• Supported modes TCP Master, DNP3 Outstation

MONITORING & MANAGEMENT

• WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
• FOTA Firmware update from server, automatic notification
• SSH  (v1, v2)
• SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off
• TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTT Broker, MQTT publisher
• SNMP (v1, v2, v3), SNMP Trap
• JSON-RPC Management API over HTTP/HTTPS
• MODBUS TCP status/control
• RMS Teltonika Remote Management System (RMS)

IOT PLATFORMS

• Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
• ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
• Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
• Azure IoT Hub – Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS

• CPU – Quad-core ARM Cortex A7, 717 MHz
• RAM 256 MB, DDR3
• FLASH storage 256 MB, SPI Flash

FIRMWARE / CONFIGURATION

• WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
• FOTA  Update FW
• RMS  Update FW/configuration for multiple devices at once
• Keep settings  Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

• Operating system  RutOS (OpenWrt based Linux OS)
• Supported languages  Busybox shell, Lua, C, C++
• Development tools SDK package with build environment provided

LOCATION TRACKING

• GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
• Coordinates  GNSS coordinates via WebUI, SMS, TAVL, RMS
• NMEA  0183
• NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
• Server software Supported server software TAVL, RMS
• Geofencing Configurable multiple geofence zones

USB

• Data rate USB 2.0
• Applications  Samba share, USB-to-serial
• External devices Possibility to connect external HDD, flash drive, additional modem, printer
• Storage formats FAT, FAT32, NTFS

INPUT / OUTPUT

• Input 1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high
• Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Events Email, RMS, SMS
• I/O juggler Allows to set certain I/O conditions to initiate event

POWER

• Connector 4-pin industrial DC power socket
• Input voltage range  9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
• PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 – 50 VDC
• Power consumption  9 W Max

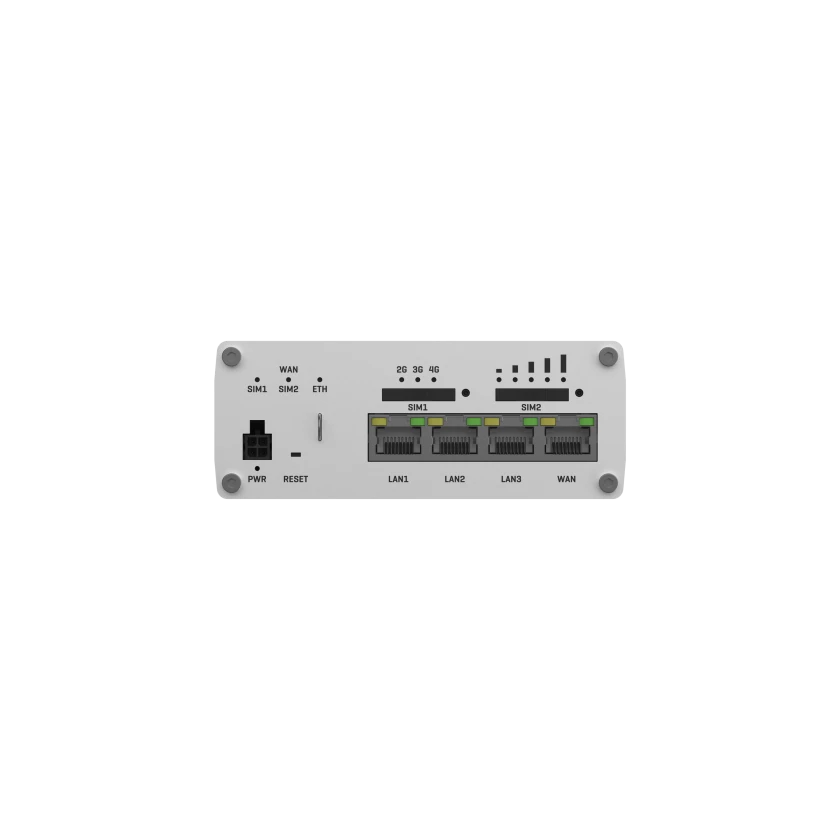

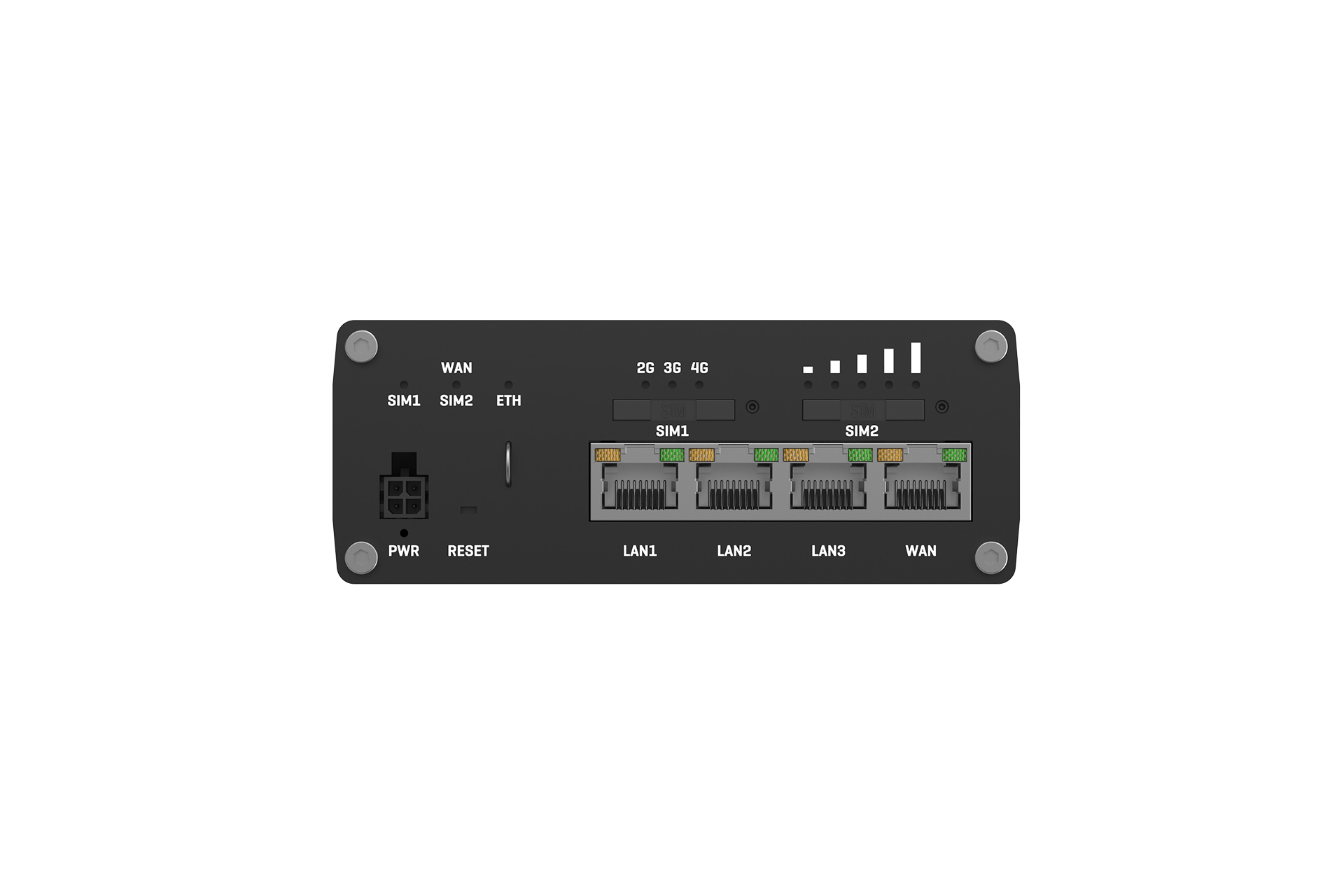

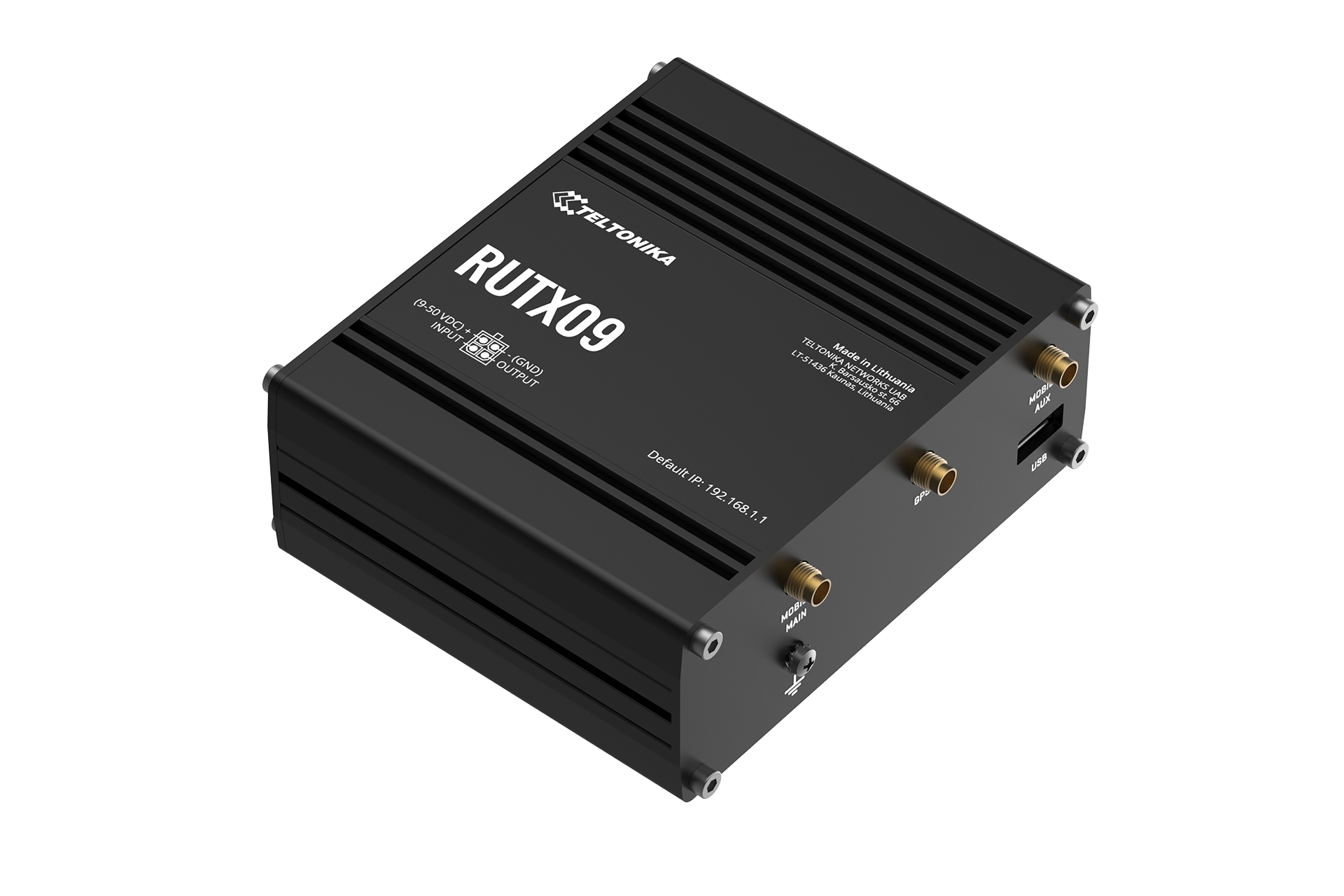

PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS, SIM)

• Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
• I/O’s  1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs  3 x WAN type, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 3 x WAN status, 1x Power
• 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders
• Power 1 x 4-pin power connector

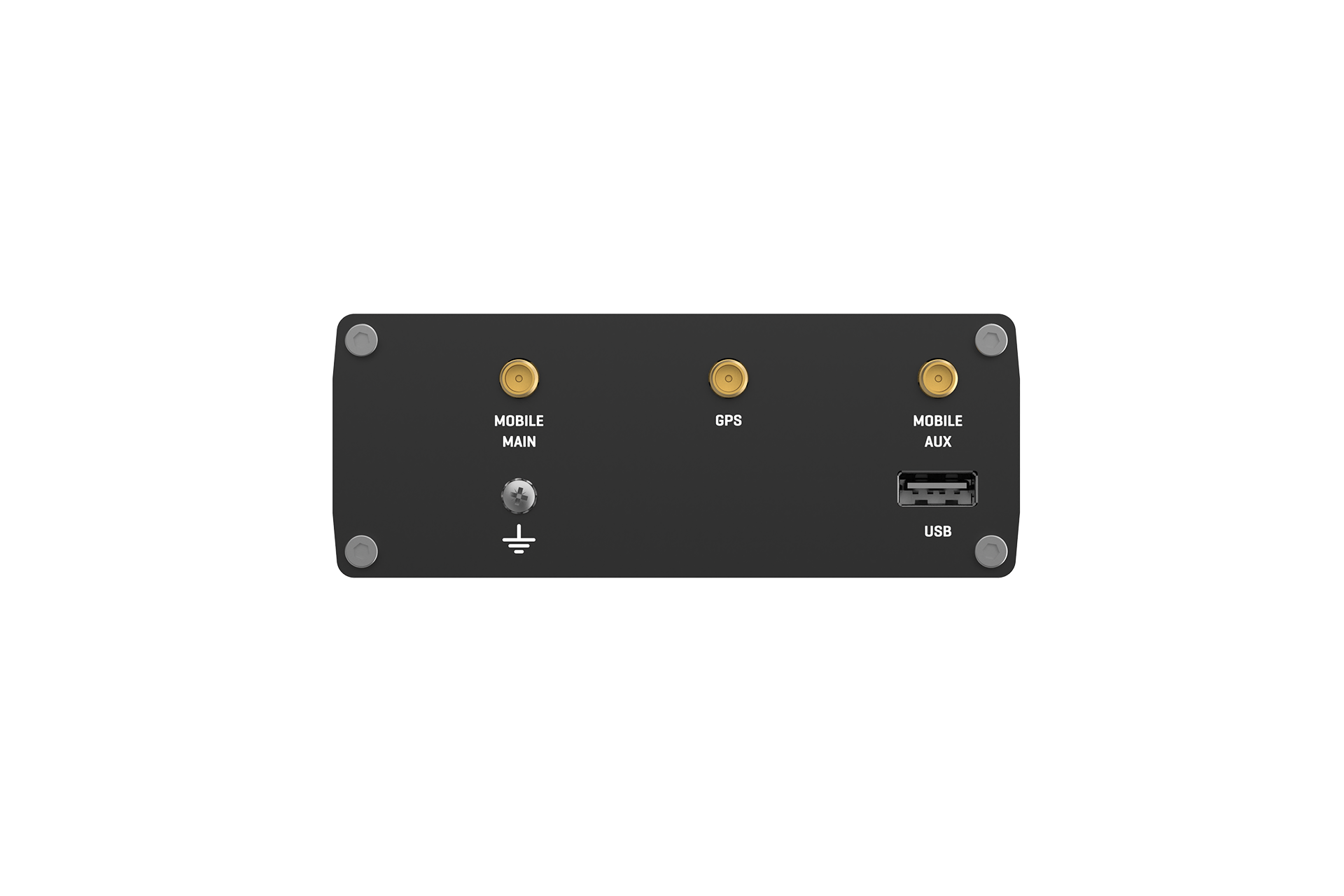

• Antennas  2 x SMA for LTE, 1 x SMA for GNNS
• USB  1 x USB A port for external devices
• Reset Reboot/User default reset/Factory reset button
• Other  1 x Grounding screw

PHYSICAL SPECIFICATION

• Casing material Aluminium housing with DIN rail mounting option
• Dimensions (W x H x D) 115 x 44.2 x 95.1 mm
• Weight  455 g
• Mounting options  DIN rail, flat surface placement

OPERATING ENVIRONMENT

• Operating temperature -40 °C to 75 °C
• Operating humidity  10% to 90% non-condensing
• Ingress Protection Rating  IP30

REGULATORY & TYPE APPROVALS

• Regulatory CE/RED, EAC, RoHS, WEEE

EMI IMMUNITY

• Standards Draft EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft EN 301 489-52 V1.1.0
• ESD  EN 61000-4-2:2009
• RS  EN 61000-4-3:2006 + A1:2008 + A2:2010
• EFT  EN 61000-4-4:2012
• Surge protection  EN 61000-4-5:2014
• CS  EN 61000-4-6:2014
• DIP  EN 61000-4-11:2004

RF

• StandardsEN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.2, EN303 413 V1.1.1

SAFETY

• StandardsIEC 62368-1:2014, EN 62368-1:2014 + A11:2017EN 50665:2017, EN 62311:2008
