Lýsing

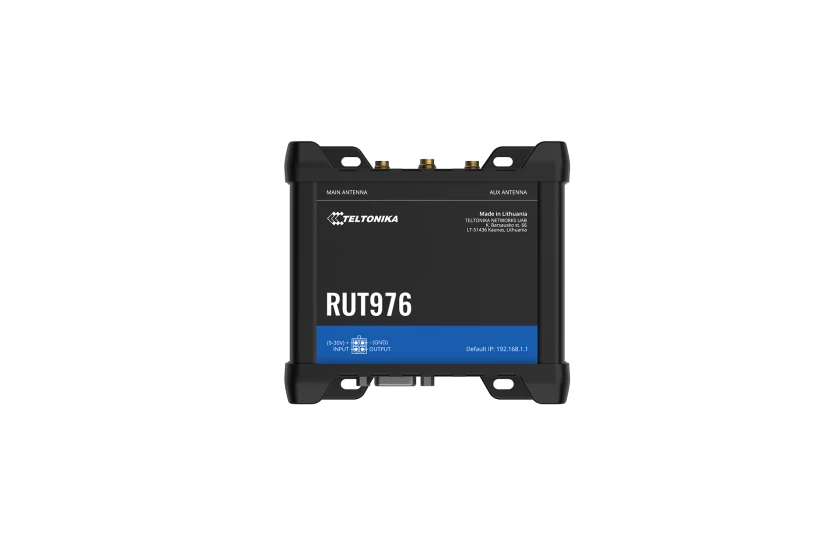

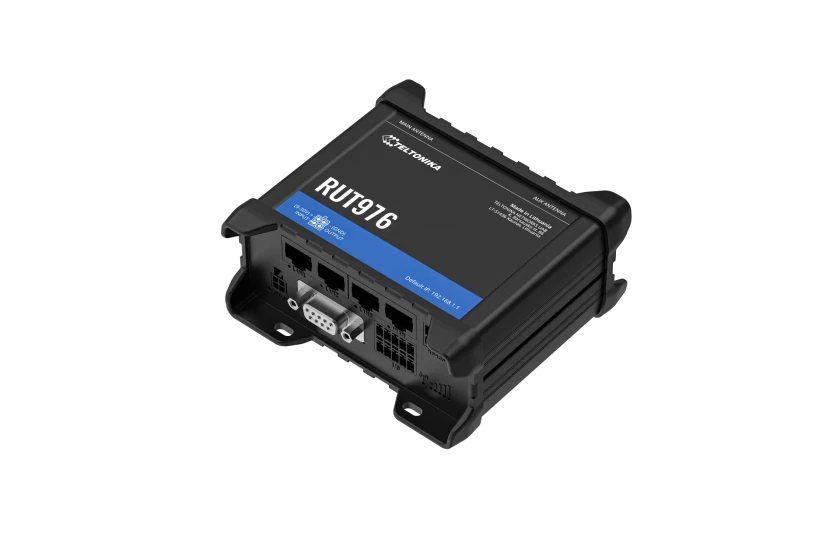

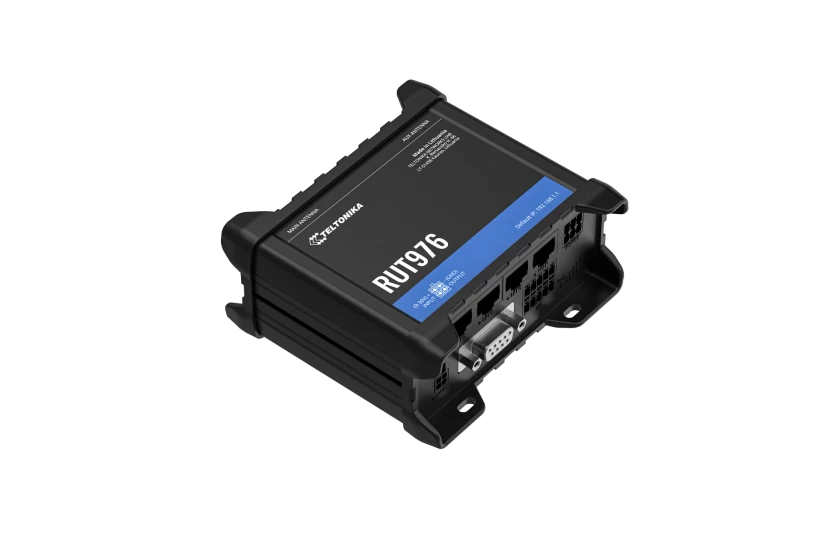

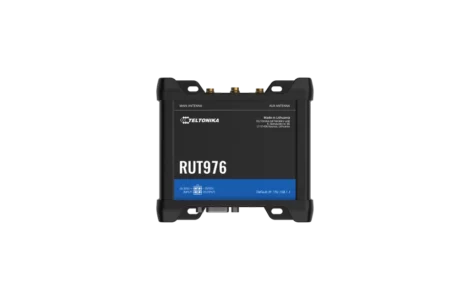

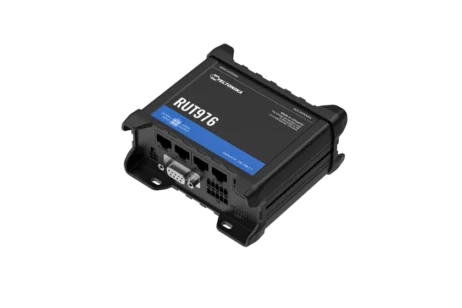

Redcap 5G router fyrir þá sem að gera kröfur um öryggi.
REDCAP 5G, Low latency, high capacity, affordable pricing
FUTURE-PROOFING Backward compatible with 4G LTE Cat 4
WI-FI Wireless access point with Hotspot functionality
MULTIPLE INTERFACES – Ethernet, RS232, RS485, & multiple I/Os
Modem:
Mobile module 5G Sub-6Ghz SA 223 Mbps DL , 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL
- 3GPP Release Release 17 RedCap
- Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
- SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD Supports sending and reading Unstructured Supplementary Service Data messages
- Black/White list Operator black/white list (by country or separate operators)
- Multiple PDN Possibility to use different PDNs for multiple network access and services
- Band management Band lock, Used band status display
- SIM PIN code management SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN
- APN Auto APN
- Bridge Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough Router assigns its mobile WAN IP address to another device on LAN
Wireless
- Wireless mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
- Wi-Fi security
- WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
- SSID/ESSID SSID stealth mode and access control based on MAC address
- Wi-Fi users Up to 50 simultaneous connections
- Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
- Wireless MAC filter Allowlist, blocklist
- Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information
- TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device
Ethernet
- WAN 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- LAN 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Network
- Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN
- VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall Port forward, traffic rules, custom rules
- Firewall status page
- View all your Firewall statistics, rules, and rule counters
- Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Network topology Visual representation of your network, showing which devices are connected to which other devices
- DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
- QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS Supported >25 service providers, others can be configured manually
- DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
- Network backup Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
- Load balancing Balance Internet traffic over multiple WAN connections
- Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
- SSHFS Possibility to mount remote file system via SSH protocol
Security
- Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
- Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
- Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN Port and tag-based VLAN separation
- Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
- WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control Flexible access control of SSH, Web interface, CLI and Telnet
- SSL certificate generation Let’s Encrypt and SCEP certificate generation methods
- 802.1x Port-based network access control server
VPN
- OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
- IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
- SSTP SSTP client instance support
- ZeroTier ZeroTier VPN client support
- WireGuard
- WireGuard VPN client and server support
- Tinc Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.
BACNET
- Supported modes Router
- Supported connection types RS485, TCP
- Configuration options Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)
OPC UA
- Supported modes Client, Server
- Supported connection types TCP
MODBUS
- Supported modes Server, Client
- Supported connection types RTU (RS232, RS485), TCP, USB
- Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
- Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
- Protocol HTTP(S), MQTT, Azure MQTT
- Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature
MQTT Gateway
-
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
- Supported modes Station, Outstation
- Supported connection TCP
DLMS
- DLMS Support DLMS – standard protocol for utility meter data exchange
- Supported modes Client
- Supported connection types TCP
- COSEM Allows to scan meter COSEM objects for automatic detection and configuration
API
-
Teltonika Networks Web API (beta) support Expand your device’s possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
- WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
- FOTA Firmware update from server, automatic notification
- SSH SSH (v1, v2)
- SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
- Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
- Email Receive email message status alerts of various services
- TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT MQTT Broker, MQTT publisher
- SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
- JSON-RPC Management API over HTTP/HTTPS
RMS
- Teltonika Remote Management System (RMS)
IoT Platforms
- ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
- Cumulocity – Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
- Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
- AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality
System Characteristics
- CPU Mediatek, 580 MHz, MIPS 24KEc
- RAM 128 MB, DDR2
- FLASH storage 16 MB, NOR Flash
Firmware / Configuration
- WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA Update FW
- RMS Update FW/configuration for multiple devices at once
- Keep settings Update FW without losing current configuration
- Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration
FIRMWARE CUSTOMISATION
- Operating system RutOS (OpenWrt based Linux OS)
- Supported languages Busybox shell, Lua, C, C++
- Development tools SDK package with build environment provided
- GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
- Package Manager The Package Manager is a service used to install additional software on the device
Location Tracking
- GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
- Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
- NMEA NMEA 0183
- NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
- Server software Supported server software TAVL, RMS
- Geofencing Configurable multiple geofence zones
Serial
- RS232 DB9 connector, RS232 (with RTS, CTS flow control)
- RS485 RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate
- Serial functions Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client
USB
- Data rate USB 2.0
- Applications Samba share, USB-to-serial
- External devices Possibility to connect external HDD, flash drive, printer, USB-serial adapter
- Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
Input / Output
- Input 1 x digital dry input (0 – 3 V), 1 x digital galvanically isolated input (0 – 30 V), 1 x analog input (0 – 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 – 5 V detected as logic low, 8 – 30 V detected as logic high)
- Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
- Events Email, RMS, SMS
- I/O juggler Allows to set certain I/O conditions to initiate event
Power
- Connector 4-pin industrial DC power socket
- Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
- PoE-out input voltage range 44 – 57 VDC
- PoE (passive) Passive PoE over Port LAN1. “Mode A/B” style. Not compatible with 802.3af/at/bt.Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 – 30 VDC
- Power consumption Idle: < 3 W, Max: < 7 W

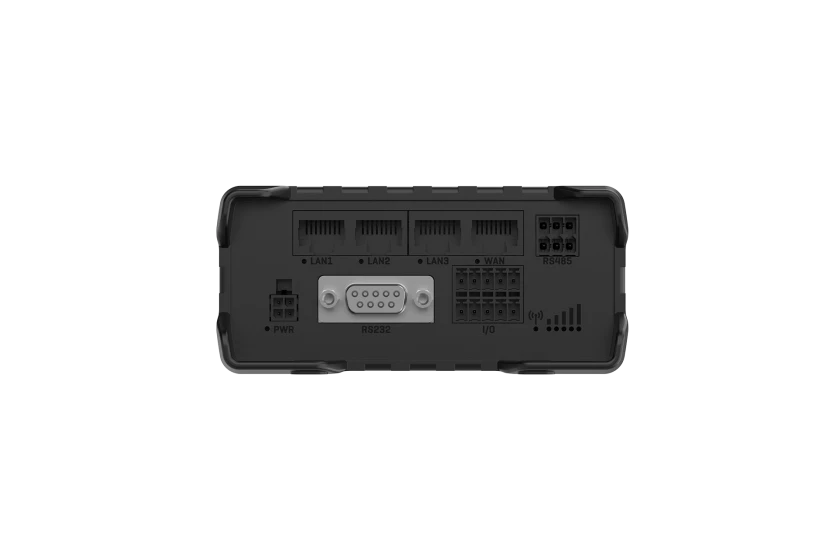

Physical Interfaces

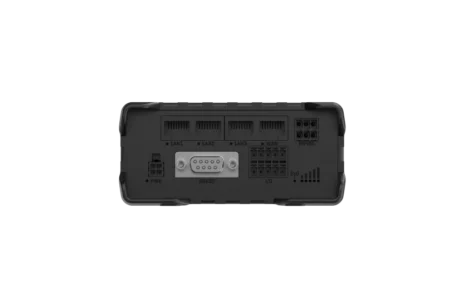

- Ethernet 4 x RJ45 ports, 10/100 Mbps
- I/O’s 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector
- Status LEDs 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
- SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional – different hardware required; contact your sales manager)
- Power 1 x 4-pin power connector
- Input/output 1 x 10-pin industrial socket for inputs/outputs

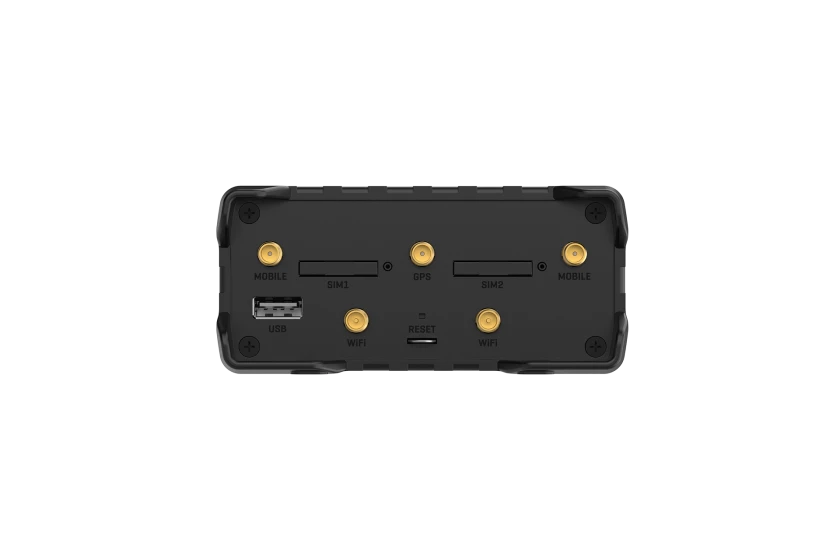

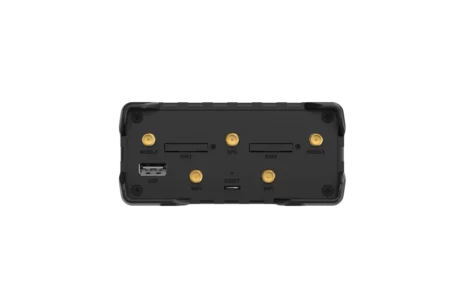

- Antennas 2 x SMA for Mobile, 3 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
- USB 1 x USB A port for external devices
- RS232 1 x DB9 socket
- RS485 1 x 6-pin industrial socket
- Reset Reboot/User default reset/Factory reset button
Physical Specification
- Casing material Aluminum housing, plastic panels
- Dimensions (W x H x D) 110 x 50 x 100 mm
- Weight 295 g
- Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
- Operating temperature -40 °C to 75 °C
- Operating humidity 10% to 90% non-condensing
- Ingress Protection Rating IP30
Regulatory & Type Approvals
-
Regulatory WEEE
