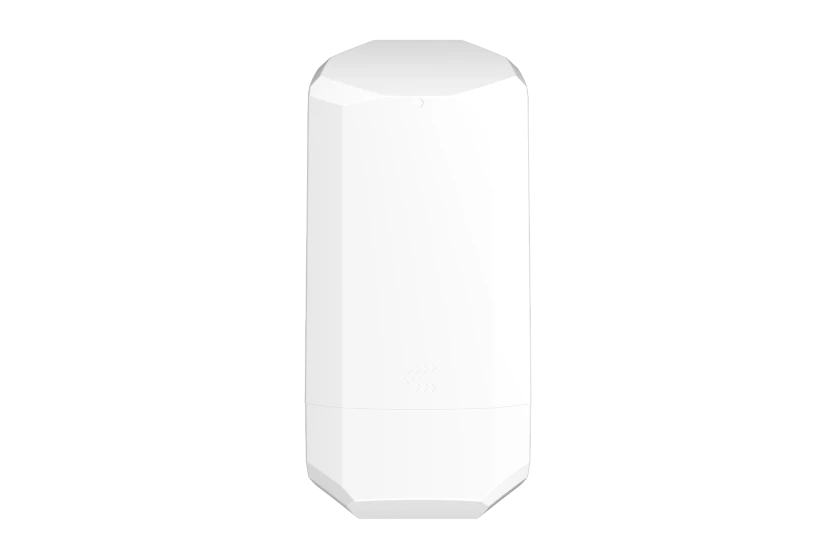

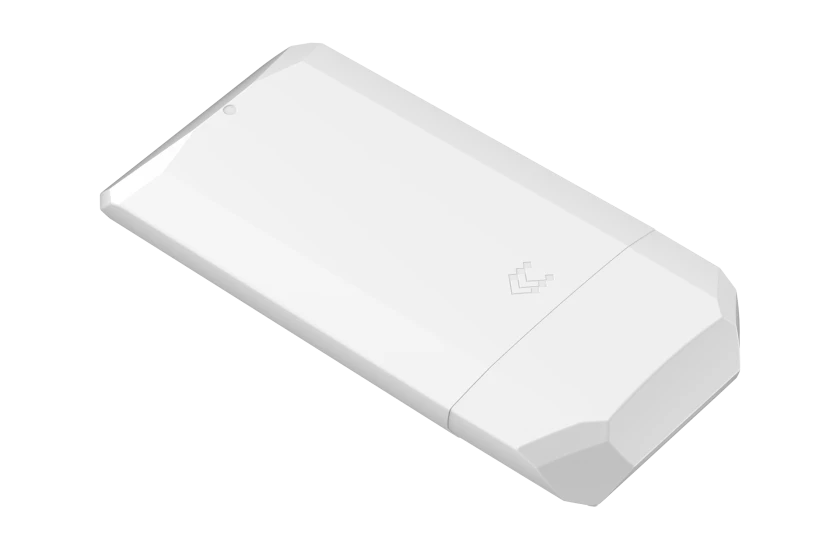

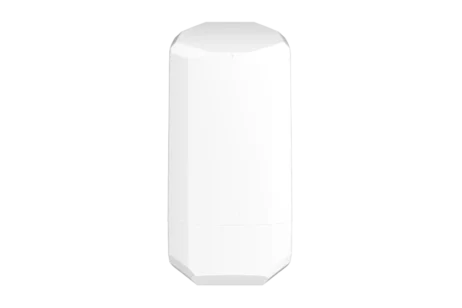

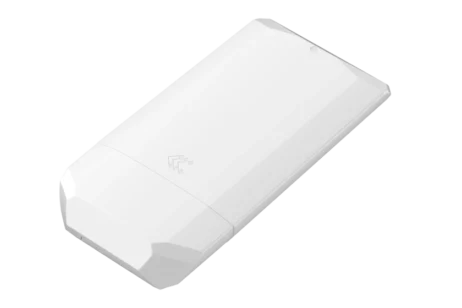

Teltonika Utandyra Router 5G LTE – OTD500

• Mobile module 5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4×4 MIMO), 900/550 Mbps UL (2×2); 4G LTE – LTE Cat 19 1.6Gbps DL/200Mbps UL; 3G up to 42 Mbps DL/5.76Mbps UL
• 3GPP Release Release 16
• eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
• SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
• Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
• SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• USSD Supports sending and reading Unstructured Supplementary Service Data messages
• Black/White list Operator black/white list (by country or separate operators)
• Band management Band lock, Used band status display
• SIM idle protection service When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
• SIM PIN code management SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN
• APN Auto APN
• Bridge Direct connection (bridge) between mobile ISP and device on LAN
• Passthrough Router assigns its mobile WAN IP address to another device on LAN
• Framed routing Framed routing: support an IP network behind 5G UE

• PoE ports 1 x PoE In
• PoE standards 802.3af/at

• PoE ports 1 x PoE Out
• PoE standards 802.3af Alternative B
• PoE Max Power per Port (at PSE) 15 W Max (power supply unit dependent)

• Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
• Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
• VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall Port forward, traffic rules, custom rules, TTL target customisation
• Firewall status page View all your Firewall statistics, rules, and rule counters
• Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
• Network topology Visual representation of your network, showing which devices are connected to which other devices
• DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
• QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS Supported >25 service providers, others can be configured manually
• DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
• Network backup VRRP, Wired options, each of which can be used as an automatic Failover
• Load balancing Balance Internet traffic over multiple WAN connections
• Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
• SSHFS Possibility to mount remote file system via SSH protocol
• VRF support Initial virtual routing and forwarding (VRF) support
• Traffic Management Real-time monitoring, wireless signal charts, traffic usage history

• Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
• Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
• Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN Port and tag-based VLAN separation
• Mobile quota control Mobile data limit, customizable period, start time, warning limit, phone number
• WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control Flexible access control of SSH, Web interface, CLI and Telnet
• TPM Identification and authentication module, TPM 2.0 standard
• SSL certificate generation Let’s Encrypt and SCEP certificate generation methods
• 802.1x Port-based network access control server

• OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
• OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
• IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
• GRE GRE tunnel, GRE tunnel over IPsec support
• PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
• Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
• SSTP SSTP client instance support
• ZeroTier ZeroTier VPN client support
• WireGuard WireGuard VPN client and server support
• Tinc Tinc offers encryption, authentication and compression in it’s tunnels. Client and server support.
• Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
• OPC UA Supported modes Client, Server
• Supported connection types TCP

• Supported modes Server, Client
• Supported connection types TCP
• Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
• Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
• DATA TO SERVER Protocol HTTP(S), MQTT, Azure MQTT

• Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router’s Data to server feature

• Supported modes Station, Outstation
• Supported connection TCP

• DLMS Support DLMS – standard protocol for utility meter data exchange
• Supported modes Client
• Supported connection types TCP
• COSEM Allows to scan meter COSEM objects for automatic detection and configuration

• WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
• FOTA Firmware update from server, automatic notification
• SSH SSH (v1, v2)
• Email Receive email message status alerts of various services
• SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
• Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer
• TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTT MQTT Broker, MQTT publisher
• SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
• JSON-RPC Management API over HTTP/HTTPS
• RMS Teltonika Remote Management System (RMS)

• ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
• Cumulocity – Cloud of Things
• Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
• Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
• AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device’s API using AWS Jobs functionality

• CPU MediaTek, Dual-core, 880 MHz, MIPS1004Kc
• RAM 256 MB, DDR3
• FLASH storage 16 MB serial NOR flash, 256 MB serial NAND flash

• WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA Update FW
• RMS Update FW/configuration for multiple devices at once
• Keep settings Update FW without losing current configuration
• Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer’s configuration

• Operating system RutOS (OpenWrt based Linux OS)
• Supported languages Busybox shell, Lua, C, C++, and Python, Java in Package manager
• Development tools SDK package with build environment provided
• GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
• Package Manager The Package Manager is a service used to install additional software on the device

• Connector RJ45 Socket
• Input voltage range 42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
• Input voltage range for PoE 42.5–57.0 VDC, reverse polarity protection, voltage surge/transient protection
• Power consumption Idle: < 2.5 W / Max: < 9 W / PoE Max < 24 W

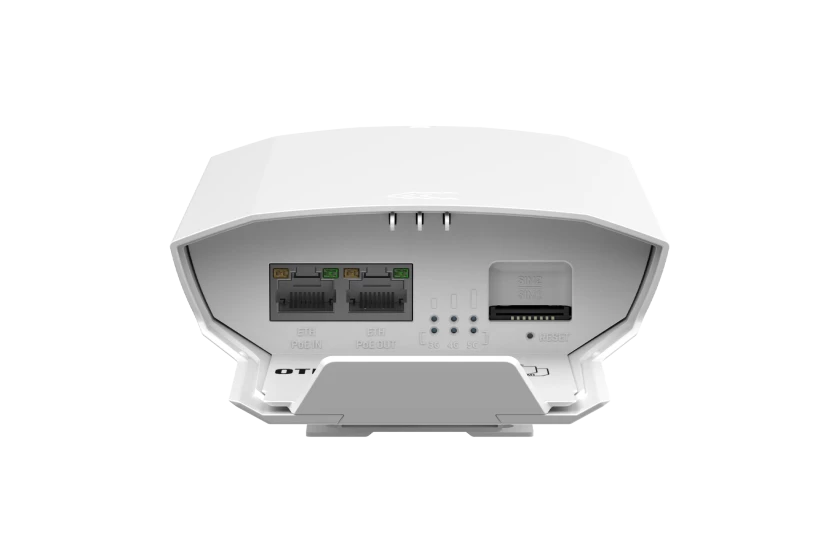

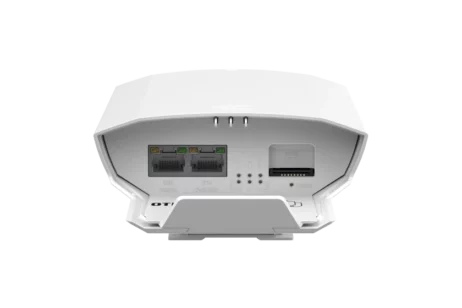

• Ethernet 2 x RJ45 ports, 10/100/1000 Mbps
• Status LEDs 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs

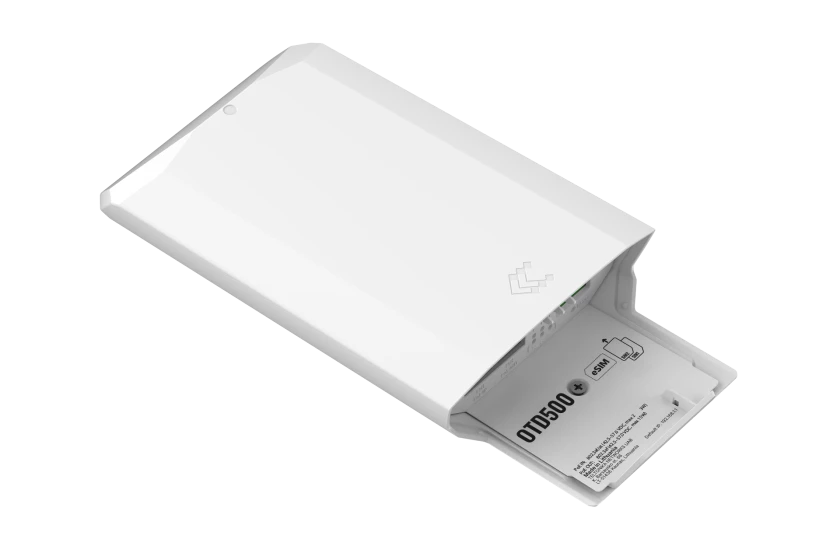

• SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
• Power RJ45, PoE In, 42.5 – 57.0 VDC
• Antennas 4 x internal antennas
• Antennas specifications 4 x 617 – 960 / 1695 – 2690 / 3300 – 4200 / 4200 – 5000MHz, 50 Ω, VSWR <3.5, gain <4.9 dBi, omnidirectional
• Reset Reboot/User default reset/Factory reset button

• Casing material Plastic (PC+ASA)
• Dimensions (W x H x D) 110 x 49.30 x 235 mm
• Weight 385 g

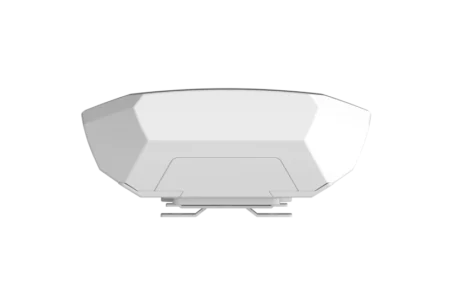

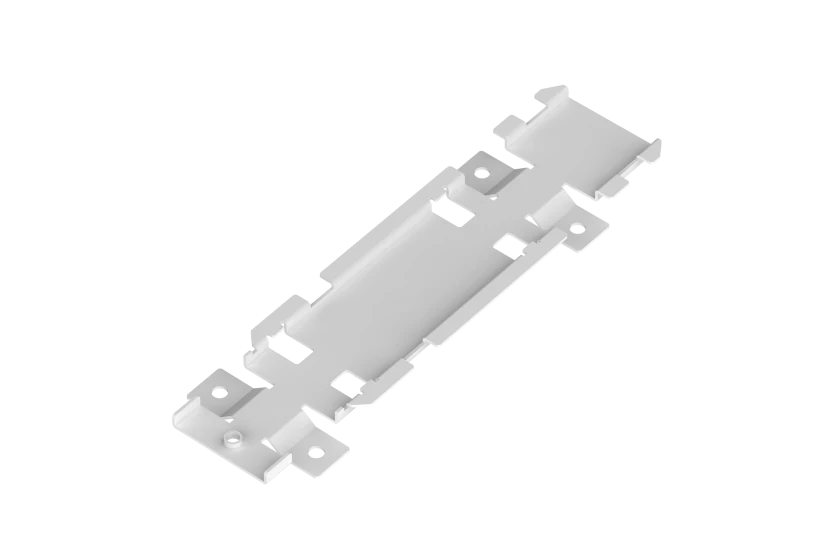

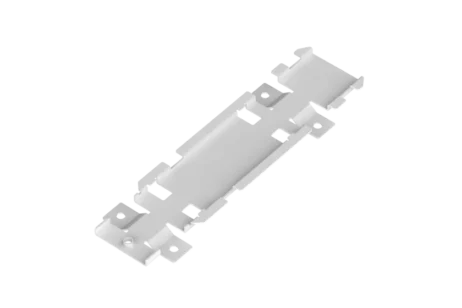

• Mounting options Mounting bracket (for vertical flat surface or pole mounting)

• Operating temperature -40 °C to 55 °C
• Operating humidity 10% to 90% non-condensing
• Ingress Protection Rating IP55

Regulatory & Type Approvals

• Regulatory CE, UKCA, RCM, CB, EAC, UCRF, WEEE

• Standards EN 55032:2015 + A11:2020 + A1:2020; EN 55035:2017 + A11:2020; EN IEC 61000-3-2: 2019 + A1:2021; EN 61000-3-3: 2013 + A1:2019 + A2:2021; EN 301 489-1 V2.2.3; EN 301 489-52 V1.2.1
• ESD EN 61000-4-2:2009
• Radiated Immunity EN IEC 61000-4-3:2020
• EFT EN 61000-4-4:2012
• Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
• CS EN 61000-4-6:2014
• DIP EN 61000-4-11:2020

• Standards
  • EN 301 908-1 V13.1.1
  • EN 301 908-2 V13.1.1
  • EN 301 908-13 V13.1.1
  • EN 301 908-25 V15.1.1_15.0.6

• Standards
  • CE: EN IEC 62368-1:2020 + A11:2020, EN 62311:2020
  • RCM: AS/NZS 62368.1:2022
  • CB: IEC 62368-1:2018
