Lýsing

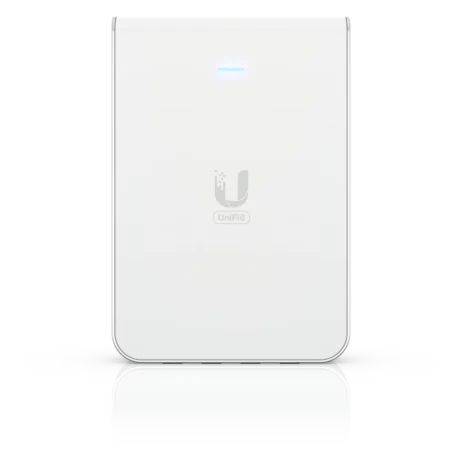

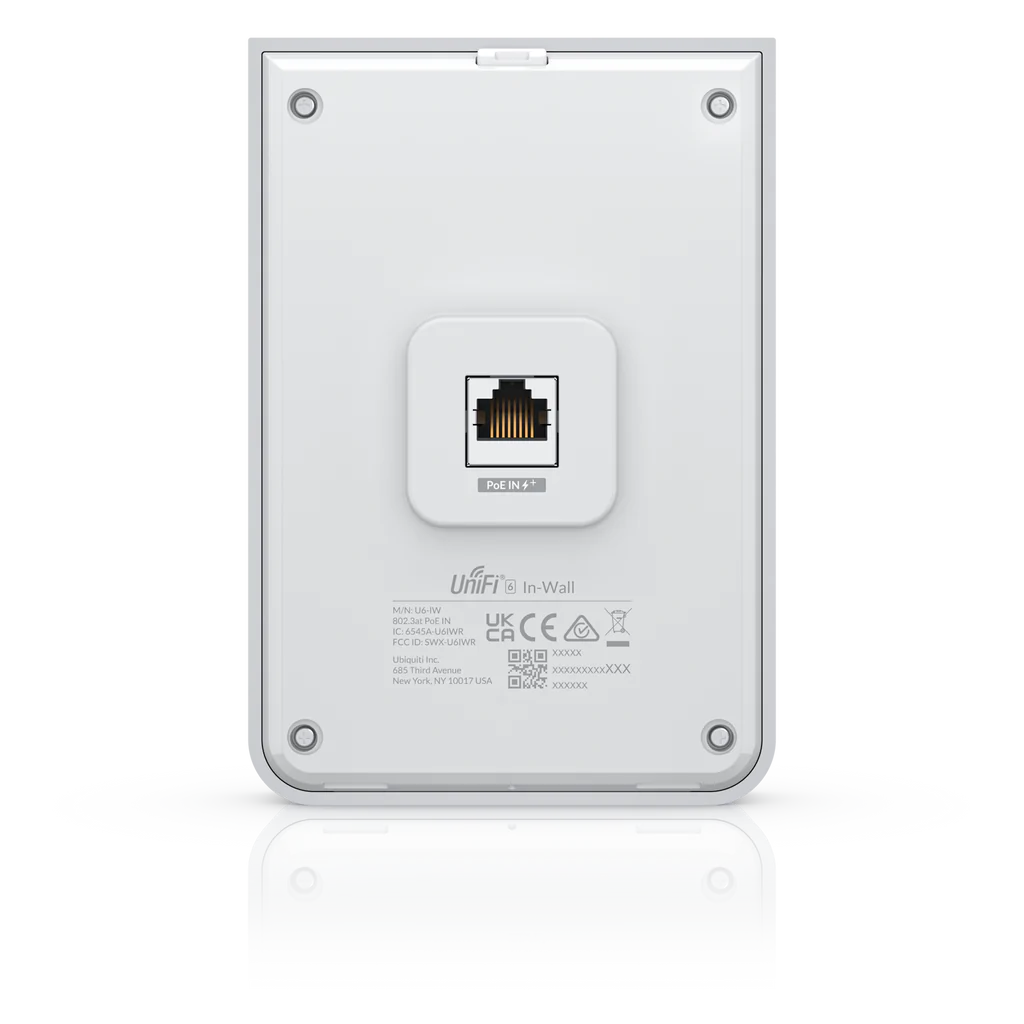

Wall-mounted WiFi 6 access point with a 300-client capacity and a built-in Gigabit, PoE switch.
The UniFi6 In-Wall (U6 IW) is a dual-band, wall-mounted access point with (4) GbE RJ45 ports that brings plug-and-play WiFi 6 to your home or office. One of the U6 IW’s ports also supports PoE output so you can connect and power an Ethernet device. With its 2.4 and 5 GHz WiFi 6 bands, the U6 IW offers an aggregate, over-the-air throughput rate of 5.3 Gbps, which can support over 300 clients. The U6 IW is also Bluetooth-compatible so it can be set up in minutes and managed from anywhere via the UniFi Network web application or mobile app.
Features:
- High-efficiency, four-stream WiFi 6 technology
- 5 GHz WiFi 6 band (4×4 MU-MIMO and OFDMA)
- 2.4 GHz WiFi 6 band (2×2 MU-MIMO)
- (4) GbE RJ45 ports, including one that supports PoE output
- 300+ client capacity
- Simple, Bluetooth-powered setup via the UniFi Network web application or mobile app
Managed with UniFi Network application: Version 6.4.52 and later
| Mechanical | |
|---|---|
| Dimensions | 139.66 x 96 x 31.19 mm (5.5 x 3.78 x 1.28″) |
| Weight | 460 g (1.01 lb) |
| Enclosure materials | Plastic, aluminum |
| Mount material | Aluminum |
| Hardware | |
| Processor specs | Dual-Core® Cortex® A53 at 1 GHz |
| Memory information | 1 GB |
| Management interfaces | Ethernet Bluetooth |
| Networking interfaces | (1) Data-in: 1GbE RJ45 port (4) Data-out: 1GbE RJ45 ports |
| PoE interfaces | (1) PoE in (PoE output not used) (1) PoE out (requires a PoE+ switch) |
| Button | Factory reset |
| LED* | White/blue *Due to chip supply shortages, the U6 AP’s LED has been limited to only white and blue color modes. |
| Power method | PoE |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (optional) |
| Max. power consumption | Excluding PoE output: 13.5W |
| Max PoE wattage per port by PSE | 15.4W* *Requires a PoE+ switch |
| Voltage range PoE mode | 44 to 57VDC |
| Max. TX power 2.4 GHz 5 GHz |
22 dBm 26 dBm |
| MIMO 2.4 GHz 5 GHz |
2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) |
| Throughput rate 2.4 GHz 5 GHz |
573.5 Mbps 4.8 Gbps |
| Antenna gain 2.4 GHz 5 GHz |
5 dBi 5.9 dBi |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 – 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Zero-wait DFS | Yes |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) |
