WiFi 7 with 6 GHz support
6 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink

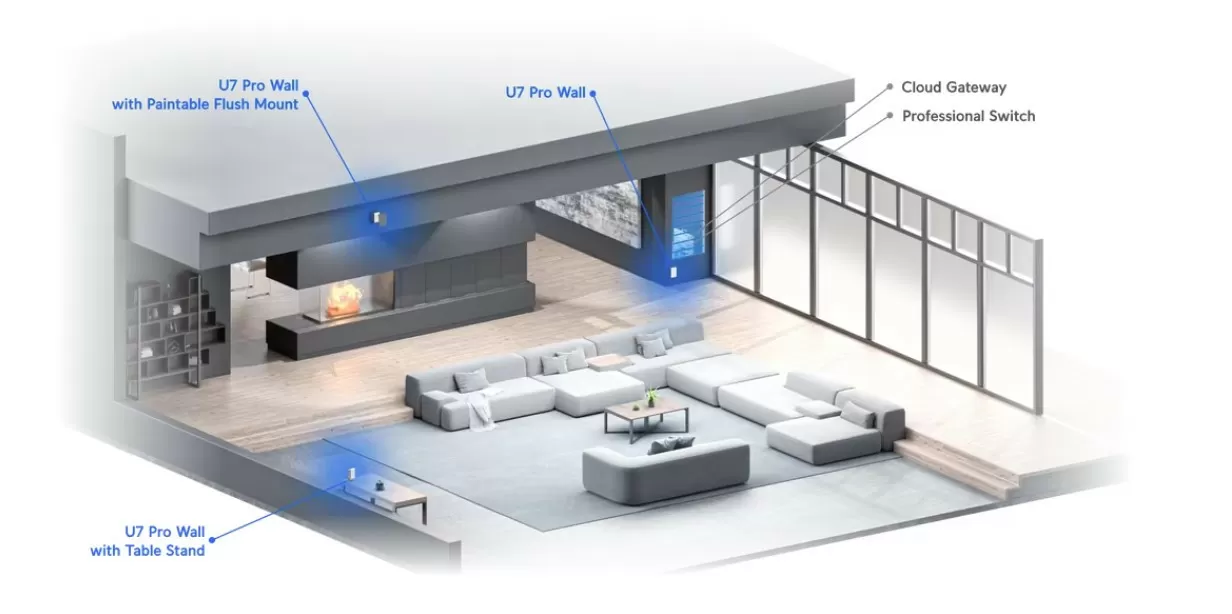

Versatile deployment with optional Flush Mount and Table Stand accessories*
Lýsing
Unleash Next-Gen Wi-Fi 7
The Ubiquiti U7 Pro Wall is a revolutionary wall-mounted access point designed to deliver blazing-fast Wi-Fi 7 connectivity to your home. Leveraging cutting-edge Wi-Fi 7 technology with support for the 6 GHz band, it offers exceptional performance, ultra-low latency, and the capacity to handle numerous devices simultaneously. Whether you’re streaming high-definition content, participating in online gaming, or managing a smart home network, the U7 Pro Wall ensures seamless connectivity for all your devices. The access point offers exceptional throughput rates: 688 Mbps on 2.4 GHz, 4324 Mbps on 5 GHz, and a staggering 5764 Mbps on the newly introduced 6 GHz band. This allows you to enjoy unmatched Wi-Fi speeds for even the most demanding applications.
High-Performance Access Point
The U7 Pro Wall boasts impressive technical specifications that contribute to its outstanding performance. It features 6 spatial streams (utilizing MU-MIMO and OFDMA technologies) for efficient data transmission, ensuring smooth streaming, lag-free gaming, and efficient multitasking for all your connected devices. The Ubiquiti U7 Pro Wall is designed to provide extensive wireless coverage, reaching up to 140 square meters in optimal conditions. This makes it suitable for a variety of home layouts, from single-story apartments to larger houses with multiple floors. The access point itself is designed for wall mounting and comes with all the necessary installation hardware.
| Mechanical | ||
|---|---|---|
| Dimensions | 150 x 103 x 36 mm (5.9 x 4.1 x 1.4″) | |
| Weight | 580 g (1.3 lb) | |
| Enclosure material | Polycarbonate, aluminum | |
| Mount material | Aluminum | |
| Hardware | ||
| Networking interface | (1) 1/2.5 GbE RJ45 port | |
| Management interface | Ethernet | |
| Power method | PoE+ | |
| Power supply | UniFi PoE switch | |
| Supported voltage range | 44—57V DC | |
| Max. power consumption | 22W | |
| Max. TX power 2.4 GHz 5 GHz 6 GHz |
22 dBm 26 dBm 23 dBm |
|
| MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
|
| Max. data rate 2.4 GHz 5 GHz 6 GHz |
688 Mbps (BW40) 4.3 Gbps (BW240) 5.7 Gbps (BW320) |
|
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
4 dBi 5 dBi 6 dBi |
|
| LEDs | White/blue | |
| Button | Factory reset | |
| Mounting | Wall (Included) Table stand, flush mount (Optional) |
|
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) | |
| Ambient operating humidity | 5 to 95% noncondensing | |
| Certifications | CE, FCC, IC | |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Concurrent clients | 300+ | |
| Supported Data Rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) | |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) | |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) | |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320) | |
| Application Requirements | ||
| UniFi Network | Version 8.1 and later | |
| UniFi OS | Version 3.2 and later |
