Lýsing

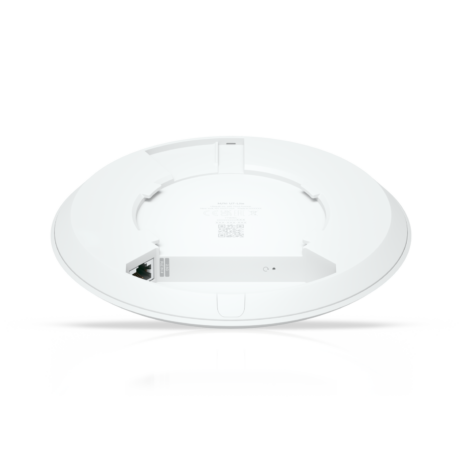

U7 access punktur frá Unifi, hér er WiFi 7 með 2.5 Gpbs tengi inn
- Dimensions Ø171.5 x 33 mm (Ø6.8 x 1.3″)
- WiFi Standard WIFi 7
- Spatial Streams 4
- Coverage Area 115 m² (1,250 ft²)
- Max. Client Count 200+
- Uplink 2.5 GbE
- Mounting Ceiling, Wall (Lite Mount Included)
- Power Method PoE
Performance MIMO
- 5 GHz 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
- 5 GHz 4.3 Gbps (BW240)
- 2.4 GHz 688 Mbps (BW40)
Antenna Gain
- 5 GHz 5 dBi
- 2.4 GHz 4 dBi
Max. TX Power
- 5 GHz 24 dBm
- 2.4 GHz 23 dBm
Max. BSSIDs 8 per Radio
Supported Data Rates
- 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
- 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
- 802.11ac (WiFi 5) 6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
Features
- Wireless Meshing Yes
- Band Steering Yes
- 802.11v BSS Transition Management Yes
- 802.11r Fast Roaming Yes
- 802.11k Radio Resource Management (RRM) Yes
- Advanced Radio Management Yes
- Passpoint (Hotspot 2.0) Yes
Captive Hotspot Portal
- Custom Branding Landing Page Yes
- Voucher Authentication Yes
- Payment-Based Authentication Yes
- External Portal Server Support Yes
- Password Authentication Yes
- Guest Network Isolation Yes
- Private Pre-Shared Key (PPSK) Yes
- WiFi Speed Limiting Yes
- Client Device Isolation Yes
- WiFi Schedules Yes
- RADIUS over TLS (RadSec) Yes
- Dynamic RADIUS-assigned VLANYes
Hardware
- Max. Power Consumption 13W
- Supported Voltage Range 42.5—57V DC
- Networking Interface (1) 2.5 GbE RJ45 port
- Weight 313 g (11 oz)
- Management Ethernet
- Enclosure Material UV-stabilized polycarbonate
- Mount Material UV-stabilized polycarbonate, galvanized steel (SGCC)
- LEDs
- System White/Blue
- Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
- Certifications CE, FCC, IC
- Ambient Operating Temperature -30 to 40° C (-22 to 104° F)
- Ambient Operating Humidity 5 to 95% noncondensing
- Software Application Requirements
-
- UniFi Network Version 9.0.114 and later
- UniFi OS iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
