High-gain 60 GHz radio with a Cassegrain reflector that delivers 1.5+ Gbps throughput with low latency.

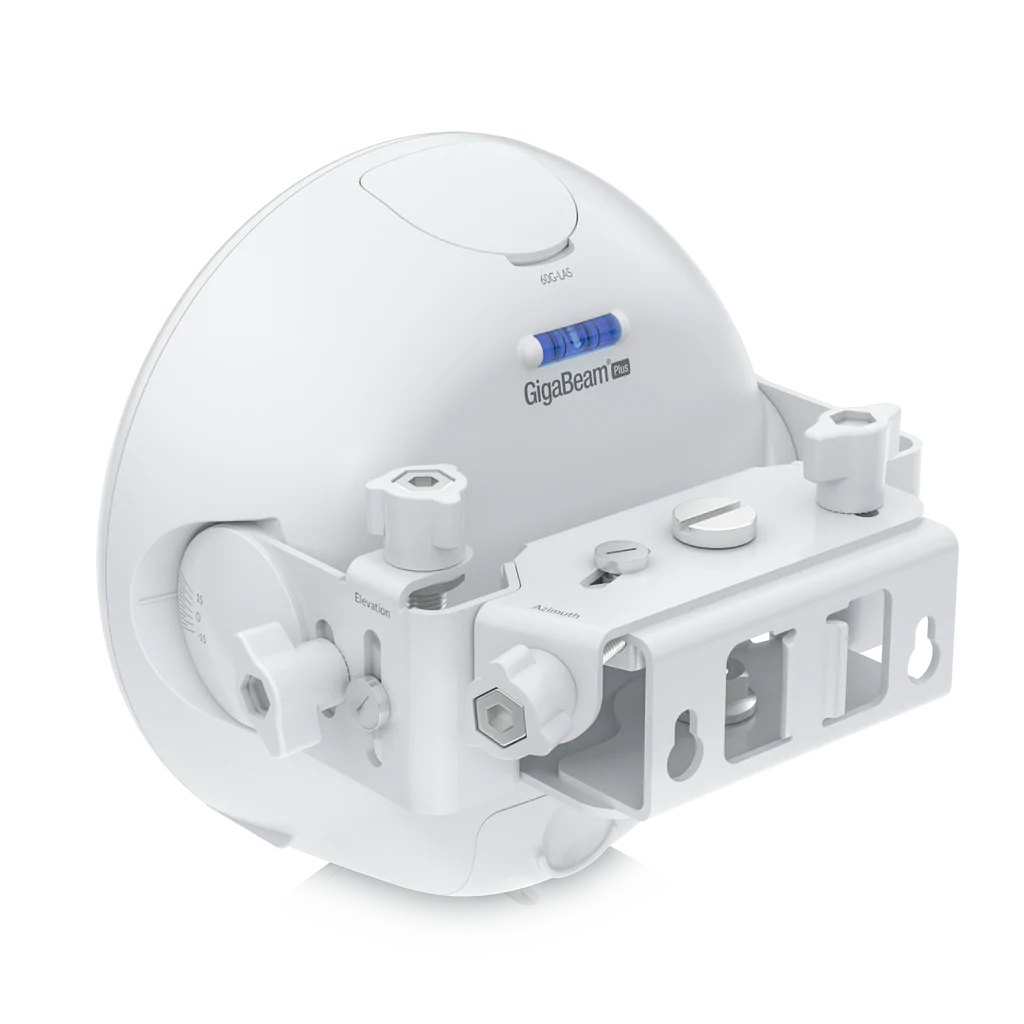

The GigaBeam® Plus (GBE Plus) is a 60 GHz radio that can be used as a high-throughput backhaul/edge point-to-point (PTP) solution in WISP deployments. With its integrated Cassegrain reflector, the GBE Plus delivers 35 dBi antenna gain and can exceed a 1.5 Gbps bidirectional throughput rate with very low latency. Designed for simple deployment and ease of use, the GBE Plus can be set up in minutes and fully managed with the UISP® web application or mobile app.
Features:
- Low-interference 60 GHz radio
- Cassegrain reflector with 35 dBi antenna gain
- 1.5+ Gbps bidirectional, low-latency throughput rate
- Link planning support via ISP Design Center
- Quick, Bluetooth-powered setup via the UISP Mobile App
Nánari upplýsingar hér
Um uppsetningu hér
| Mechanical | |
|---|---|
| Dimensions | Ø155 x 137 mm (Ø6.1 x 5.4″) |
| Weight | 1 kg (2.2 lb) |
| Enclosure materials | UV-resistant polycarbonate, stainless steel |
| Mount material | Metal |
| Wind loading | 50 N at 200 km/h (11.24 lbf at 125 mph) |
| Hardware | |
| Processor | Quad-Core ARM® Cortex® A7 |
| Memory | 256 MB DDR3 |
| Networking interface | 10/100/1,000 Mbps RJ45 port |
| Management interfaces | Ethernet Bluetooth |
| RF connections | Internal |
| Max. power consumption | 11W |
| Power method | Passive PoE (Pairs 4, 5+; 7, 😎 |
| Power supply | 24VDC, 0.5A Gigabit PoE adapter |
| Supported voltage range | 22 to 26VDC |
| ESD/EMP protection | Air/Contact: ± 24kV |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| LEDs | |

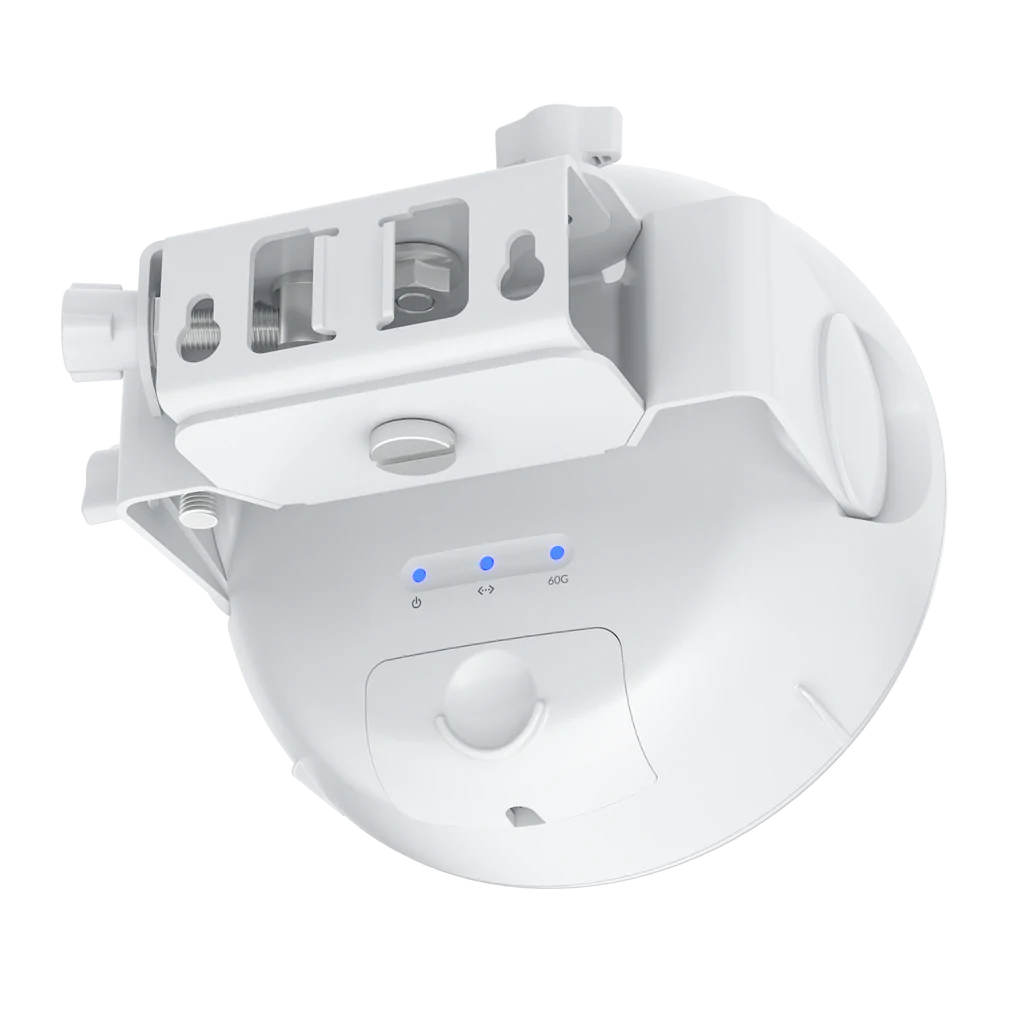

| Power | Flashing white: Booting up White: Not connected to UISP Blue: Connected to UISP |
| Ethernet | Flashing blue: Ethernet traffic detected |
| 60GHz | Blue: Connected |
| Software | |
| OS | airOS® |
| Operating modes | PtP master or station |
| Ubiquiti specific features | Integrated 60 GHz radio, discovery protocol |
| Security | WPA2 AES only |
| Dashboard | Yes |
| Wireless settings | Yes |
| Network settings | Yes |
| System | Yes |
| Services | UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery |
| Tools | Antenna alignment, discovery utility, traceroute, speed test |
| Management interface | UISP application (web/mobile) |
| Minimum software requirements | A modern web browser or an iOS/Android device |
| RF | |
| Operating frequency* | 57,000 – 66,000 MHz * Dependent on regional regulations. |
| Channel bandwidth | 2160 MHz |
| Operating channels | 58320, 60480, 62640, 64800 MHz |
| Beamwidth* | Azimuth: 2° (-3 dB) / 3° (-6 dB) Elevation: 2° (-3 dB) / 3° (-6 dB) *The antenna is only vertically polarized. |
| Bluetooth | 2400 – 2483.5 MHz |
| Electrical downtilt | 0° |
