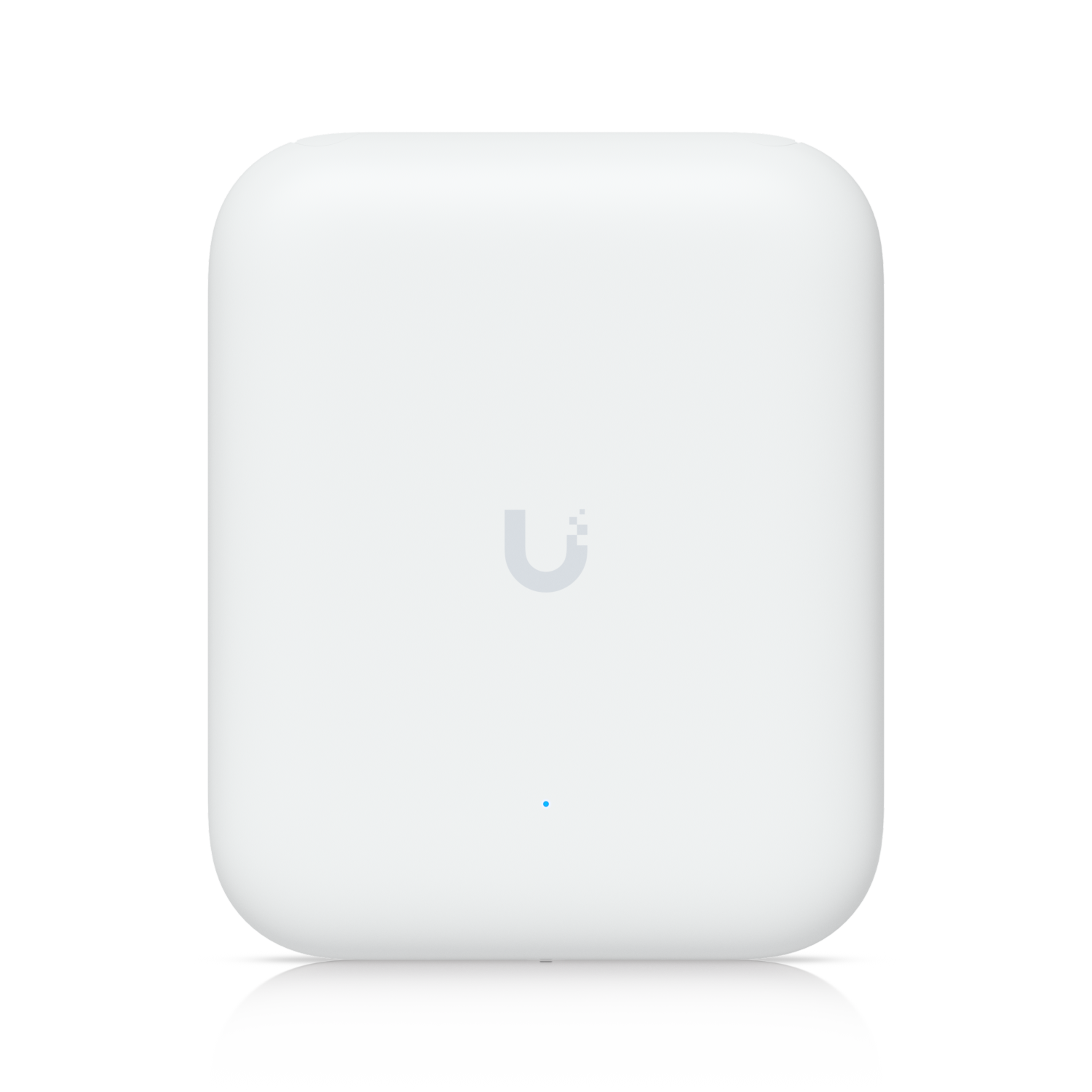

Þráðlaus úti aðgangspunktur WiFi 7, IP67 – UniFi U7-Pro-Outdoor

• Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6″)
• With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8″)

• WiFi 7
• Spatial Streams 6

• 465 m² (5,000 ft²)

• MIMO
  • 5 GHz 4 x 4 (DL/UL MU-MIMO)
  • 2.4 GHz 2 x 2 (DL/UL MU-MIMO)

• 5 GHz 8.6 Gbps (BW240)
• 2.4 GHz 688 Mbps (BW40)

• 5 GHz Directional internal: 11 dBi External omni: 8 dBi
• 2.4 GHz Directional internal: 8 dBi External omni: 6 dBi

• 5 GHz 29 dBm
• 2.4 GHz 23 dBm

Max. BSSIDs 8 per Radio

Supported Data Rates

• 802.11be (WiFi 7) 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
• 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
• 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
• 802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

Features

• Wireless Meshing yes
• Band Steering Yes
• 802.11v BSS Transition Management Yes
• 802.11r Fast Roaming Yes
• 802.11k Radio Resource Management (RRM) Yes
• Advanced Radio Management Yes
• Passpoint (Hotspot 2.0) Yes

Captive Hotspot Portal

• Custom Branding Landing Page Yes
• Voucher Authentication Yes
• Payment-Based Authentication Yes
• External Portal Server Support Yes
• Password Authentication Yes
• Guest Network Isolation Yes
• Private Pre-Shared Key (PPSK) Yes
• WiFi Speed Limiting Yes
• Client Device Isolation Yes
• WiFi Schedules Yes
• RADIUS over TLS (RadSec) Yes
• Dynamic RADIUS-assigned VLAN Yes

Hardware

• Max. Power Consumption 21W
• Supported Voltage Range 42.5—57V DC
• Networking Interface (1) 1/2.5 GbE RJ45 port
• Weight Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb)
• Wind Loading 74.6 N at 200 km/h (16.8 lbf at 125 mph)
• Pole Mount Diameter 1–2.5″ (25–63.5 mm)

Management Ethernet

• System (1) Power: White/Blue (4) Mesh signal: Blue

• CE
• NDAA Compliant Yes

• UniFi Network Version 9.0.114 and later
• UniFi OS iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
