Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Simplex LC UPC connector
Supports single-mode fiber connections up to 10 km*
Lýsing

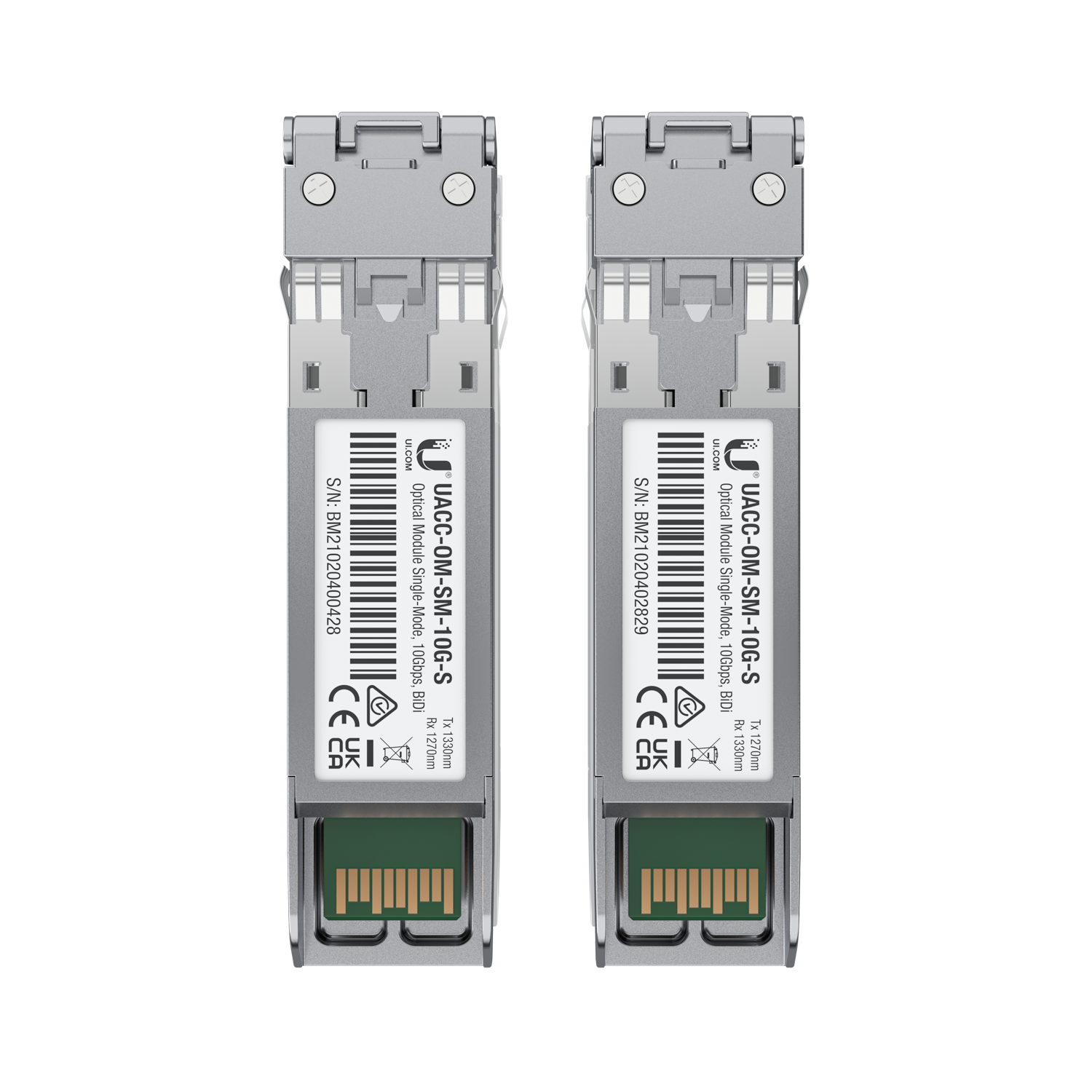

The 10 Gbps Bidirectional Single-Mode Optical Module, model UACC-OM-SM-10G-S-2, manufactured by Ubiquiti, is an advanced optical transceiver designed for high-speed data transmission over single-mode fiber (SMF) optic cables. This module is engineered to support bidirectional data communication at data rates of up to 10 gigabits per second (Gbps) in each direction, offering exceptional performance and reliability for long-distance network applications.
Features:
- 10 Gbps throughput
- Simplex LC connector
- Supports connections up to 10 km*
Technical Specification
| Supported media | Single-mode fiber |
| Connector type | (1) LC |
| BiDi | Yes |

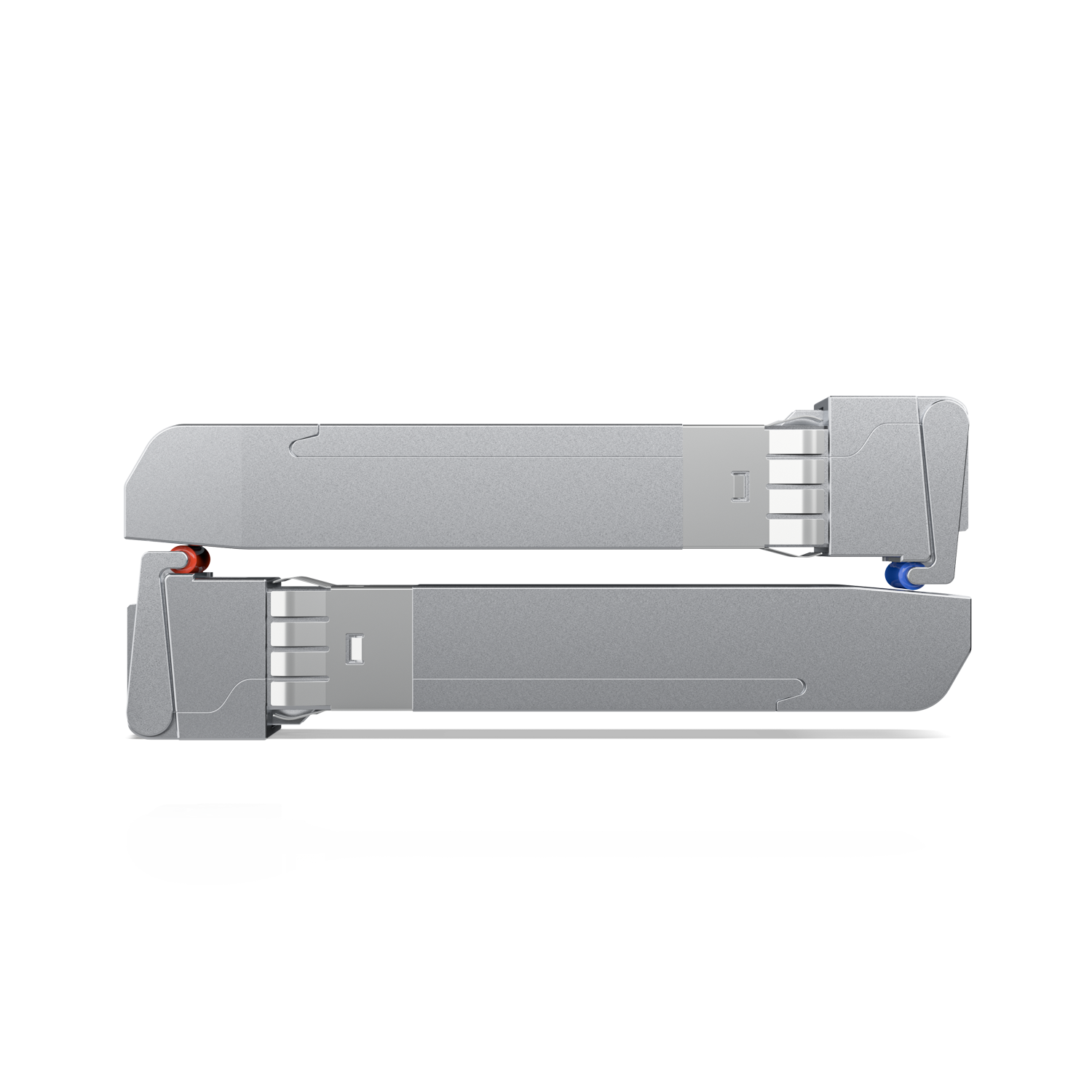

| TX wavelength* | Blue latch: 1270 nm Red latch: 1330 nm *Must be used in pairs (blue latch and red latch). |
| RX wavelength* | Blue latch: 1330 nm Red latch: 1270 nm *Must be used in pairs (blue latch and red latch). |
| Data rate | 10 Gbps |
| Max. power consumption | 1W |
| Cable distance | 10 km |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) |
| Pack options | 2-pack, 20-pack |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
