Lýsing

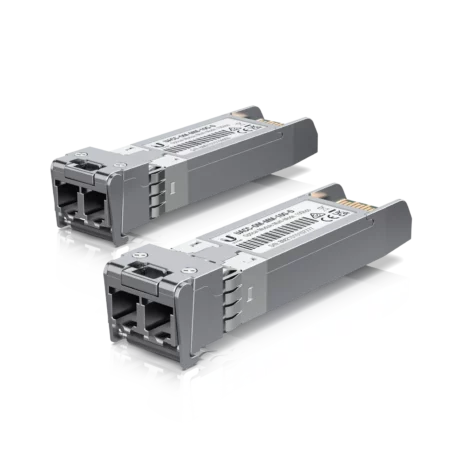

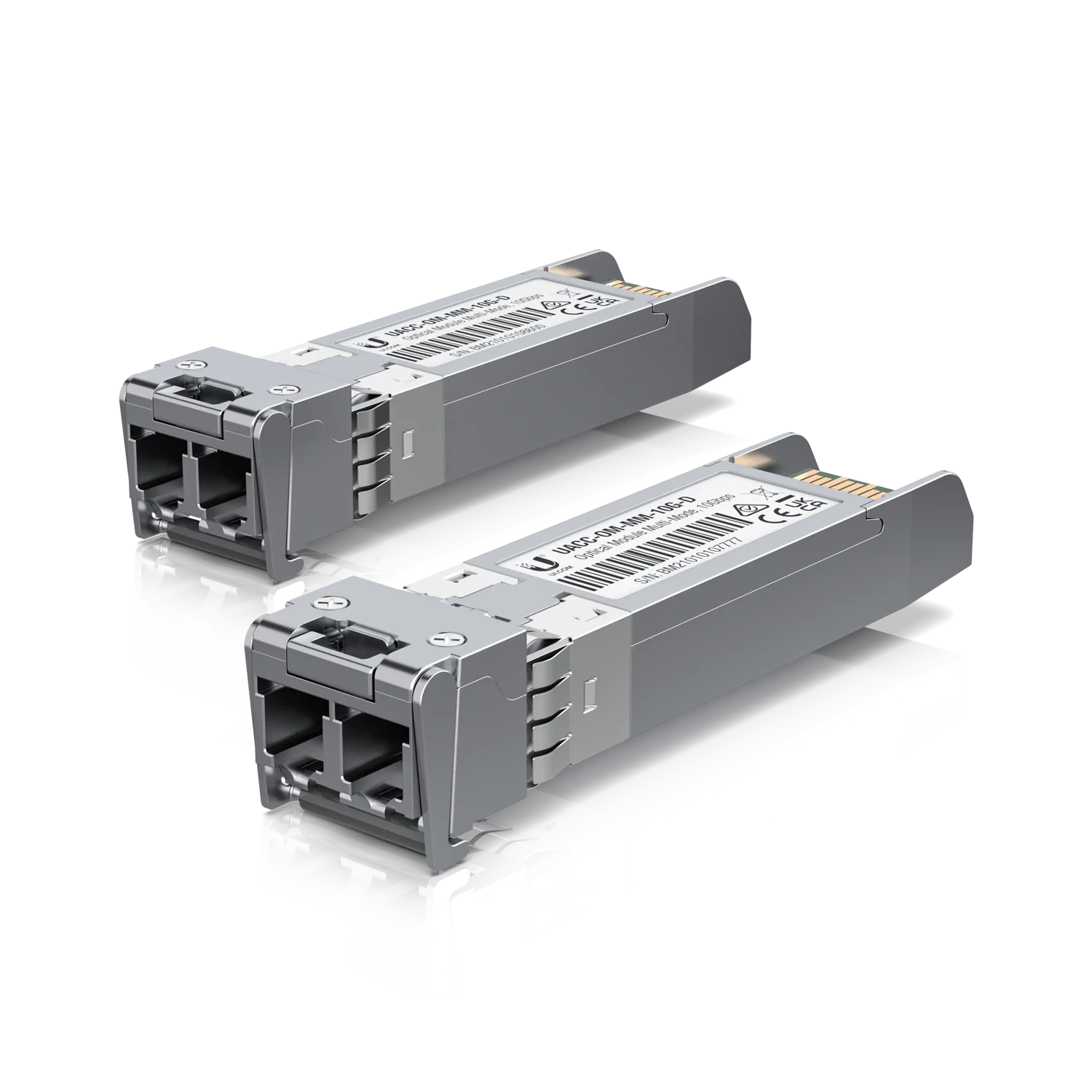

Multi-mode, duplex, fiber transceiver module.
The 10 Gbps Multi-mode Optical Module is a duplex transceiver that delivers up to 10 Gbps speed over distances up to 300 meters.
Features:
- 10 Gbps throughput
- Duplex LC connector
- Supports connections up to 300 m
- Supported media: MM Fiber (Fiber cable is not included)
| UACC-OM-MM-10G-D | |
|---|---|
| Supported Media | Multi-Mode Fiber |
| Connector Type | (2) LC |
| TX Wavelength | Black Latch: 850 nm |
| RX Wavelength | Black Latch: 850 nm |
| Data Rate | 10 Gbps |
| Max. Power Consumption | 0.8W |
| Cable Distance | 300 m |
| Operating Temperature | 0 to 70° C (32 to 158° F) |
| Pack Options | 2-pack, 20-pack |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
