(48) 2.5 GbE PoE+ ports
(4) 10G SFP+ ports
720W total PoE availability
Lýsing
UniFi Switch Enterprise 48 PoE is a reliable manageable 2.5-Gigabit L3 Switch with a switching capacity of 320 Gbps, (48) 2.5-Gigabit LAN ports and four SFP+ (10 Gbps) slots. All Ethernet ports support 802.3af/at PoE-Out with an output power of 30 W/port and total PoE budget of 720 W. In addition to the standard equipment, the switch also has a 1.3″ touch screen for providing information about the system, temperature, port statistics, PoE power supply and much more. The switch can be powered via standard 230 V but also via UniFi SmartPower RPS, which rather backs up power in the event of an internal power failure.

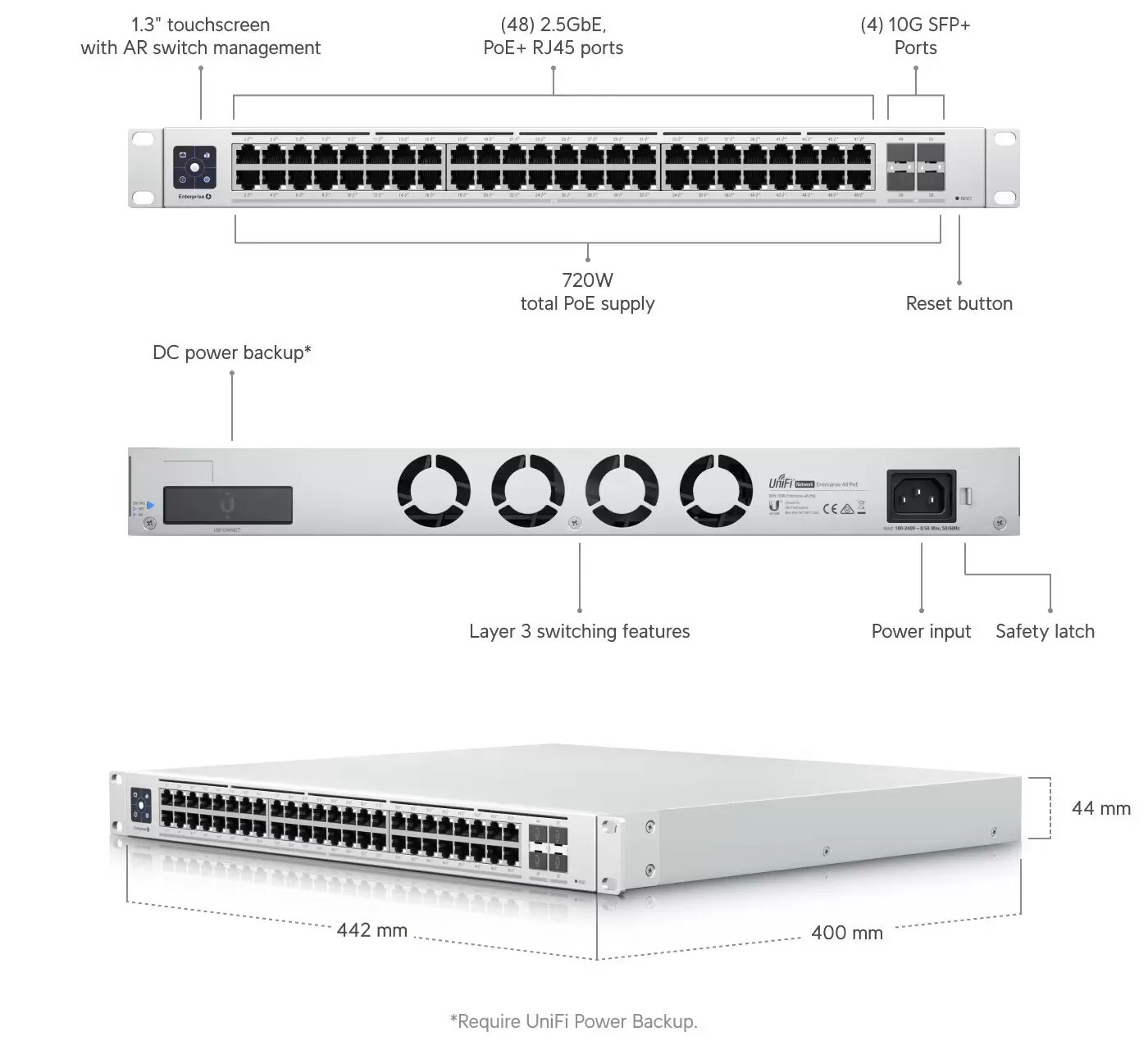

Placement scheme
Works with the UniFi Network Application
USW-Enterprise-48-PoE does not have web management but is managed centrally by UniFi Network Application with support for the UniFi mobile application. It offers an extensive set of advanced switching protocols and L2 functions, including operating mode (switching, mirroring or aggregation) per port. UniFi Network Applicationand mobile applications allow administrators to configure and monitor virtually all graphical user interface functions from anywhere.

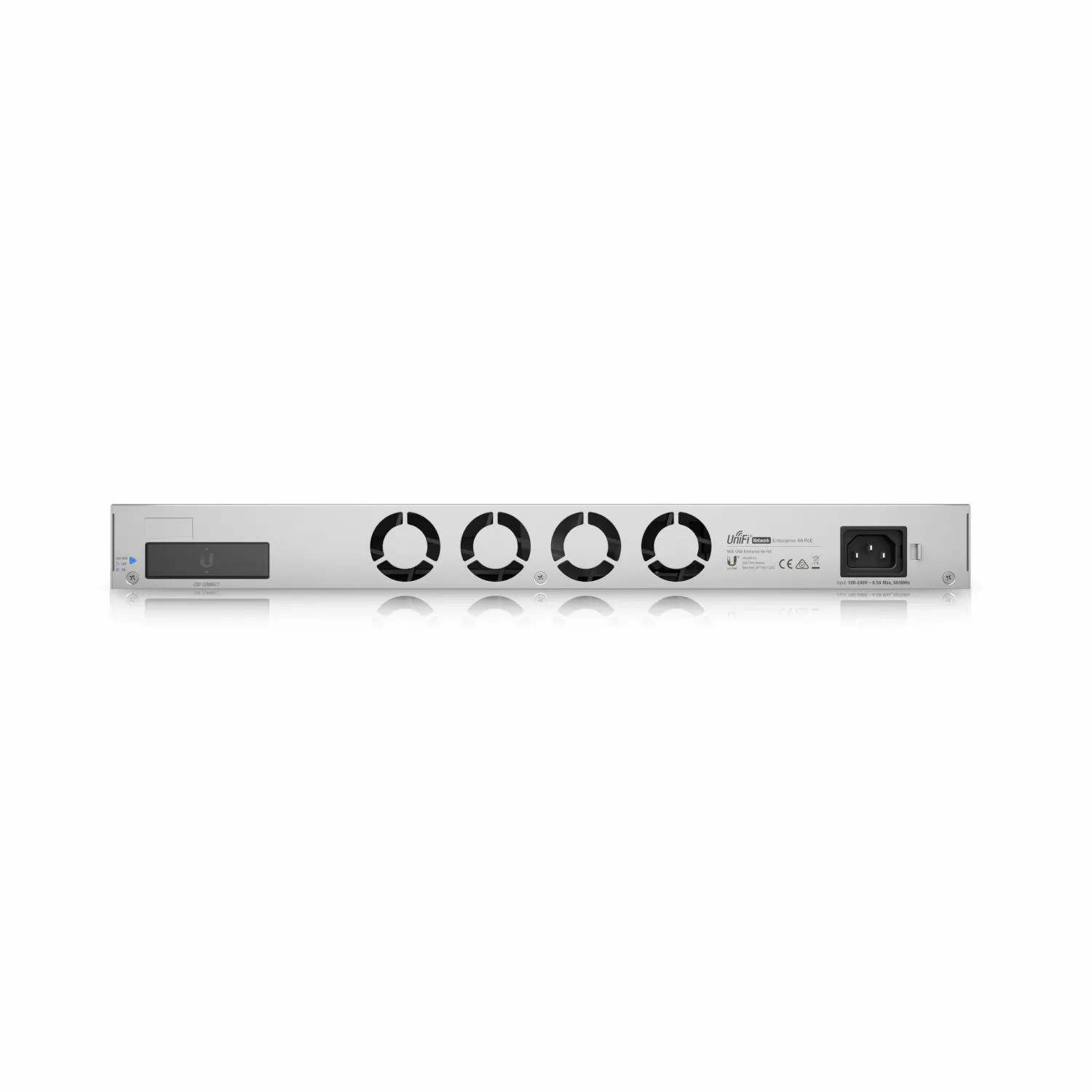

Redundant power
This generation of switches supports redundant power supply via a special connector to the UniFi SmartPower unit in the event of a failure of the primary power supply at the switch.
