2K (4MP) video resolution
2x optical zoom
20 m (65 ft) IR night vision
AI event detections and automatic person tracking
Record audio with an integrated microphone
Integrated LED spotlight for color night vision
Connect and power using PoE+
Weatherproof (outdoor exposed)
Lýsing
Enhanced Security

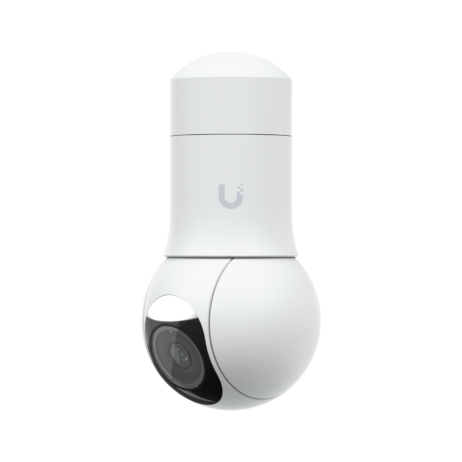

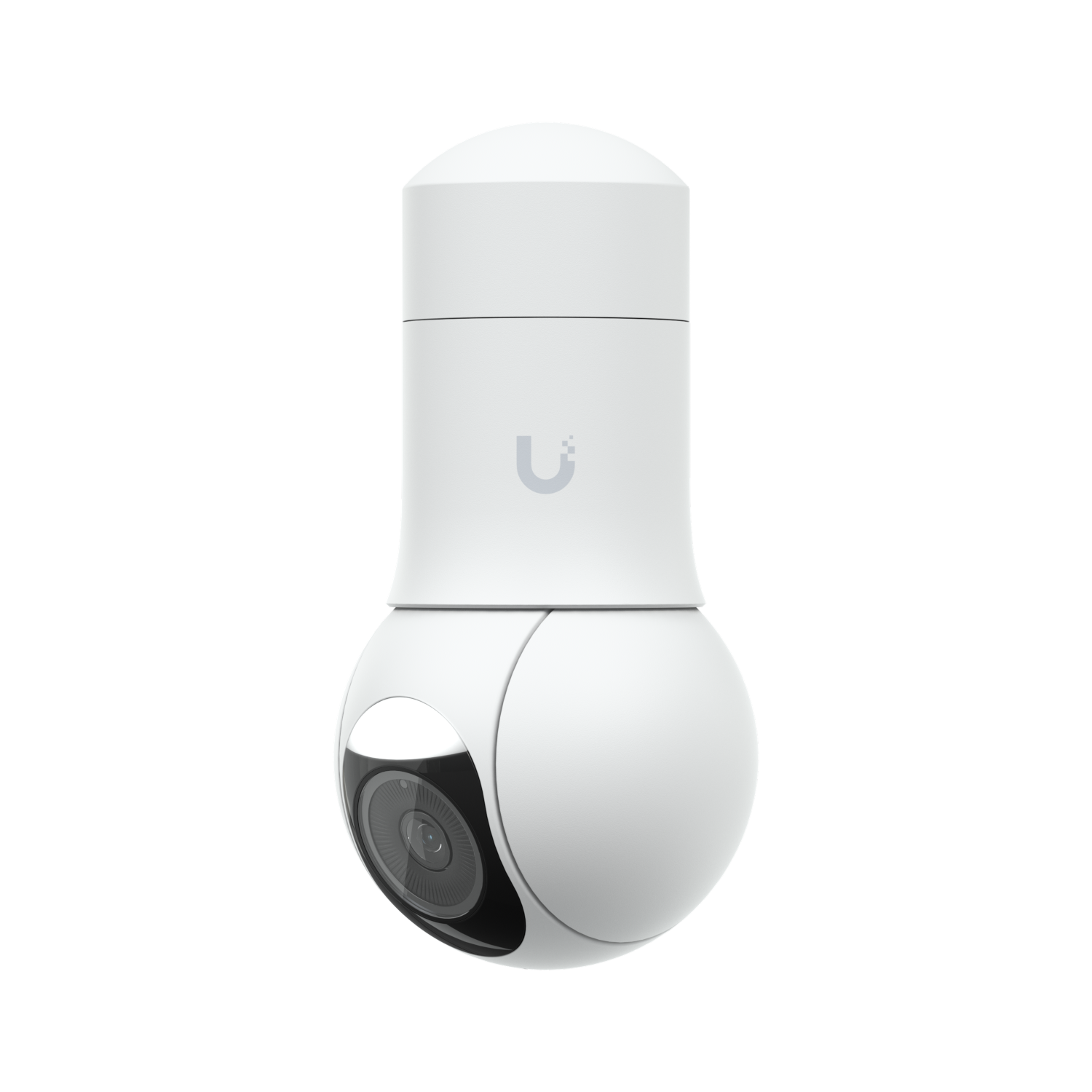

The Ubiquiti UVC-G5-PTZ is a compact and versatile security camera designed to deliver exceptional monitoring capabilities for various indoor and outdoor environments. This all-weather camera features ultra-low latency pan-tilt-zoom (PTZ) control, allowing you to remotely adjust its viewing angle for comprehensive surveillance. With its 2K (4MP) resolution, 2x optical zoom, and powerful night vision capabilities, the UVC-G5-PTZ captures clear and detailed visuals, enabling you to stay vigilant and identify potential security threats.
Superior Image Quality
The UVC-G5-PTZ boasts exceptional image quality with a 5MP 1/2.7″ CMOS sensor, capturing crisp and clear visuals in resolutions up to 2688 x 1512 (4MP). This ensures you can effectively identify people, objects, and details even in challenging lighting conditions. It features integrated IR illuminators for clear black and white night vision at distances of up to 20 meters (65 feet). Additionally, the camera incorporates a built-in LED spotlight that provides color night vision, offering improved clarity in low-light environments. The UVC-G5-PTZ also integrates AI event detections and automatic person tracking, allowing it to intelligently focus on relevant activity and minimize false alarms.
Flexible Mounting and Power Options

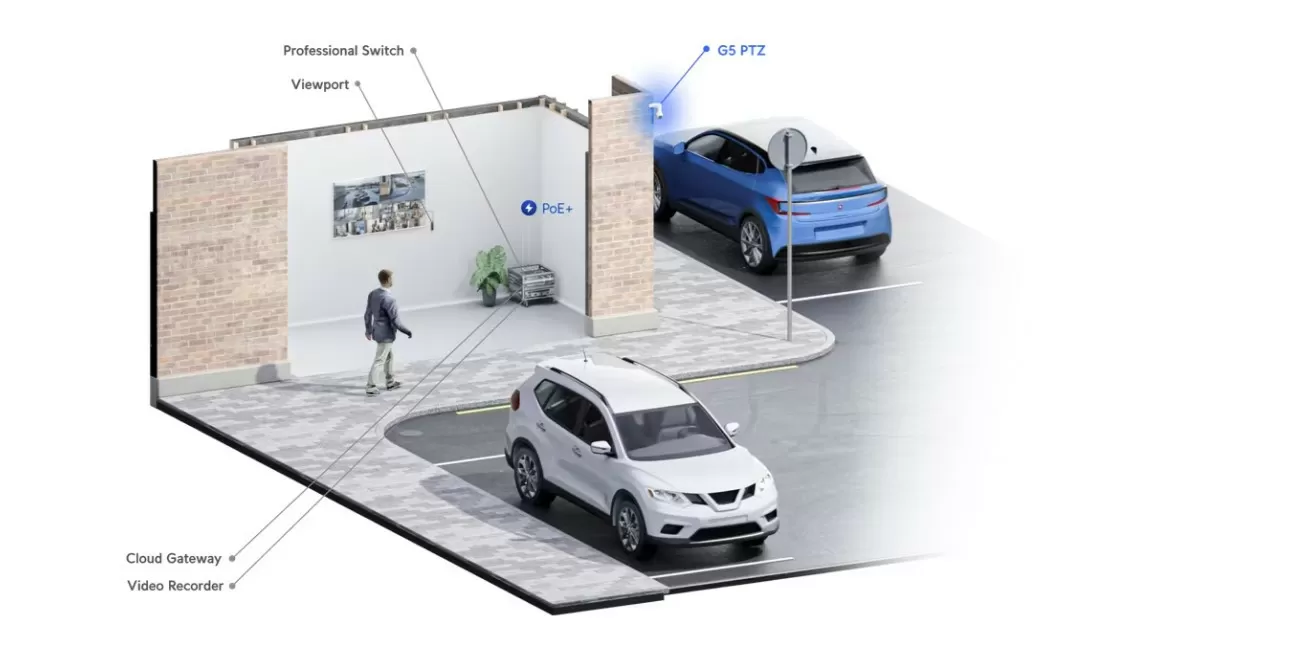

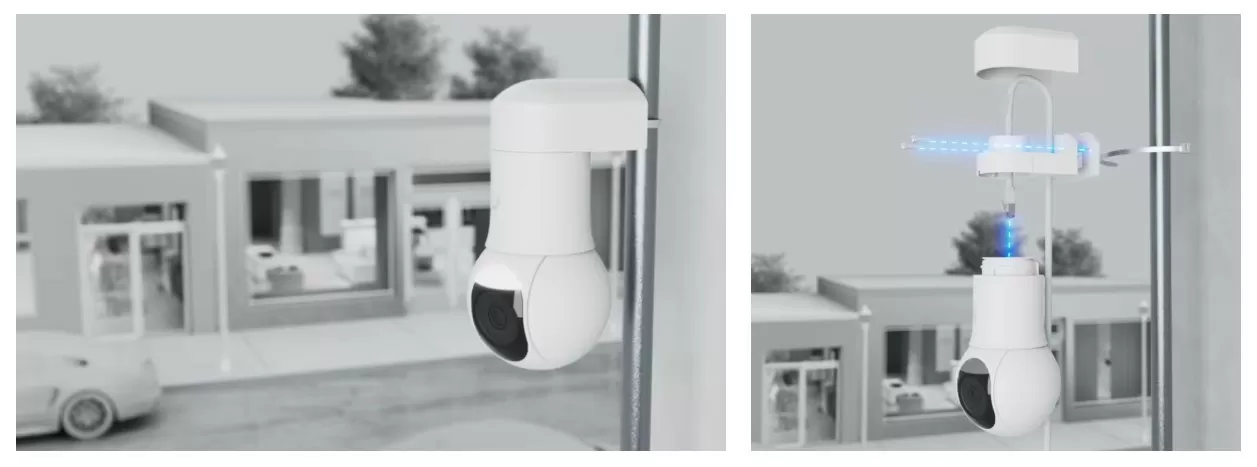

The Ubiquiti UVC-G5-PTZ offers a variety of mounting options to suit your specific needs. The camera comes with wall and pole mount kits included, providing a convenient starting point for your installation. Additionally, Ubiquiti offers a range of optional mounting accessories (sold separately) including conduit adapter, surface, in-ceiling, pendant, and corner mount options, ensuring flexibility for various deployment scenarios. The UVC-G5-PTZ is powered using PoE+, eliminating the need for separate power supplies and simplifying installation.
Durable Design for Reliable Operation
The Ubiquiti UVC-G5-PTZ is built to withstand harsh weather conditions. Its weatherproof IP66-rated enclosure protects it from dust, rain, snow, and other environmental factors. It also boasts an IK04 impact resistance rating, ensuring it can endure physical impact. The camera seamlessly integrates with the UniFi Protect software, offering centralized management, recording capabilities, and remote access to your surveillance system. With its compact form factor, versatile mounting options, and ruggedized design, the UVC-G5-PTZ is an ideal solution for a wide range of security applications.
| Mechanical | |
|---|---|
| Dimensions | Without mount: Ø90 x 152.5 mm (Ø3.5 x 6″) With mount: 90 x 94 x 179.5 mm (3.5 x 3.7 x 7″) |
| Weight | Without mount: 580 g (1.3 lb) With mount: 650 g (1.4 lb) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Mount material | Wall mount: polycarbonate Pole mount: aluminum alloy |
| Pole mount diameter | 38–50 mm (1.5–2″) on pipe outer diameter |
| Weatherproofing | IP66 |
| Resistance | IK04 |
| Optics | |
| Sensor | 5MP 1/2.7″ CMOS |
| Lens | F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4 |
| View angle | 16:9 Wide: H: 99.7°, V: 51.9°, D: 121° 16:9 Tele: H: 45.5°, V: 25.4°, D: 52.4° |
| Night mode | Built-in IR & white LED illumination with IR cut filter |
| IR distance | 20 m (65 ft) |
| IR limitation | Keep distance from top/side ≥60 cm (2 ft) |
| Video | |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Max. frame rate | 30 FPS |
| System | |

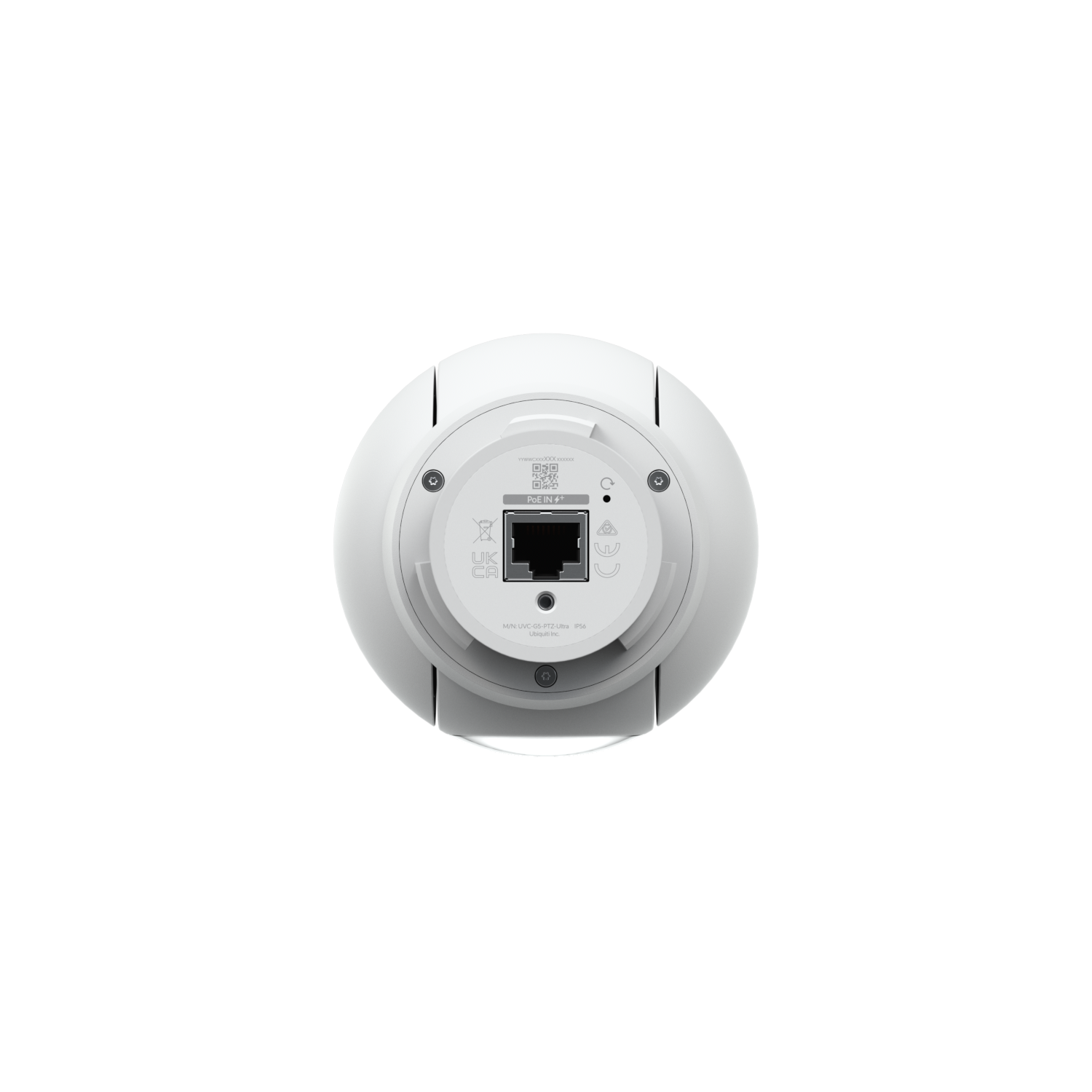

| Networking interface | 10/100 MbE RJ45 port |
| Max. power consumption | 14W |
| Power method | PoE+ |
| Supported voltage range | 37–57V DC |
| LEDs | R/G/B/W: link, activity Floodlight: 400 lm |
| Button | Factory reset |
| Mounting | Wall, pole mount (Included) Conduit adapter, surface, in-ceiling, pendant, corner mount (Optional, sold separately) |
| Ambient operating temperature | -30 to 45º C (-22 to 113º F) |
| Ambient operating humidity | 0 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
