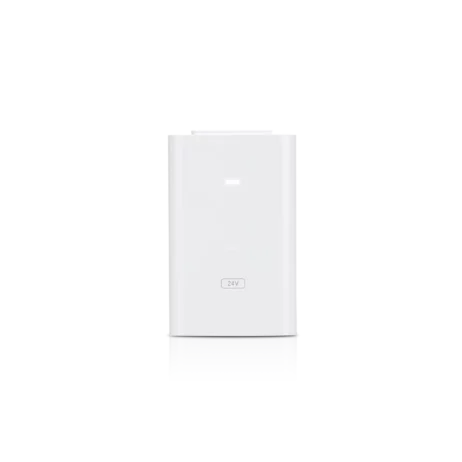

UniFi PoE spennugjafi – PoE-24V-07W-G-WH

2.190 kr.

Láttu aðra vita

Lýsing

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

      • Surge protection
      • Clamping protection
      • Maximum surge discharge
      • Peak pulse current
      • AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.

Nánari upplýsingar

POE-24-7W-G-WH (Low-Power)
Dimensions 72 x 45 x 33 mm (2.8 x 1.8 x 1.3″)
Weight 72.1g (2.5 oz)
Output voltage 24V DC @ 0.3A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability Yes
Reset button Yes
Rated voltage 100-240V AC @ 50/60Hz
Input current 0.3A @ 120V AC, 0.2A @240V AC
Inrush current <40A peak @ 120V AC, <70A peak @ 230V AC
Efficiency 80+%
Output ripple 1% Max.
Switching frequency 65 kHz
Line regulation ≤ 3%
Load regulation ≤ 5%
2-pair powering Pins 4, 5 (+) and pins 7, 8 (-)
4-pair powering
Storage temperature -30 to 70°C (-22 to 158°F)
Ambient operating temperature 0 to 40°C (32 to 104°F)
Operating humidity 35 to 95% noncondensing
AC connector IEC-320 C6
Data IN / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 μs) power
Peak pulse current 36A (10/1000 μs) data
Shunt capacitance <5 pf data
Response time <1 ns
Certifications CE, FCC, IC, UL
