Compact adapter capable of delivering 15W of PoE to 802.3af devices.

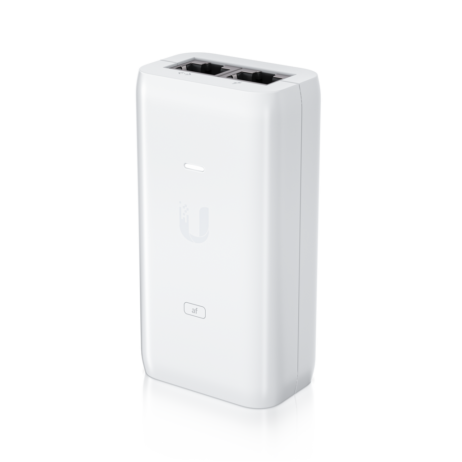

The 802.3af PoE Injector (U PoE AF) is designed to power 802.3af PoE devices. The U PoE AF delivers up to 15W of PoE that can be used to power the Access Point U6 Lite and other 802.3af devices. It can also provide enhanced protection against electrostatic discharge (ESD).
Features:
-
- Delivers up to 15W of 802.3af PoE
- Compatible with all 802.3af PoE devices
- Surge, peak pulse, and overcurrent protection
- AC cable with earth ground
- Dynamic LED light that indicates device and current status
- Compatible with TOUGHCable™ wiring and connectors for optimal ESD protection
| Mechanical | |
|---|---|
| Dimensions | 86 x 46 x 33 mm (3.39 x 1.81 x 1.30″) |
| Weight | 100 g (3.53 oz) |
| Output Voltage | 48VDC @ 0.32A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | No |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 500mA @ 90VAC |
| Inrush Current | <100A Peak @ 25°C |
| Efficiency | 84.25+% |
| Output Ripple | 200mV p-p |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | – |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 5 to 90% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
