Requires a UniFi Gateway Console or Gateway
Bring your own nano-SIM for LTE data
Flexible mounting
(1) GbE PoE port*
Powered using PoE
RP-SMA connector for optional external antenna

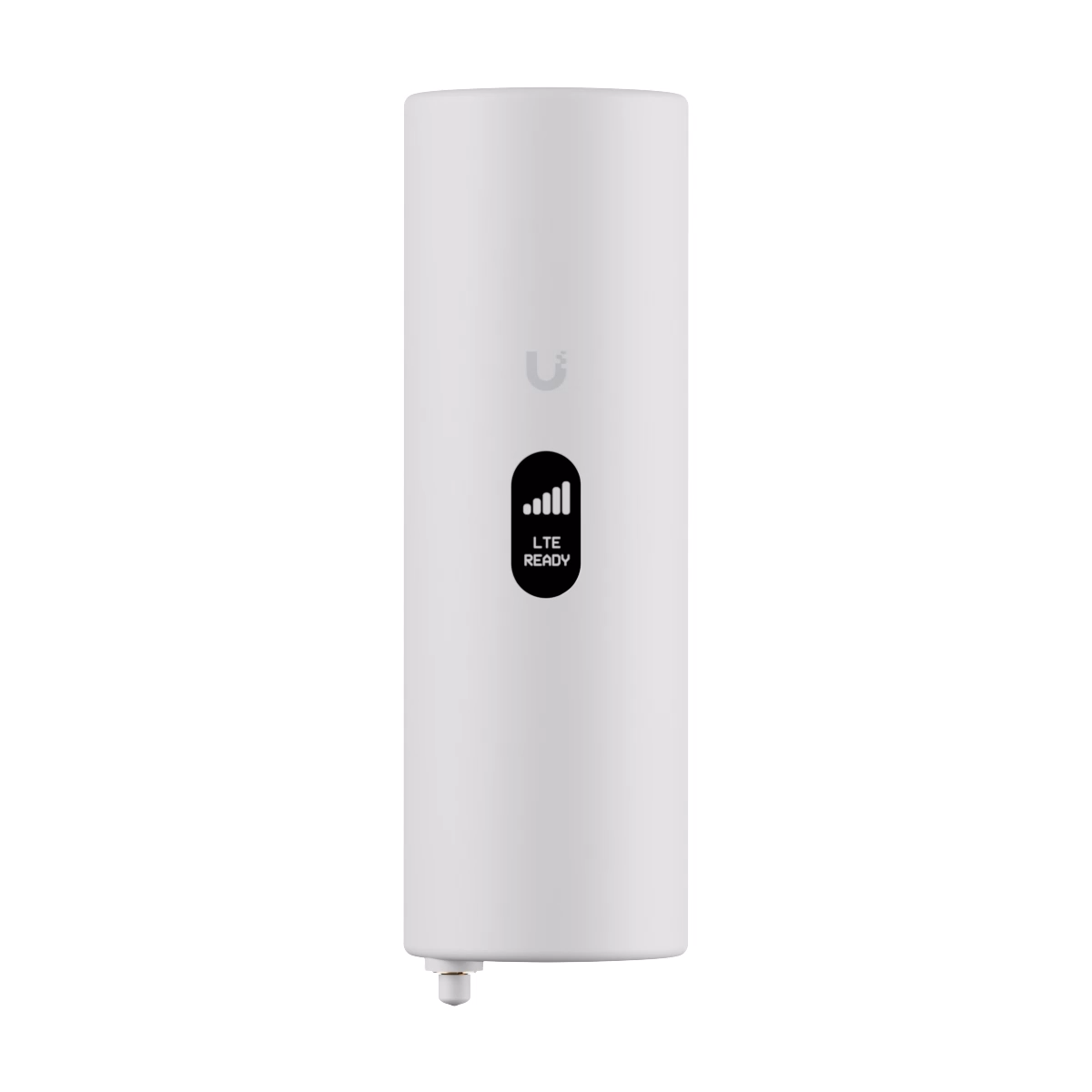

1.54″ status display
Lýsing
LTE beinir frá Unifi. u-LTE-Pro passar beint inní kerfi Unifi, sama flotta uppsetningin og annað sem þið þekkið svo vel. Þessi nær 4G (LTE) – Cat 4 allt að 150 Mbps niður og 50 Mbps upp. Hann er öruggur LTE router fyrir aðstæður sem að þarf að hafa örugga tengingu. Hann tengir 4G sem varaleið af öryggi. Notast t.d. með UDM, UDM-SE, UDM-pro og UDR
| Mechanical | |
|---|---|
| Dimensions | 66 x 202 x 32 mm (2.6 x 8 x 1.3″) |
| Weight | Without mount: 223 g (7.9 oz) With mount: 336 g (11.9 oz) |
| Enclosure material | Polycarbonate |
| Mount materials | Stand: aluminum Wall mount: polycarbonate |
| Hardware | |
| Processor | 74 Kc MIPS processor at 775 MHz |
| Memory | 128 MB DDR2 |
| Management interface | Ethernet |
| Networking interface | (2) GbE RJ45 ports LTE Category 4 radio |
| SIM | nano-SIM |
| LTE bands | Bands 1, 3, 7, 8, 20, 28 |
| Power method | PoE+, Passive PoE (48V) |
| Power Supply | UniFi PoE switch 48V, 0.5A PoE adapter |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 8.5W |
| Max. TX power | 19 dBm |
| MIMO | 2 x 2 LTE Category 4 |
| Throughput speeds | Download 150 Mbps / Upload 50 Mbps * Speed and coverage depend on location and network performance. |
| LCM display | 1.54″ screen |
| Button | Factory reset |
| Mounting | Wall mount or foot stand (included) |
| ESD/EMP protection | Air/Contact: ± 24 kV |
| Operating temperature | -10 to 60° C (-14 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE |
